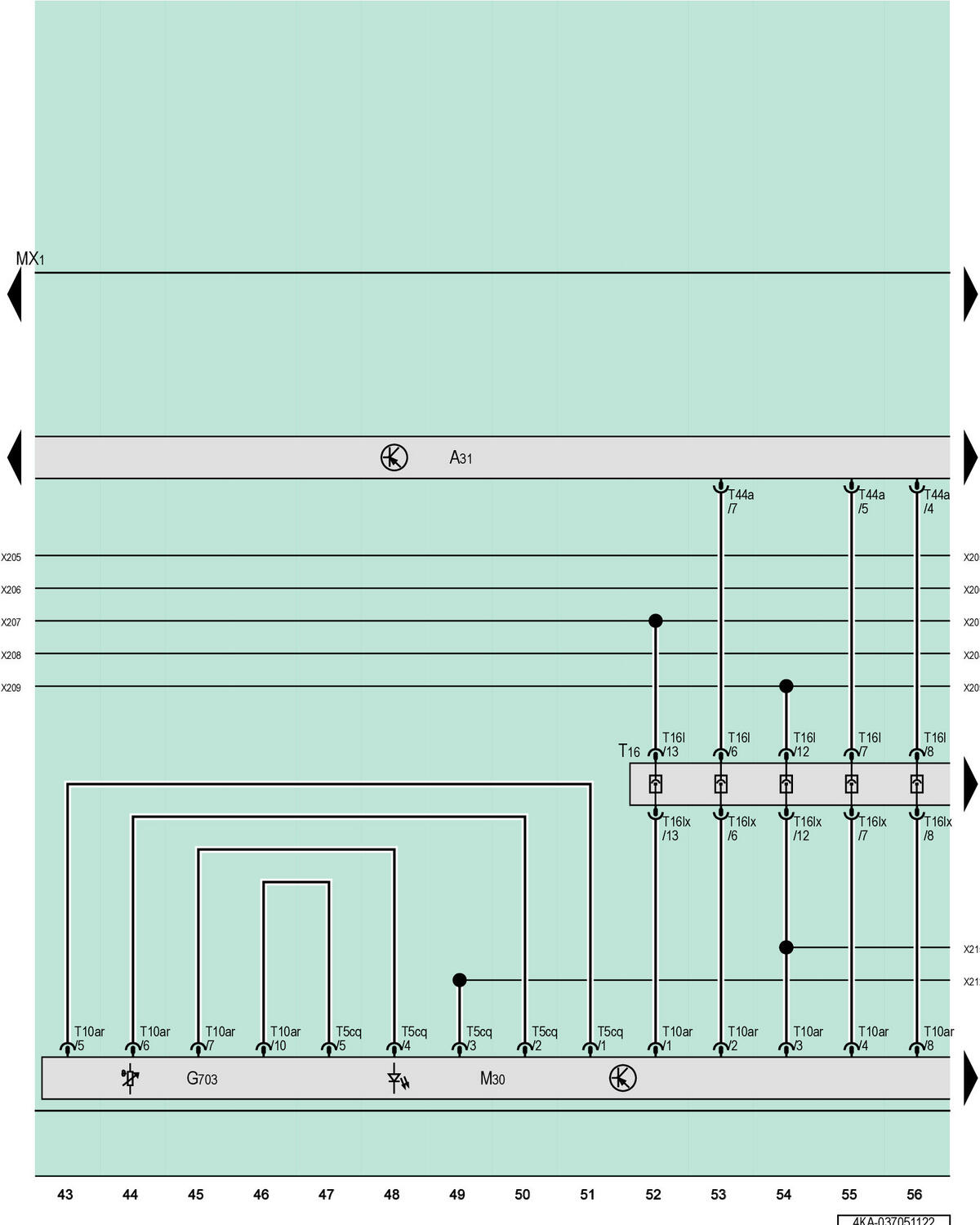

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G703

Left Headlamp Temperature Sensor 2

MX1

Left Front Headlamp

M30

Left High Beam Headlamp Bulb

T10ar

10-Pin Connector

T16

16-Pin Connector, In the Left Headlamp

T5cq

5-Pin Connector

T16l

16-Pin Connector

T16lx

16-Pin Connector

T44a

44-Pin Connector
