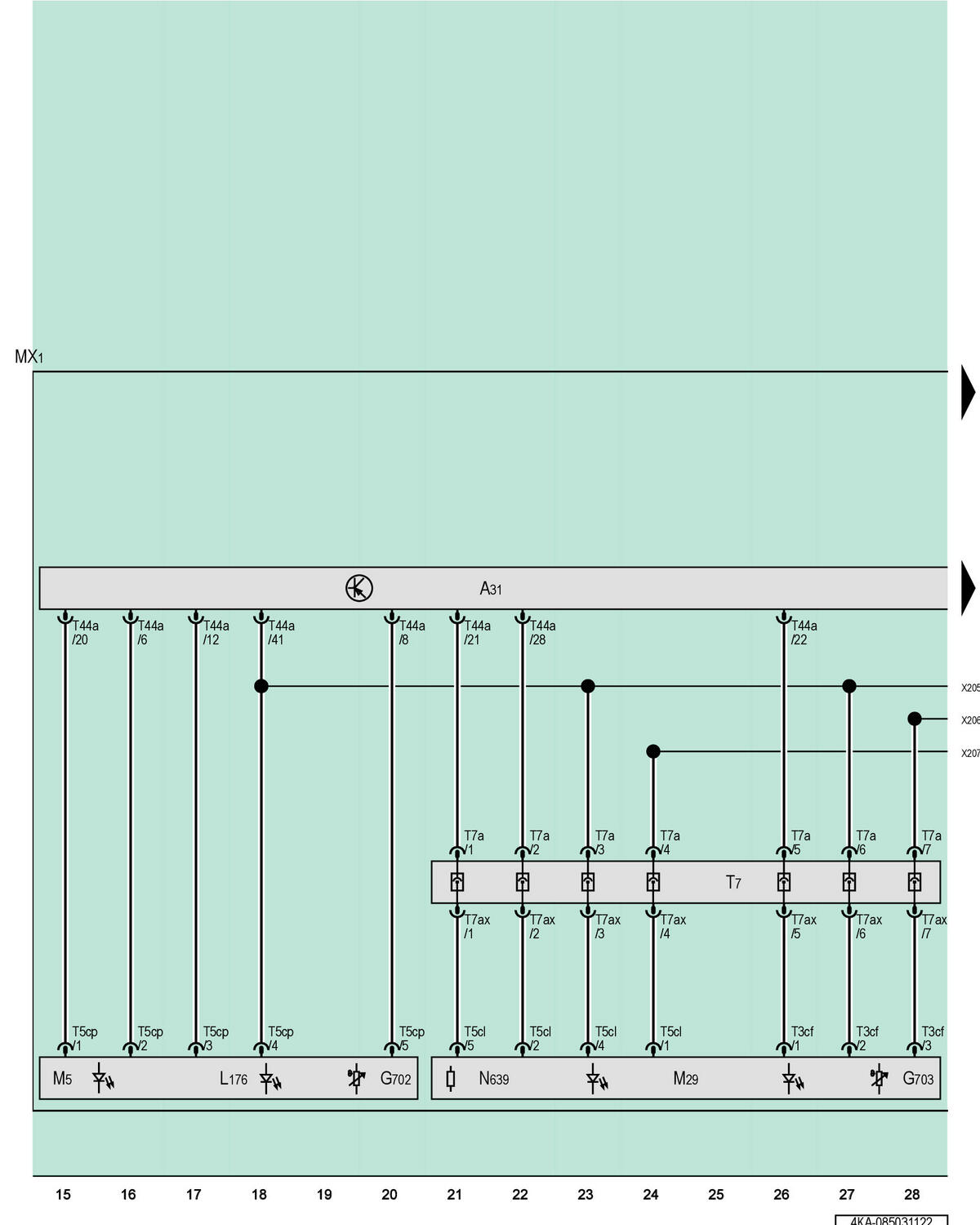

Left Led Headlamp Power Output Module 1, Left Daytime Running Lamp And Position Lamp Led Module, Left Front Headlamp, Left Front Turn Signal Bulb, Left Low Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G702

Left Headlamp Temperature Sensor 1

G703

Left Headlamp Temperature Sensor 2

L176

Left Daytime Running Lamp and Position Lamp LED Module

MX1

Left Front Headlamp

M5

Left Front Turn Signal Bulb

M29

Left Low Beam Headlamp Bulb

N639

Current Coding Resistance 1 for Left Headlamp

T3cf

3-Pin Connector

T5cl

5-Pin Connector

T5cp

5-Pin Connector

T44a

44-Pin Connector

T7

7-Pin Connector, In the Left Headlamp

T7a

7-Pin Connector

T7ax

7-Pin Connector
