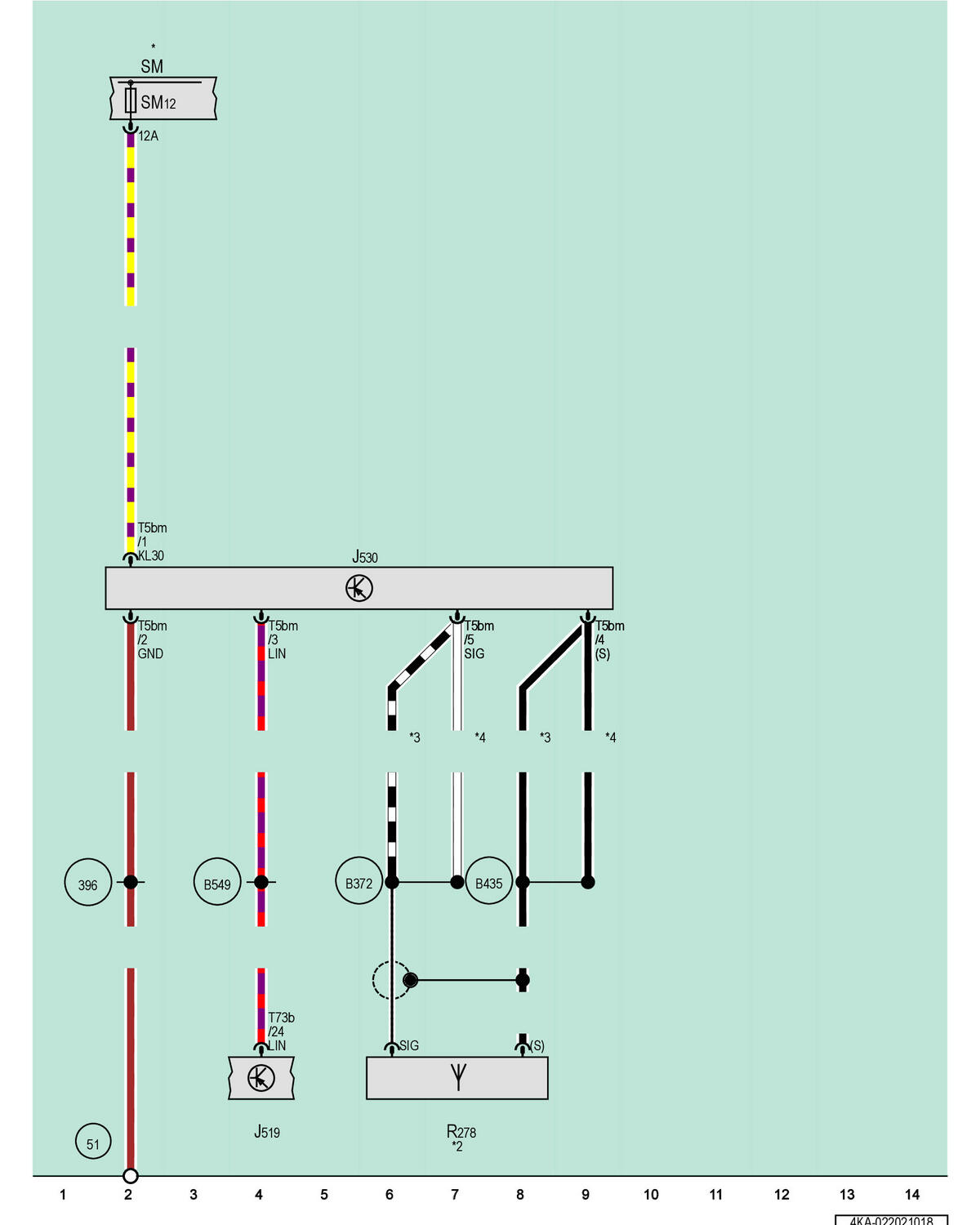

Garage Door Opener Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J530

R278

Garage Door Opener Programming Antenna, In the Wiring Harness, Near the Rear Bench Seat

Fuse Panel M

SM12

Fuse 12 on Fuse Panel M

T5bm

5-Pin Connector, Black

T73b

73-Pin Connector, Black

Ground Connection in Luggage Compartment, Right

396

Ground Connection 31 (in Main Wiring Harness)

B372

Antenna Connection 2 (in Main Wiring Harness)

B435

Shielding Connection 2 (in Main Wiring Harness)

B549

LIN Bus Connection 2 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Open Wire End

Omitted as a Running Change

Running Change
