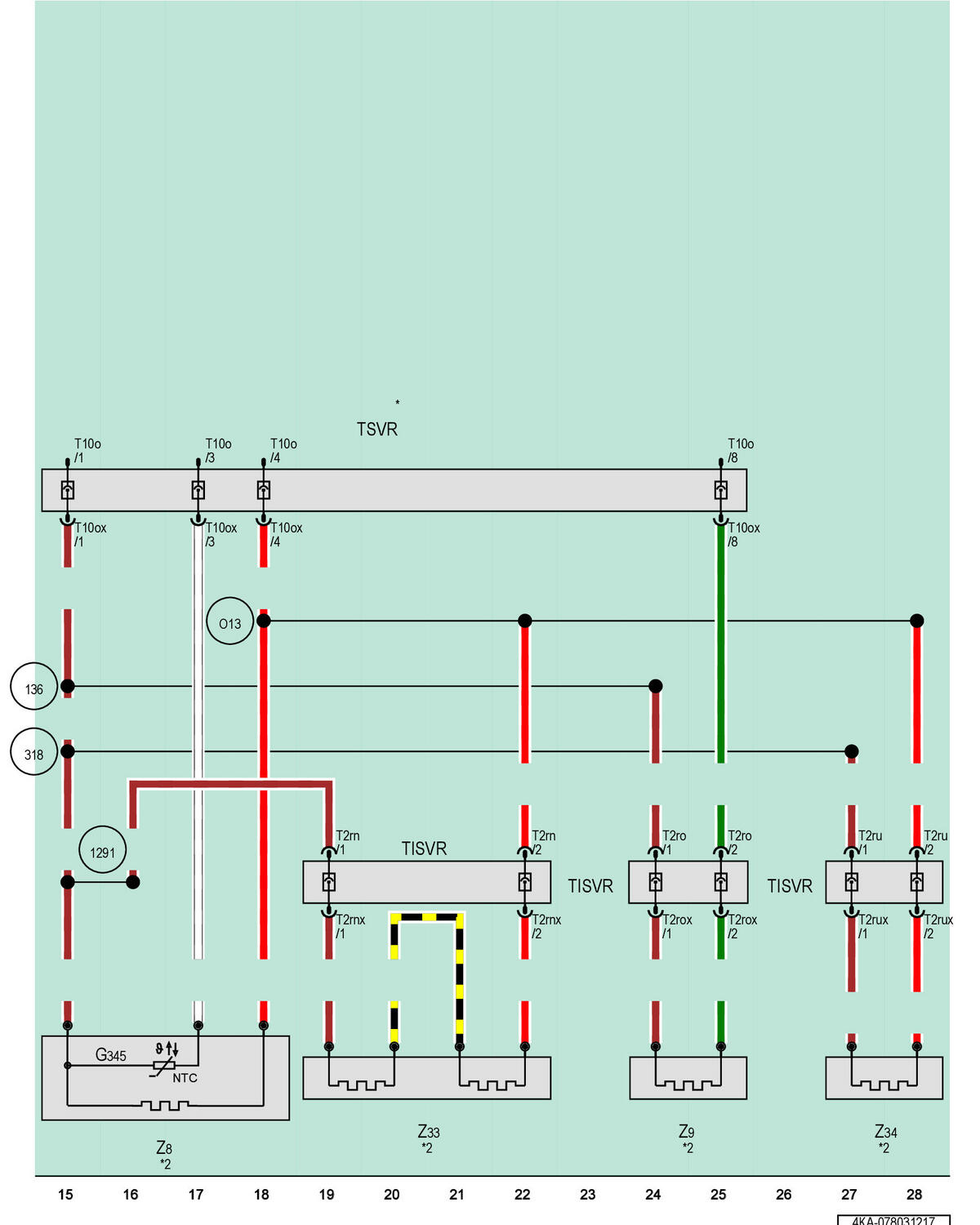

Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element, Front Passenger Seat Bolster Heater, Front Passenger Seat Backrest Bolster Heater
G345
Right Front Seat Temperature Sensor
T2rn
2-Pin Connector, Black
T2rnx
2-Pin Connector, Black
T2ro
2-Pin Connector, Black
T2rox
2-Pin Connector, Black
T2ru
2-Pin Connector, Black
T2rux
2-Pin Connector, Black
T10ox
10-Pin Connector, White
TISVR
Coupling Station in Right Front Seat
TSVR
Right Front Seat Coupling Station
Z8
Front Passenger Seat Heating Element
Z9
Front Passenger Backrest Heating Element
Z33
Front Passenger Seat Bolster Heater
Z34
Front Passenger Seat Backrest Bolster Heater
136
Ground Connection 2 (in Heated Seats Wiring Harness)
318
Ground Connection 4 (in Heated Seats Wiring Harness)
1291
Ground Connection 1 (in Right Front Seat Wiring Harness)
O13
Connection 2 (in Heated Seats Wiring Harness)
*
Refer to the Applicable Heated Seats Wiring Diagram
*2
Pre-Wired Component
