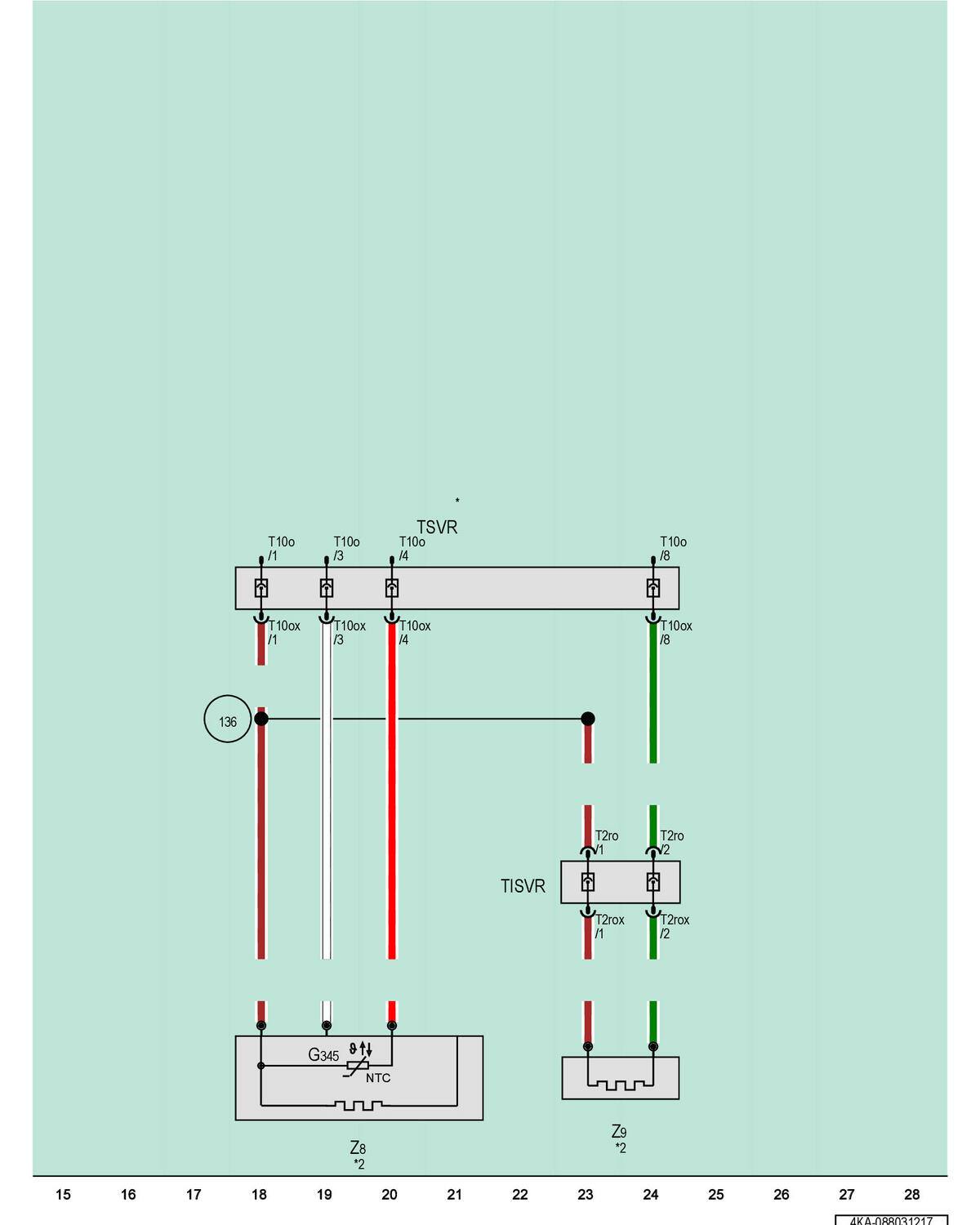

Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element

Courtesy of AUDI OF AMERICA, LLC

G345

Right Front Seat Temperature Sensor

T2ro

2-Pin Connector, Black

T2rox

2-Pin Connector, Black

T10ox

10-Pin Connector, White

TISVR

Coupling Station in Right Front Seat

TSVR

Right Front Seat Coupling Station

Z8

Front Passenger Seat Heating Element

Z9

Front Passenger Backrest Heating Element

136

Ground Connection 2 (in Heated Seats Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram

*2

Pre-Wired Component
