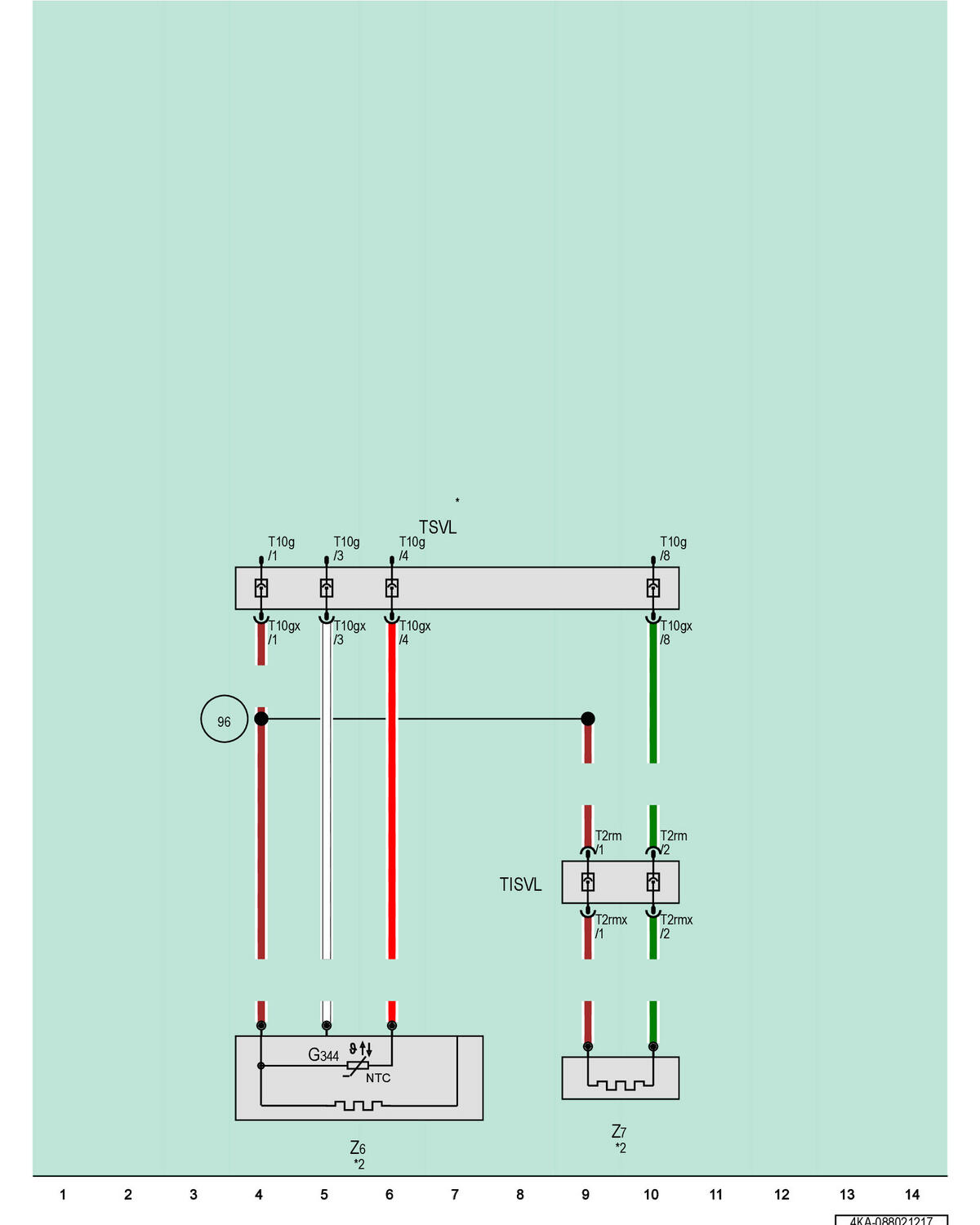

Driver Seat Heating Element, Driver Backrest Heating Element
G344
Left Front Seat Temperature Sensor
T2rm
2-Pin Connector, Black
T2rmx
2-Pin Connector, Black
T10gx
10-Pin Connector, White
TISVL
Coupling Station in Left Front Seat
TSVL
Left Front Seat Coupling Station
Z6
Driver Seat Heating Element
Z7
Driver Backrest Heating Element
96
Ground Connection 1 (in Heated Seats Wiring Harness)
*
Refer to the Applicable Heated Seats Wiring Diagram
*2
Pre-Wired Component
