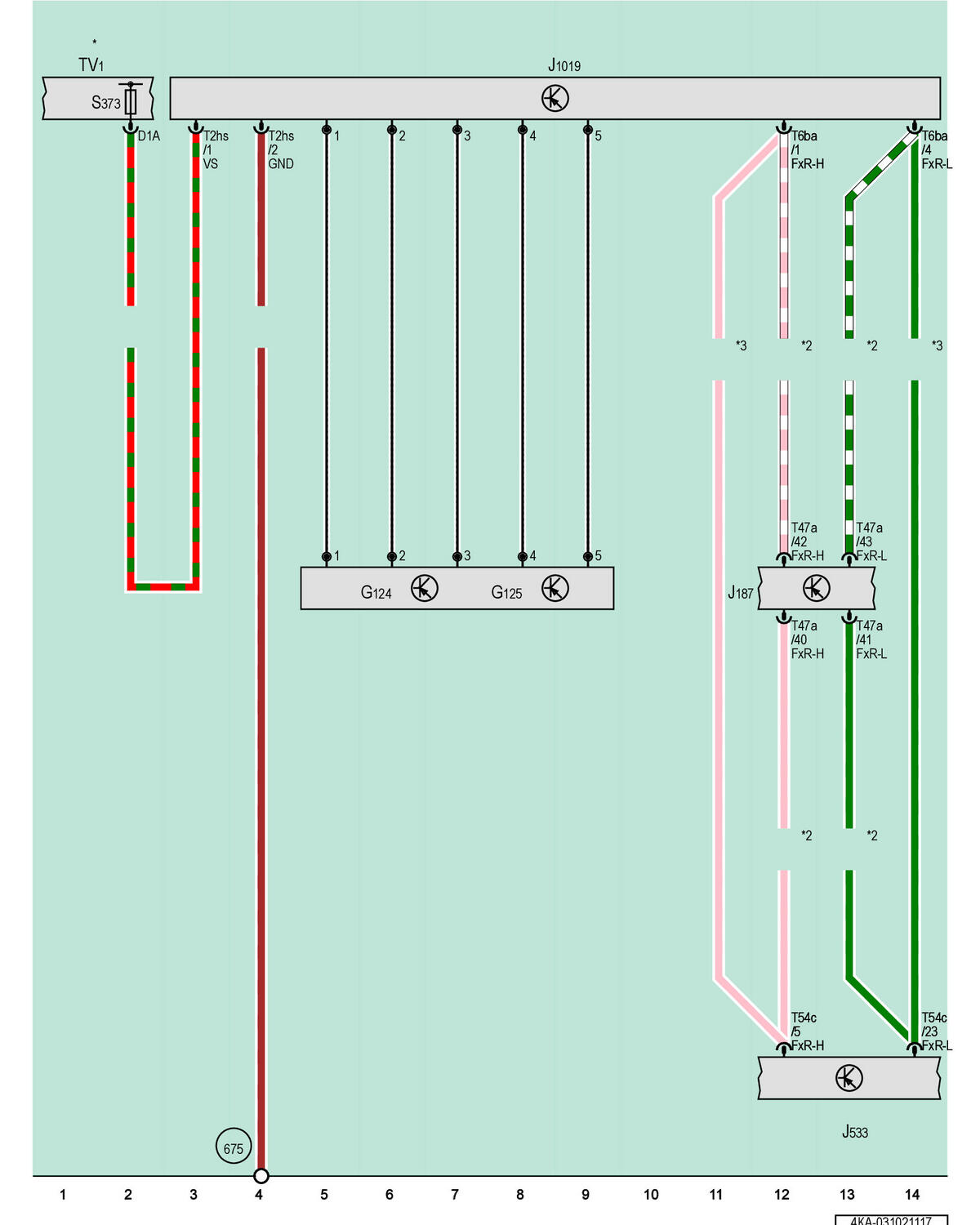

Rear Axle Steering Sensor 1, Rear Axle Steering Sensor 2, Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Rear Axle Steering Control Module
G124
Rear Axle Steering Sensor 1
G125
Rear Axle Steering Sensor 2
J187
Differential Lock Control Module
J533
Data Bus on Board Diagnostic Interface
J1019
Rear Axle Steering Control Module
S373
Wire Junction Fuse 3
T2hs
2-Pin Connector, Black
T6ba
6-Pin Connector, Black
T47a
47-Pin Connector, Black
T54c
54-Pin Connector, Black
TV1
Wire Junction
675
Ground Connection 2 in Luggage Compartment on The Right Side
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For AWD Vehicles
*3
For Vehicles Without All Wheel Drive
