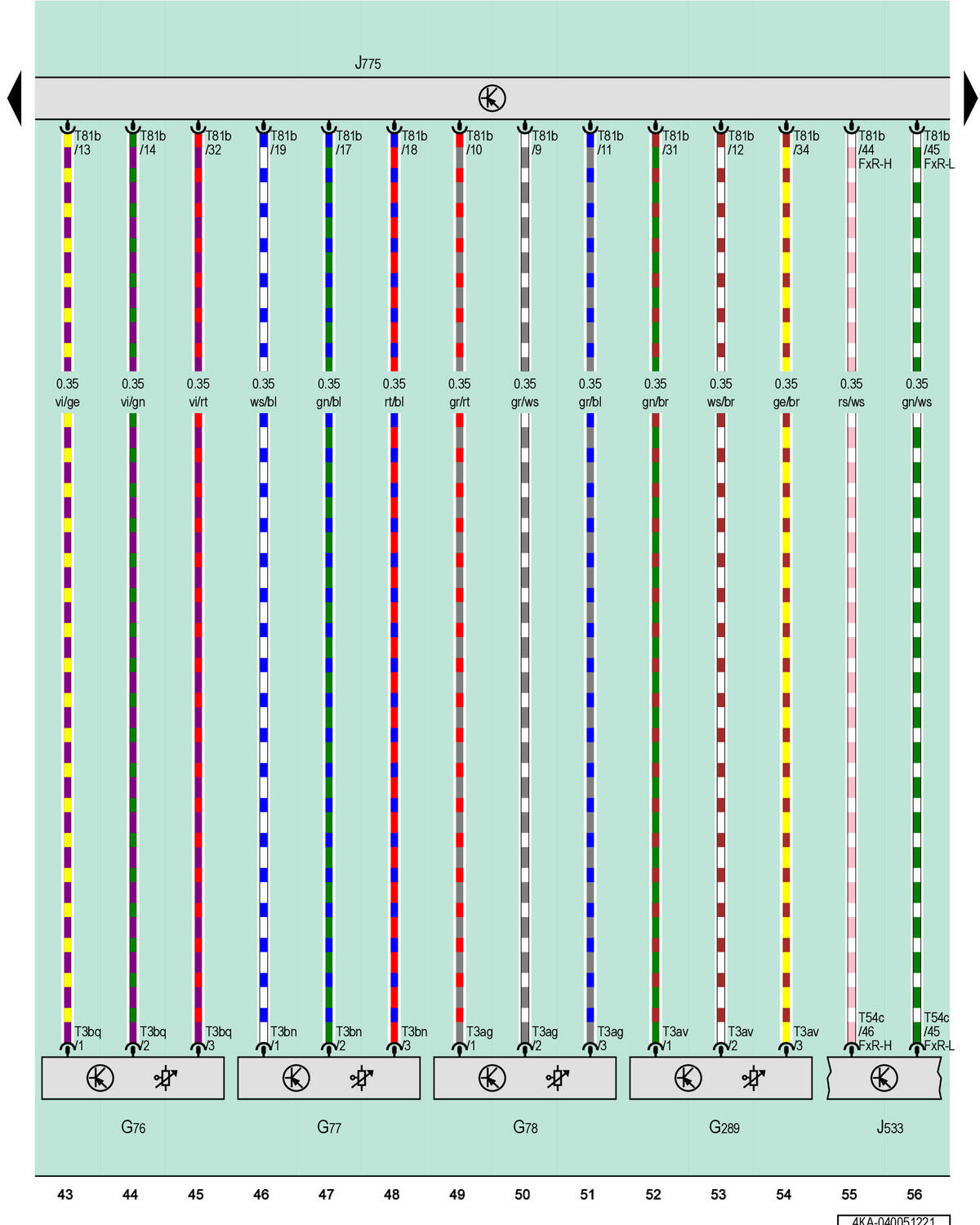

Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Drivetrain Control Module

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

G77

Right Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

G289

Right Front Level Control System Sensor

J533

Data Bus on Board Diagnostic Interface

J775

Drivetrain Control Module

T3ag

3-Pin Connector, Green

T3av

3-Pin Connector, Green

T3bn

3-Pin Connector, Black

T3bq

3-Pin Connector, Black

T54c

54-Pin Connector, Black

T81b

81-Pin Connector, Black
