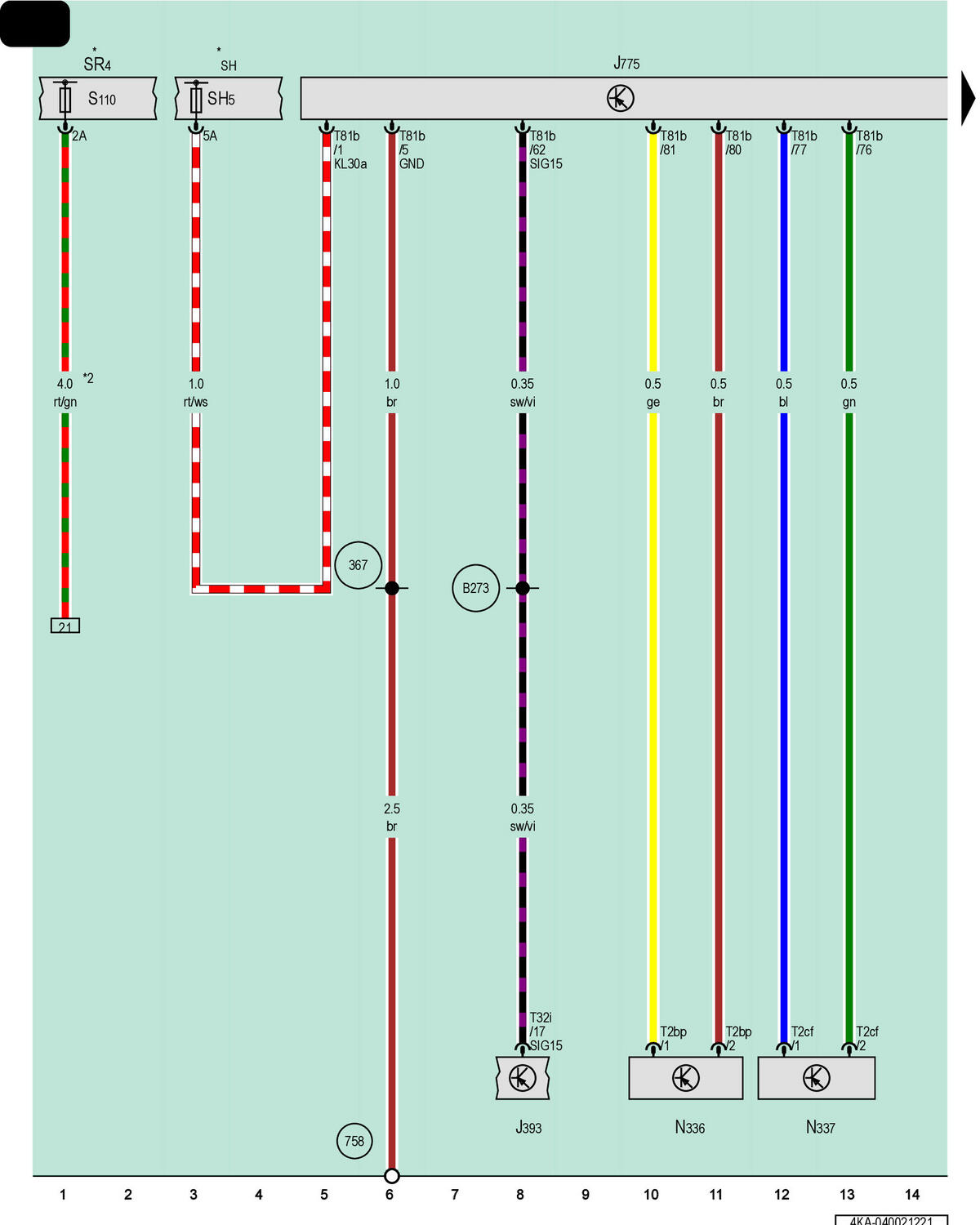

Drivetrain Control Module, Left Front Damping Adjustment Valve
J393
Comfort System Central Control Module
J775
Drivetrain Control Module
N336
Left Front Damping Adjustment Valve
N337
Right Front Damping Adjustment Valve
SH
Fuse Panel H
SR4
Relay and Fuse Panel 4
SH5
Fuse 5 on Fuse Panel H
S110
Self-Leveling Suspension Fuse
T2bp
2-Pin Connector, Black
T2cf
2-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy, Black
T81b
81-Pin Connector, Black
367
Ground Connection 2 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B273
Positive Connection (15) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Air Suspension
