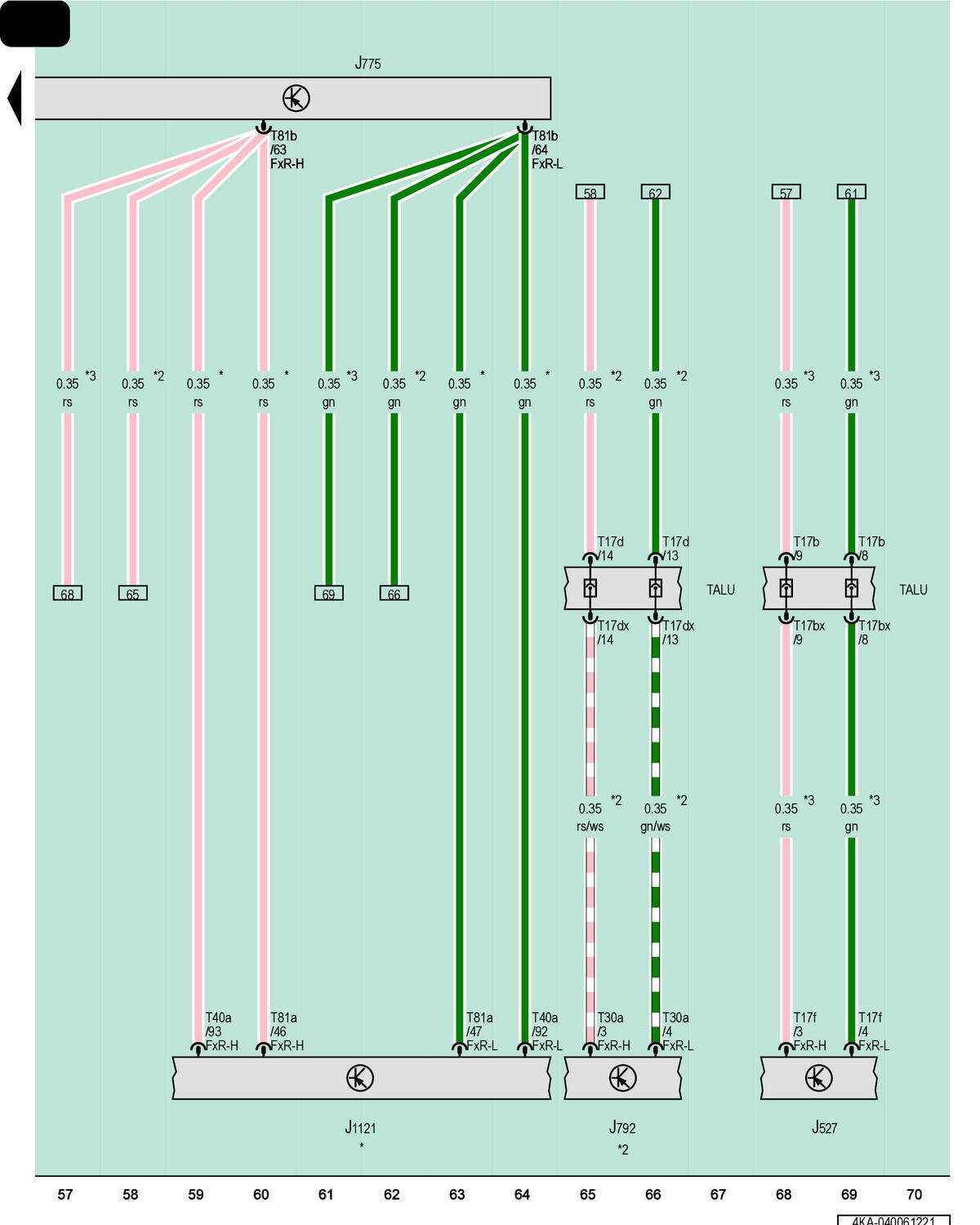

Drivetrain Control Module, Active Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J527

Steering Column Electronics Control Module

J775

Drivetrain Control Module

J792

Active Steering Control Module

J1121

Driver Assistance Systems Control Module

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T17d

17-Pin Connector, Green

T17dx

17-Pin Connector, Green

T17f

17-Pin Connector, Yellow

T30a

30-Pin Connector, Black

T40a

40-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

For Driver Assistance System

*2

For Vehicles with Active Steering

*3

Depending on Equipment
