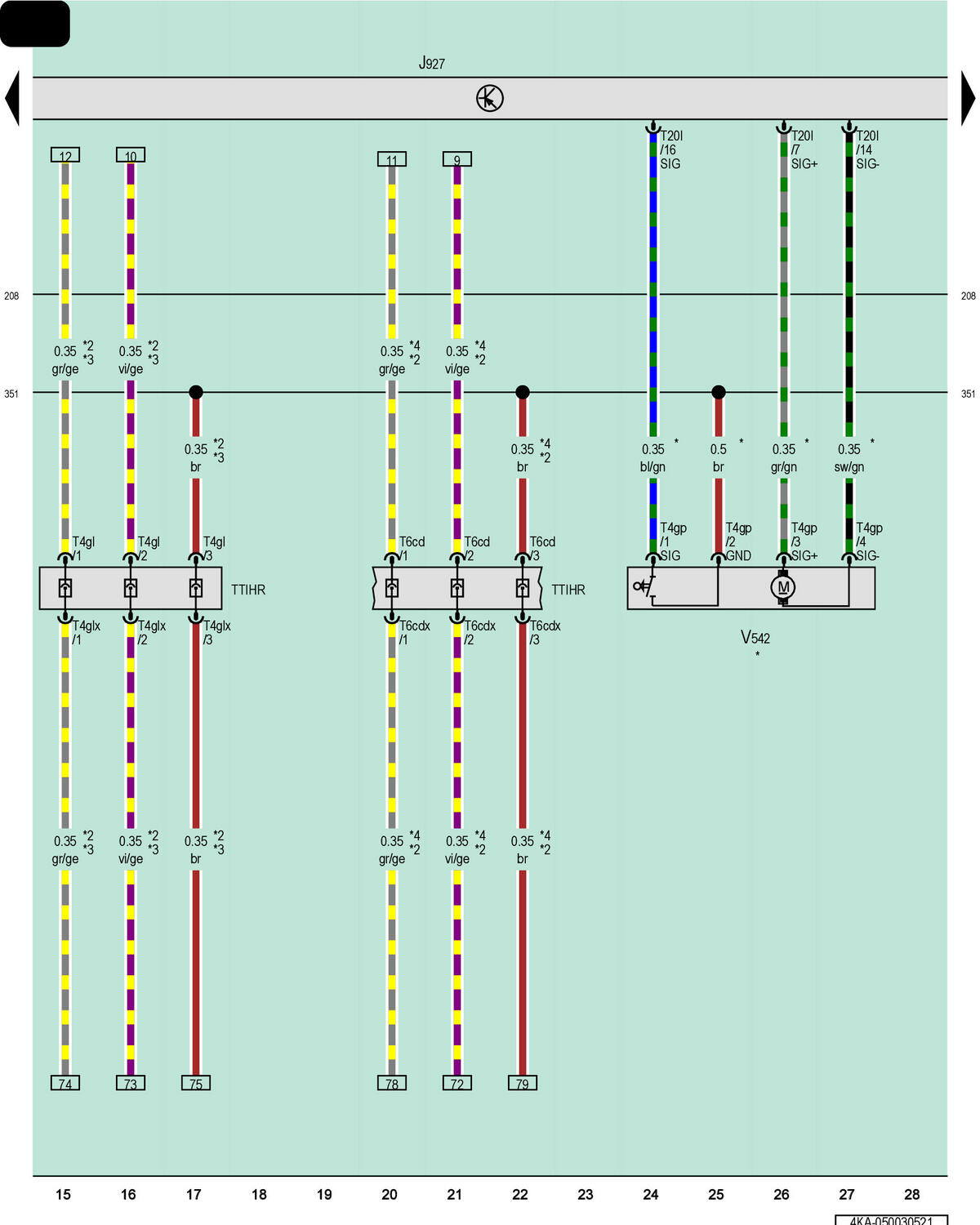

Passenger Side Rear Door Control Module, Passenger Side Rear Door Closing Aid Motor

Courtesy of AUDI OF AMERICA, LLC

J927

Passenger Side Rear Door Control Module

T4gl

4-Pin Connector, Black

T4glx

4-Pin Connector, Black

T4gp

4-Pin Connector, Black

T6cd

6-Pin Connector, Red

T6cdx

6-Pin Connector, Red

T20l

20-Pin Connector, White

TTIHR

Coupling Point in Right Rear Door

V542

Passenger Side Rear Door Closing Aid Motor

208

Ground Connection (in Right Rear Door Wiring Harness)

351

Ground Connection 2 (in Right Rear Door Wiring Harness)

*

For Vehicles with Door Closing Aid

*2

For Vehicles with Ambient Lighting

*3

Through July 2018

*4

From July 2018
