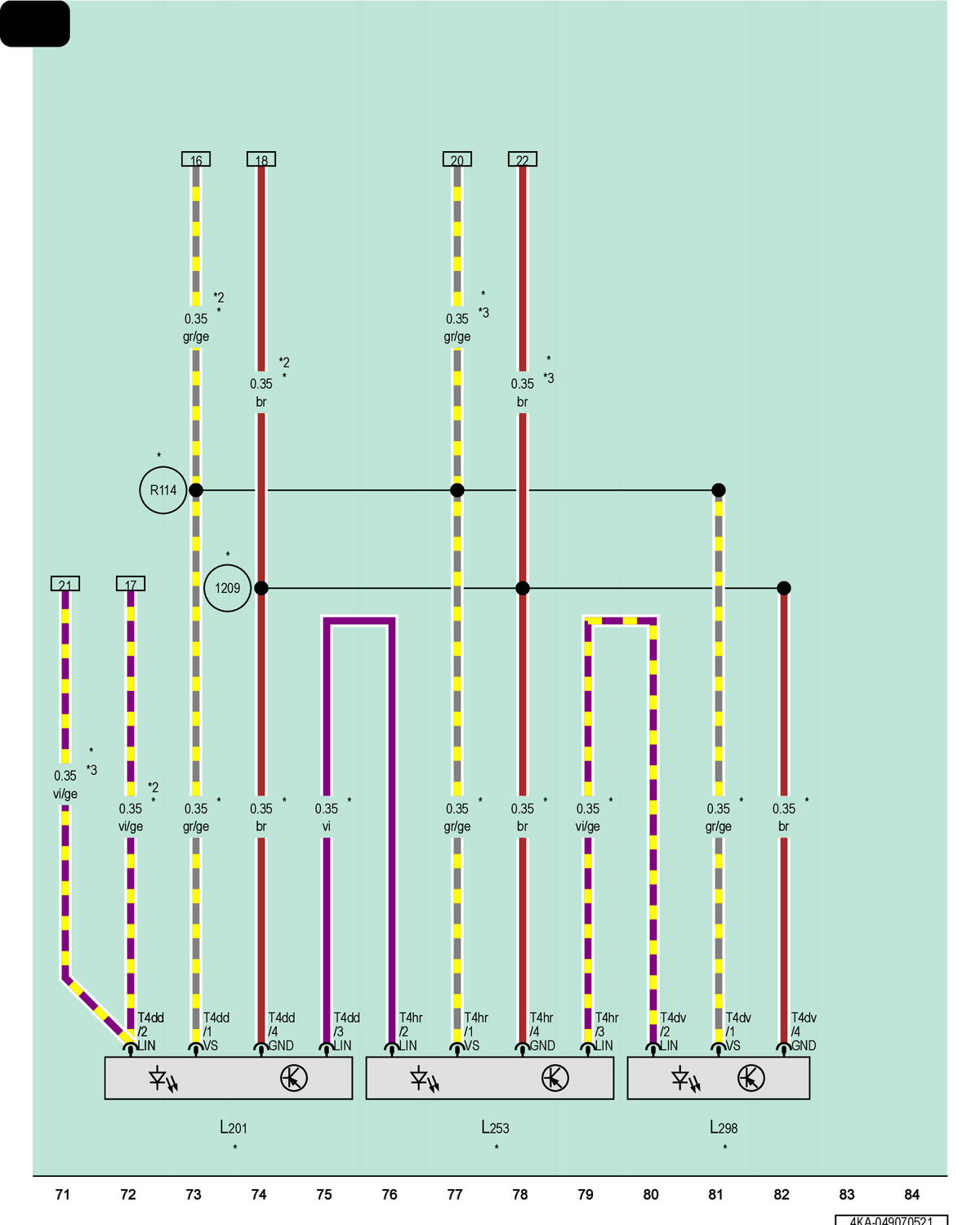

Left Rear Door Ambient Lighting Bulb 1, Left Rear Door Contour Illumination Lamp, Left Rear Door Contour Illumination Lamp 2

Courtesy of AUDI OF AMERICA, LLC

L201

Left Rear Door Ambient Lighting Bulb 1

L253

Left Rear Door Contour Illumination Lamp

L298

Left Rear Door Contour Illumination Lamp 2

T4dd

4-Pin Connector, Black

T4dv

4-Pin Connector, Red

T4hr

4-Pin Connector, Brown

1209

Ground Connection (in Driver Side Rear Door Wiring Harness)

R114

Ambient Lighting Connection (in Left Rear Door Wiring Harness)

*

For Vehicles with Ambient Lighting

*2

Through July 2018

*3

From July 2018
