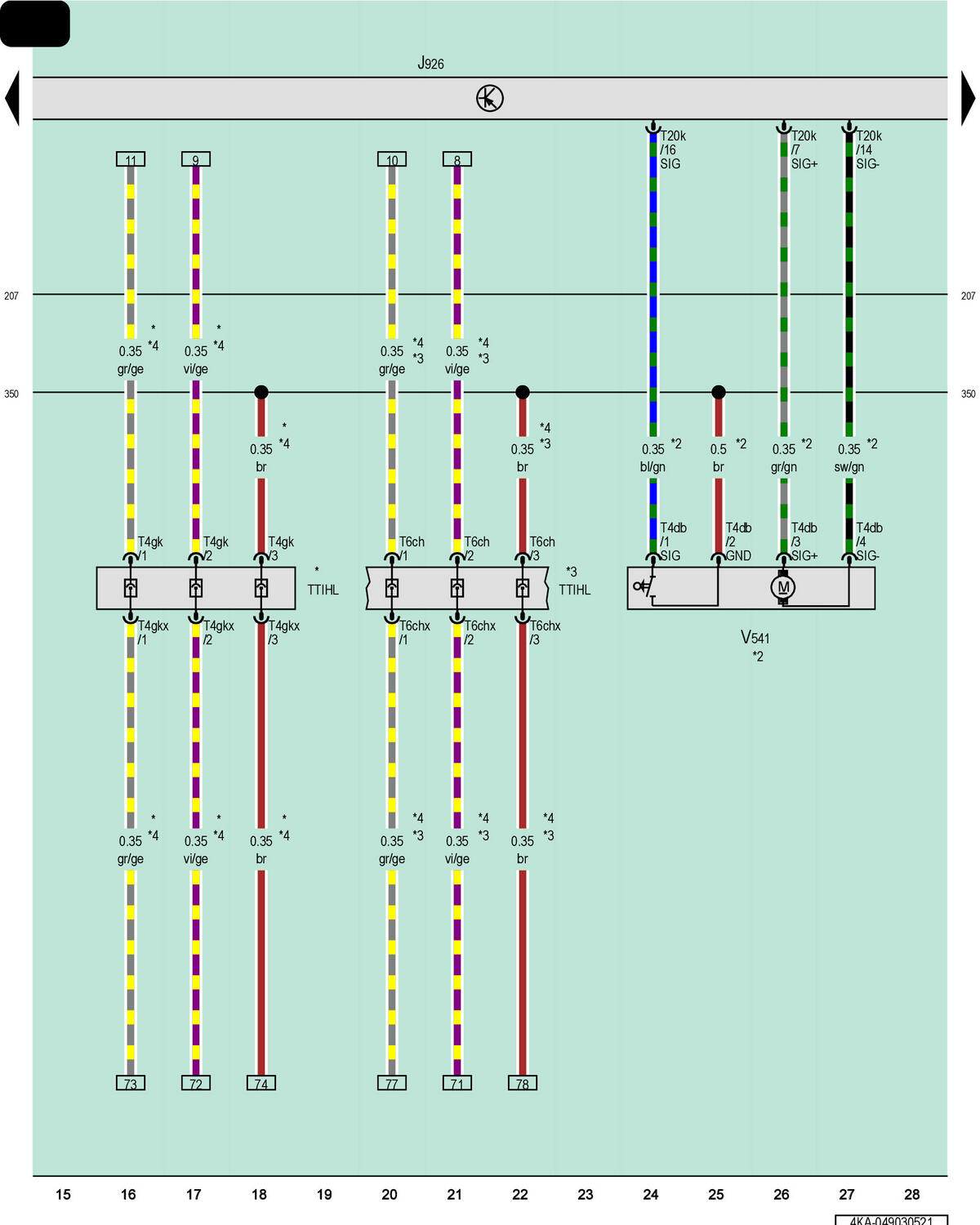

Driver Side Rear Door Control Module, Driver Side Rear Door Closing Aid Motor

Courtesy of AUDI OF AMERICA, LLC

J926

Driver Side Rear Door Control Module

T4db

4-Pin Connector, Black

T4gk

4-Pin Connector, Black

T4gkx

4-Pin Connector, Black

T6ch

6-Pin Connector, Red

T6chx

6-Pin Connector, Red

T20k

20-Pin Connector, White

TTIHL

Coupling Point in Left Rear Door

V541

Driver Side Rear Door Closing Aid Motor

207

Ground Connection (in Left Rear Door Wiring Harness)

350

Ground Connection 2 (in Left Rear Door Wiring Harness)

*

Through July 2018

*2

For Vehicles with Door Closing Aid

*3

From July 2018

*4

For Vehicles with Ambient Lighting
