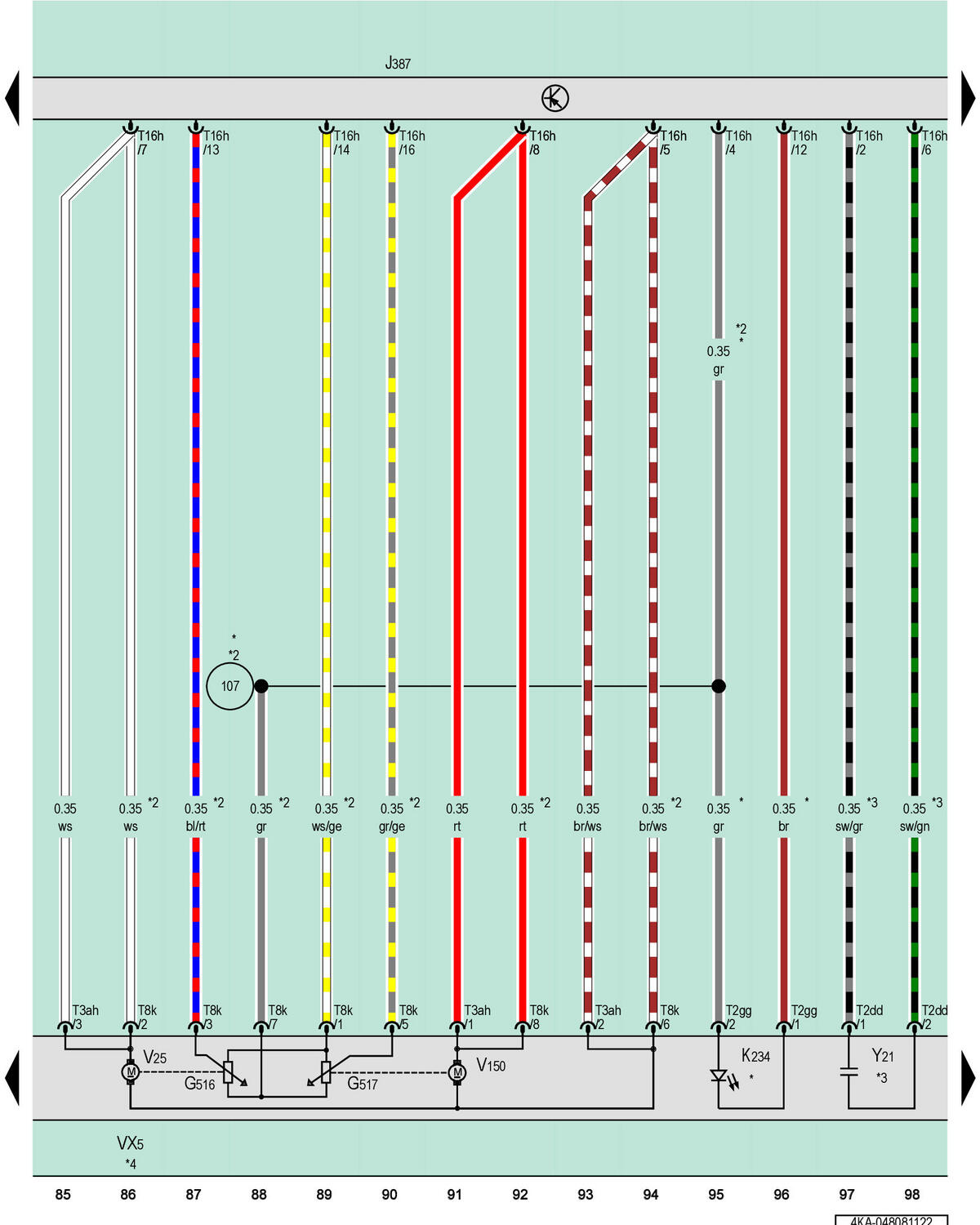

Front Passenger Door Control Module, Front Passenger Exterior Rearview Mirror

Courtesy of AUDI OF AMERICA, LLC

G516

Front Passenger Exterior Rearview Mirror Horizontal Position Sensor

G517

Front Passenger Exterior Rearview Mirror Vertical Position Sensor

J387

Front Passenger Door Control Module

K234

Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror

T2dd

2-Pin Connector

T2gg

2-Pin Connector

T3ah

3-Pin Connector

T8k

8-Pin Connector

T16h

16-Pin Connector

VX5

Front Passenger Exterior Rearview Mirror

V25

Front Passenger Side Mirror Adjustment Motor 2

V150

Front Passenger Mirror Adjustment Motor

Y21

Front Passenger Automatic Dimming Exterior Rearview Mirror

107

Ground Connection (in Exterior Mirror Wiring Harness)

For Vehicles with Lane Change Assistance

For Vehicles with Memory Seats

For Vehicles with Automatic Dimming Exterior Rearview Mirror

Pre-Wired Component
