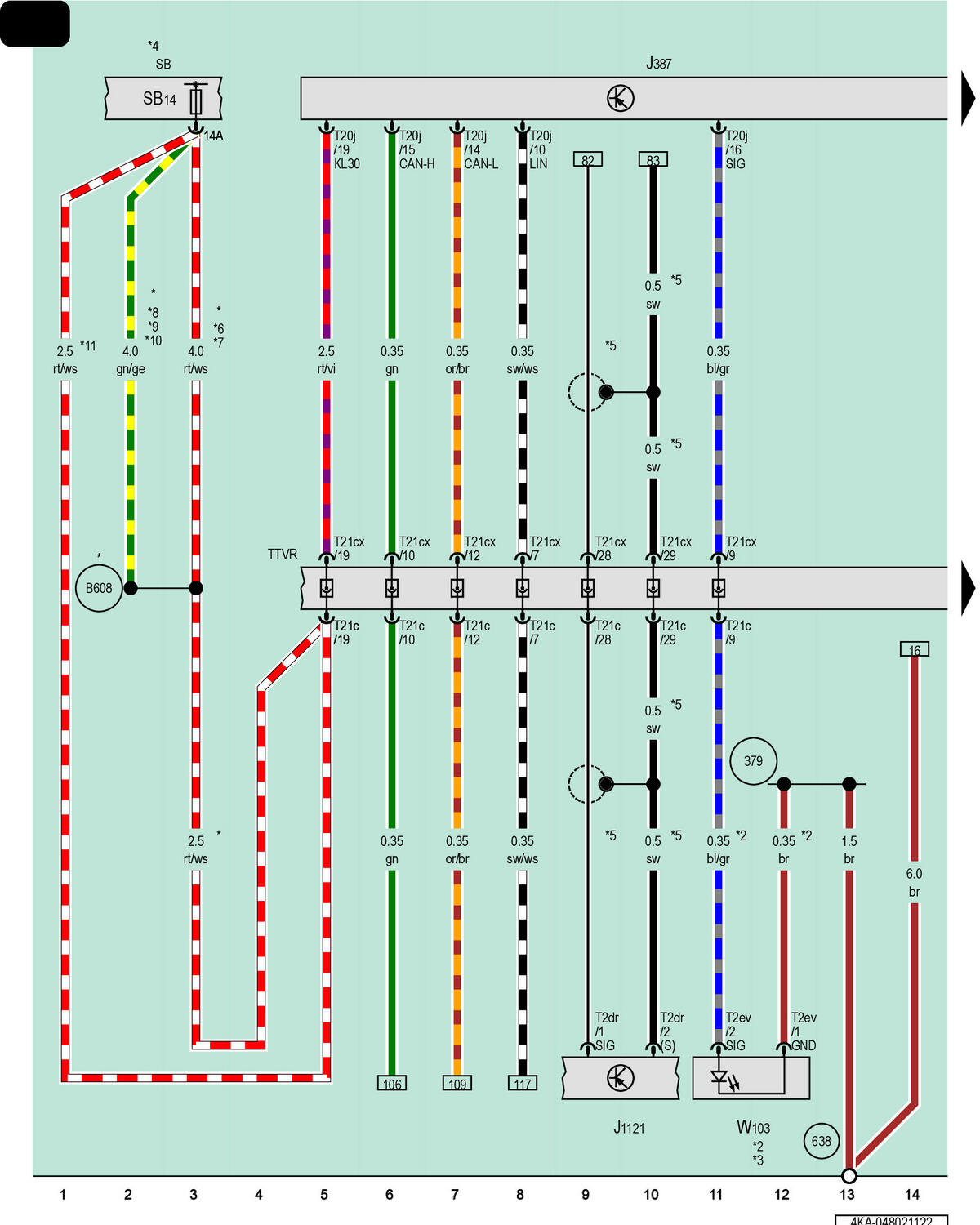

Front Passenger Door Control Module, Driver Assistance Systems Control Module, Fuse Panel B, Front Passenger Side Sill Panel Strip Ambient Lighting Lamp
J387
Front Passenger Door Control Module
J1121
Driver Assistance Systems Control Module
SB
Fuse Panel B
SB14
Fuse 14 (On Fuse Panel B)
T2dr
2-Pin Connector, Purple
T2ev
2-Pin Connector, Black
T20j
20-Pin Connector, White
T21c
21-Pin Connector, Black
T21cx
21-Pin Connector, Black
TTVR
Right Front Door Coupling Point
W103
Front Passenger Side Sill Panel Strip Ambient Lighting Lamp
379
Ground Connection 14 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
B608
Connection 4 (in Interior Wiring Harness)
*
Through August 2021
*2
For Vehicles with Auxiliary Lamps
*3
Pre-Wired Component
*4
Refer to Applicable Wiring Diagram for Fuse Positions
*5
For Vehicles with Peripheral Camera
*6
Through November 2020
*7
From March 2021
*8
From November 2020
*9
Through March 2021
*10
For Vehicles Without China Equipment
*11
From August 2021
