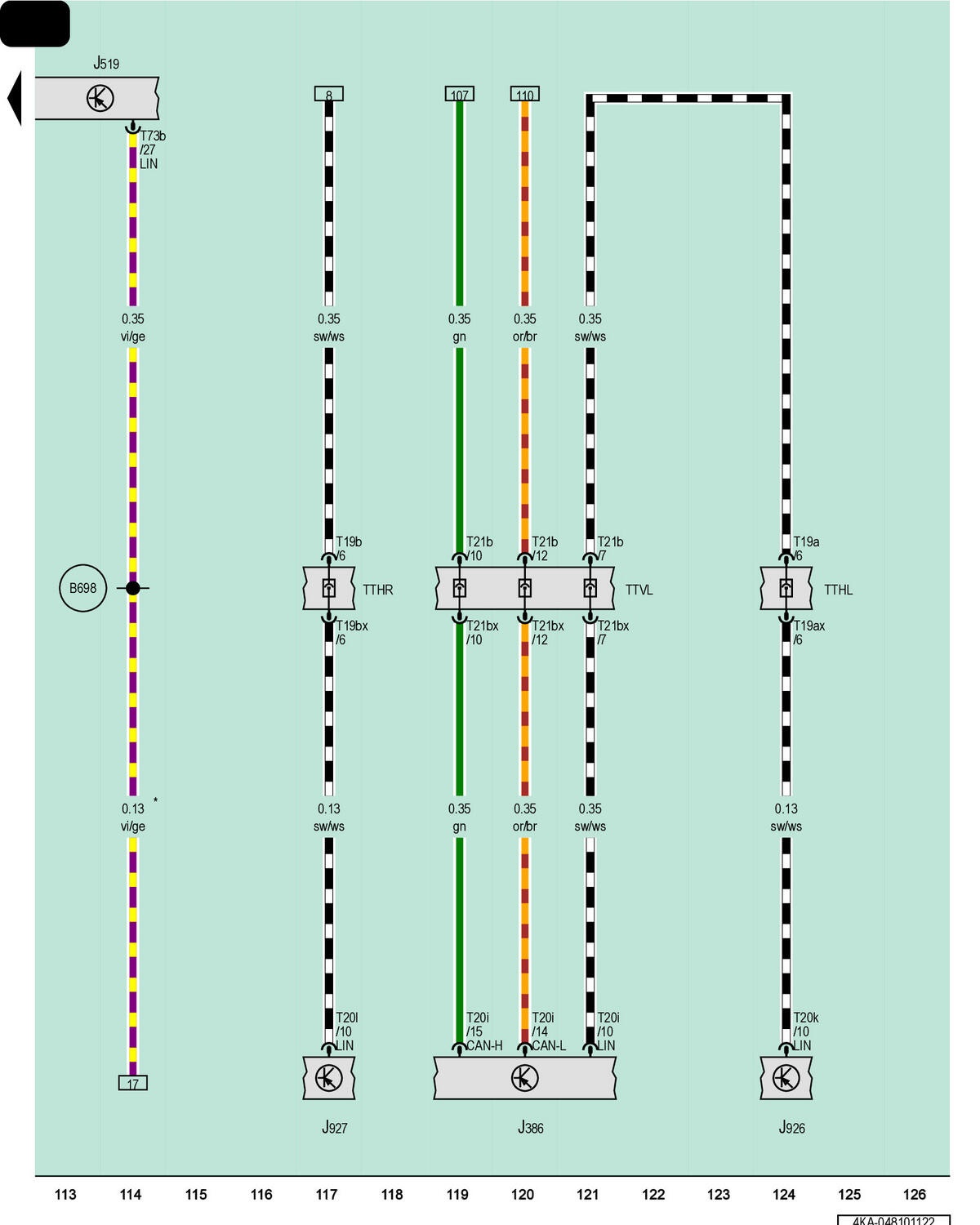

Driver Door Control Module, Vehicle Electrical System Control Module, Driver Side Rear Door Control Module, Passenger Side Rear Door Control Module

Courtesy of AUDI OF AMERICA, LLC

J386

Driver Door Control Module

J519

Vehicle Electrical System Control Module

J926

Driver Side Rear Door Control Module

J927

Passenger Side Rear Door Control Module

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T20i

20-Pin Connector, White

T20k

20-Pin Connector, White

T20l

20-Pin Connector, White

T21b

21-Pin Connector, Black

T21bx

21-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

TTHL

Left Rear Door Coupling Point

TTHR

Right Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

B698

LIN Bus Connection 3 (in Main Wiring Harness)

*

For Vehicles with Ambient Lighting
