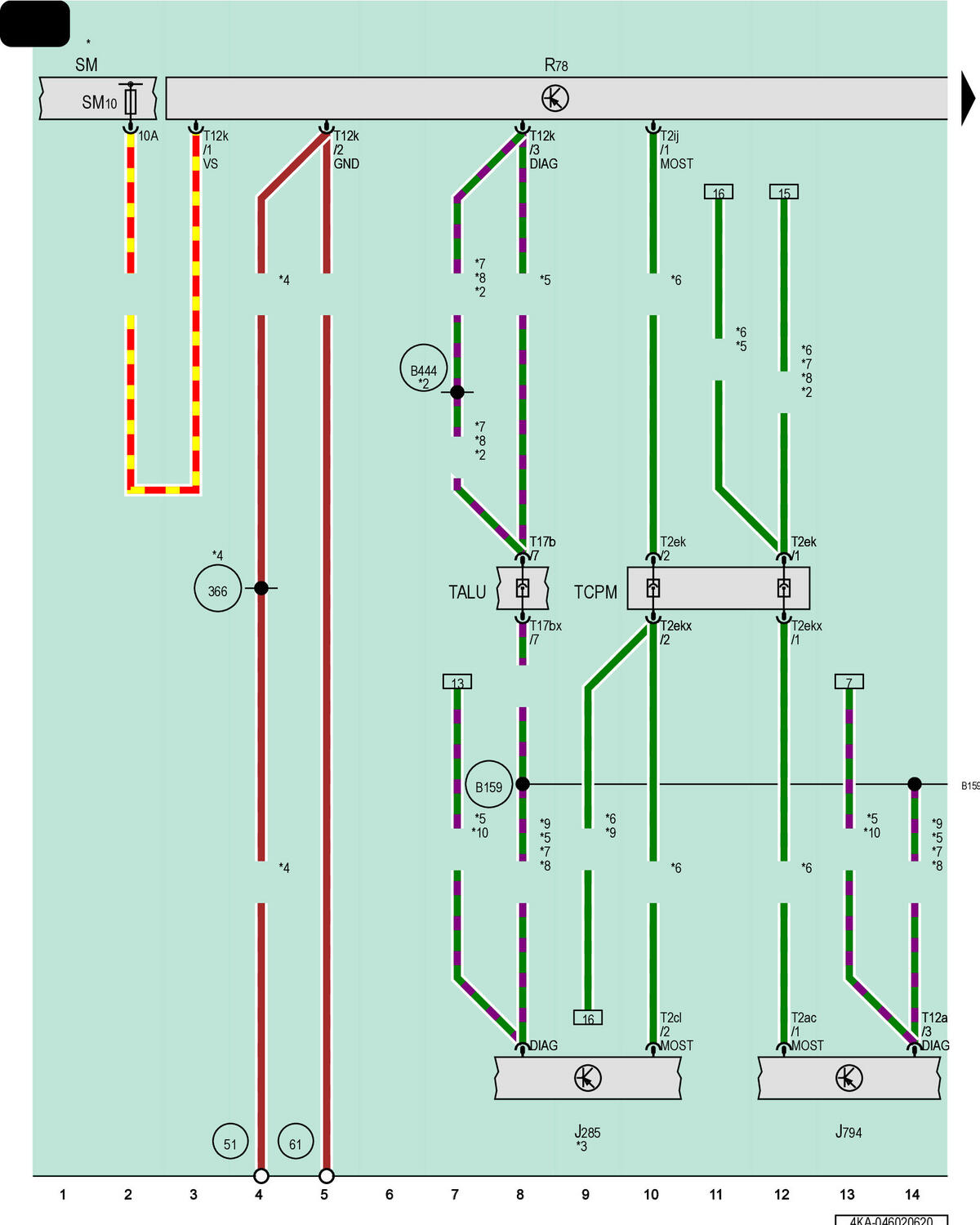

Instrument Cluster Control Module, Information Electronics Control Module 1, TV Tuner
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
R78
TV Tuner
SM
Fuse Panel M
SM10
Fuse 10 on Fuse Panel M
T2ac
2-Pin Connector, Black
T2cl
2-Pin Connector, Black
T2ek
2-Pin Connector, Black
T2ekx
2-Pin Connector, Black
T2ij
2-Pin Connector, Black
T12a
12-Pin Connector, Gray
T12k
12-Pin Connector, Black
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
TALU
Coupling Point on Left A-Pillar, Bottom
TCPM
Coupling Point on Instrument Panel, Center
51
Ground Connection in Luggage Compartment, Right
61
Ground Connection on Left C-Pillar
366
Ground Connection 1 (in Main Wiring Harness)
B159
Diagnostic Connection (in Interior Wiring Harness)
B444
OBD Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Through June 2020
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
For Vehicles with Hybrid Drive
*5
For Vehicles with Standard Sound System
*6
Fiber Optic Cable
*7
For Vehicles with Bang & Olufsen Sound System
*8
For Vehicles with Bose Sound System
*9
For Vehicles with Windshield Projection
*10
For Vehicles with MMI
