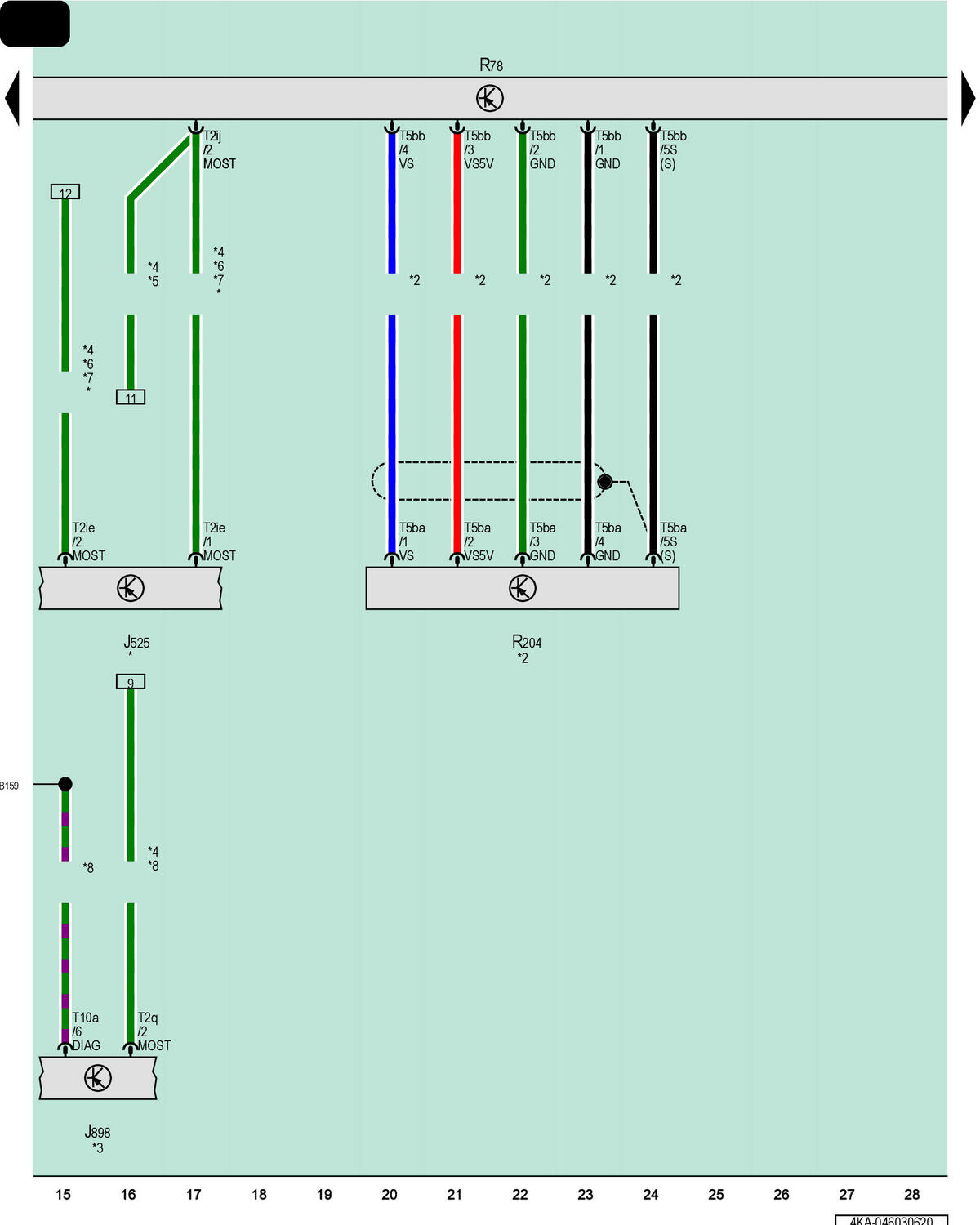

Digital Sound System Control Module, Windshield Projection Head Up Display Control Module, TV Tuner, TV Card Reader

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J898

Windshield Projection Head Up Display Control Module

R78

TV Tuner

R204

TV Card Reader

T2ie

2-Pin Connector, Black

T2ij

2-Pin Connector, Black

T2q

2-Pin Connector, Black

T5ba

5-Pin Connector, Blue

T5bb

5-Pin Connector, Blue

T10a

10-Pin Connector, Black

B159

Diagnostic Connection (in Interior Wiring Harness)

*

Through June 2020

*2

Optional Equipment

*3

Refer to Applicable Windshield Projection Wiring Diagram

*4

Fiber Optic Cable

*5

For Vehicles with Standard Sound System

*6

For Vehicles with Bang & Olufsen Sound System

*7

For Vehicles with Bose Sound System

*8

For Vehicles with Windshield Projection
