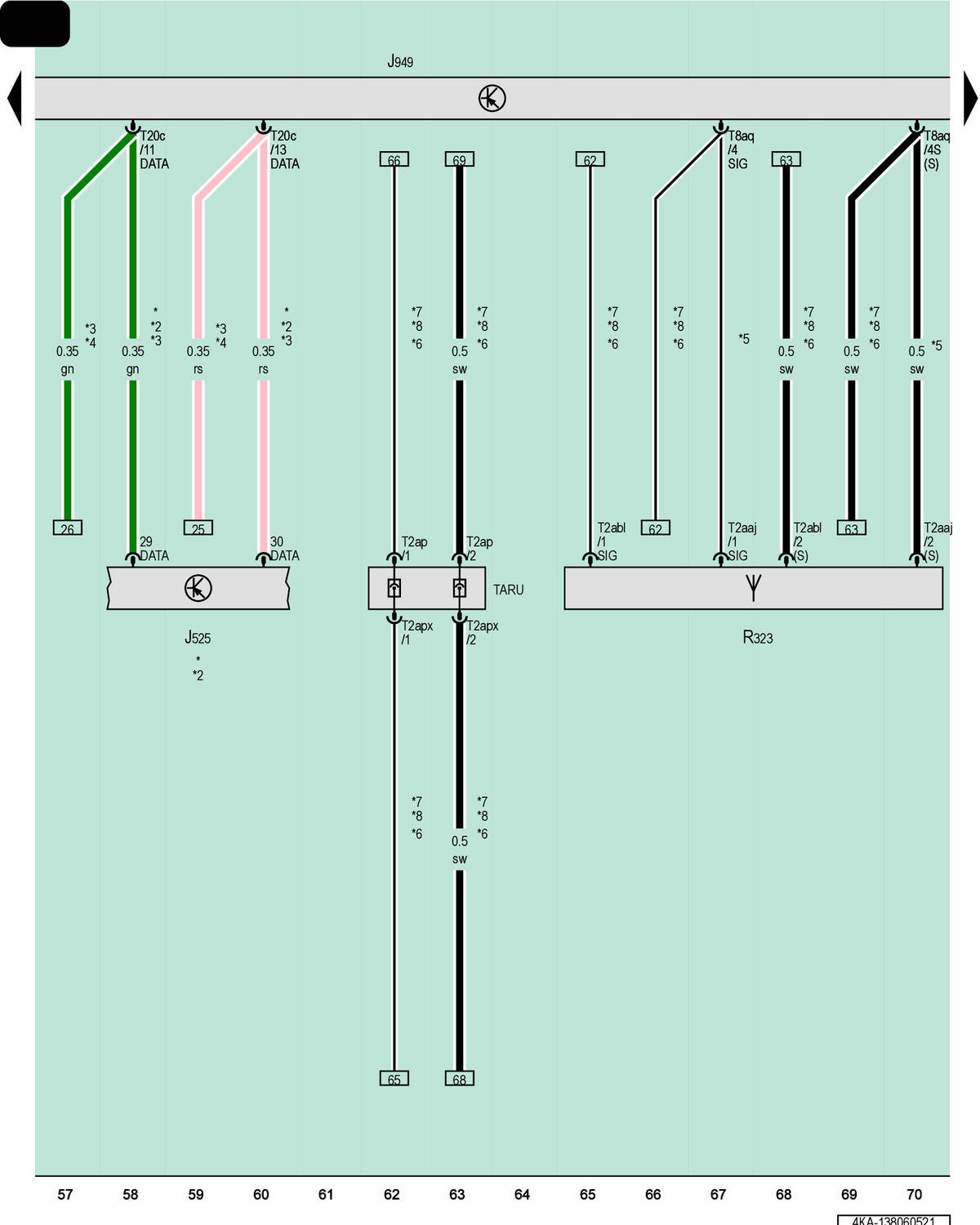

Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Antenna 3
J525
Digital Sound System Control Module
J949
Control Module for Emergency Call Module and Communication Unit
R323
Emergency Call Module Antenna 3
T2aaj
2-Pin Connector, Purple
T2abl
2-Pin Connector, Black
T2ap
2-Pin Connector, Black
T2apx
2-Pin Connector, Black
T8aq
8-Pin Connector, Black
T20c
20-Pin Connector, Naturally Cloudy
TARU
Coupling Point on Right A-Pillar, Bottom
*
Refer to Applicable Sound System Wiring Diagram
*2
For Vehicles with an Amplifier
*3
Audio Bus Data Bus Wire
*4
For Vehicles Without an Amplifier
*5
For Vehicles Without External Vehicle Communication
*6
For Vehicles with China Equipment
*7
From December 2021
*8
For Vehicles with External Vehicle Communication
