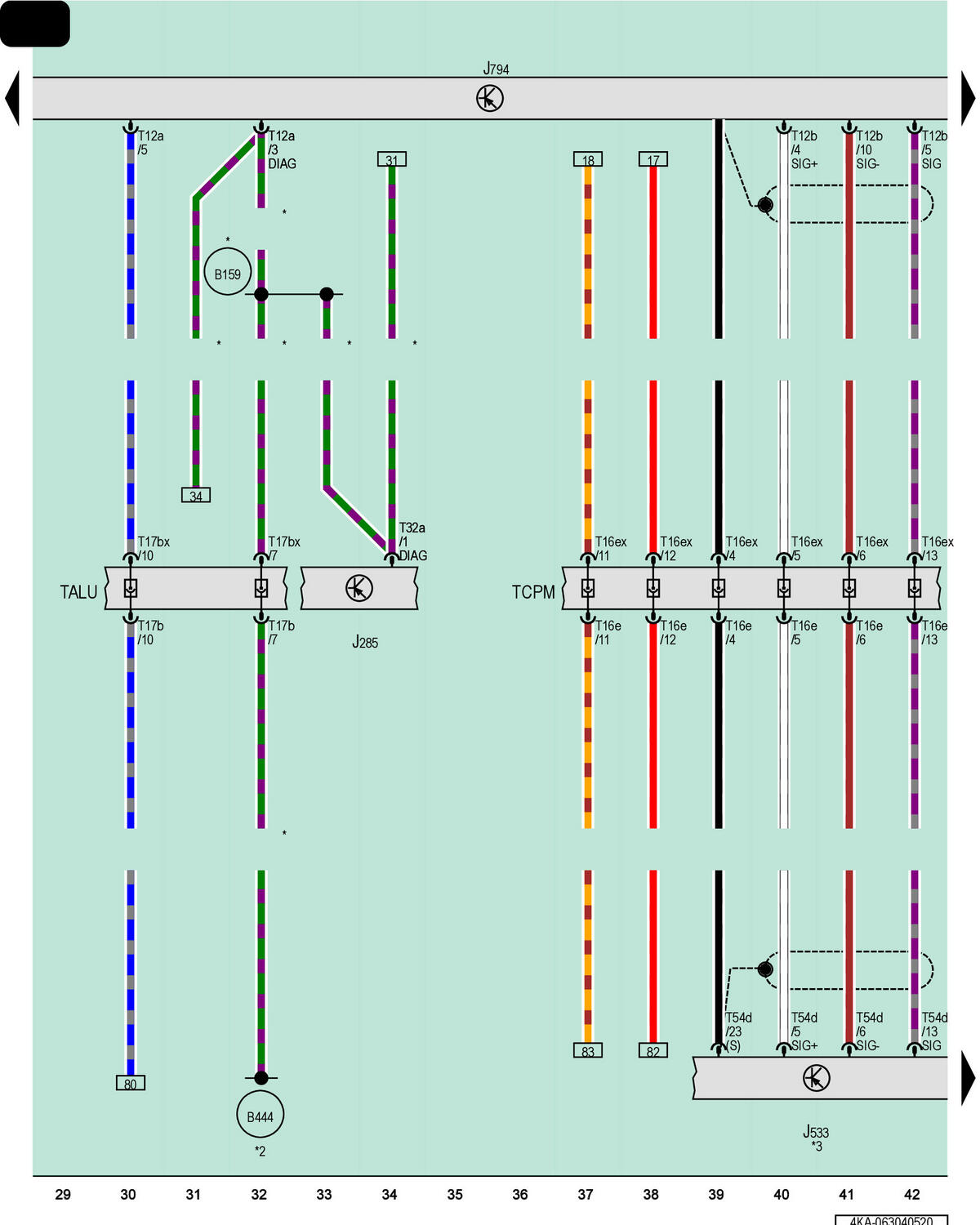

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

T12a

12-Pin Connector, Gray

T12b

12-Pin Connector, Blue

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T32a

32-Pin Connector, Gray

T54d

54-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

TCPM

Coupling Point on Instrument Panel, Center

B159

Diagnostic Connection (in Interior Wiring Harness)

B444

OBD Connection 1 (in Main Wiring Harness)

*

Depending on Equipment

*2

Refer to Applicable Wiring Diagram for Infotainment Most Bus

*3

Refer to Applicable Wiring Diagram
