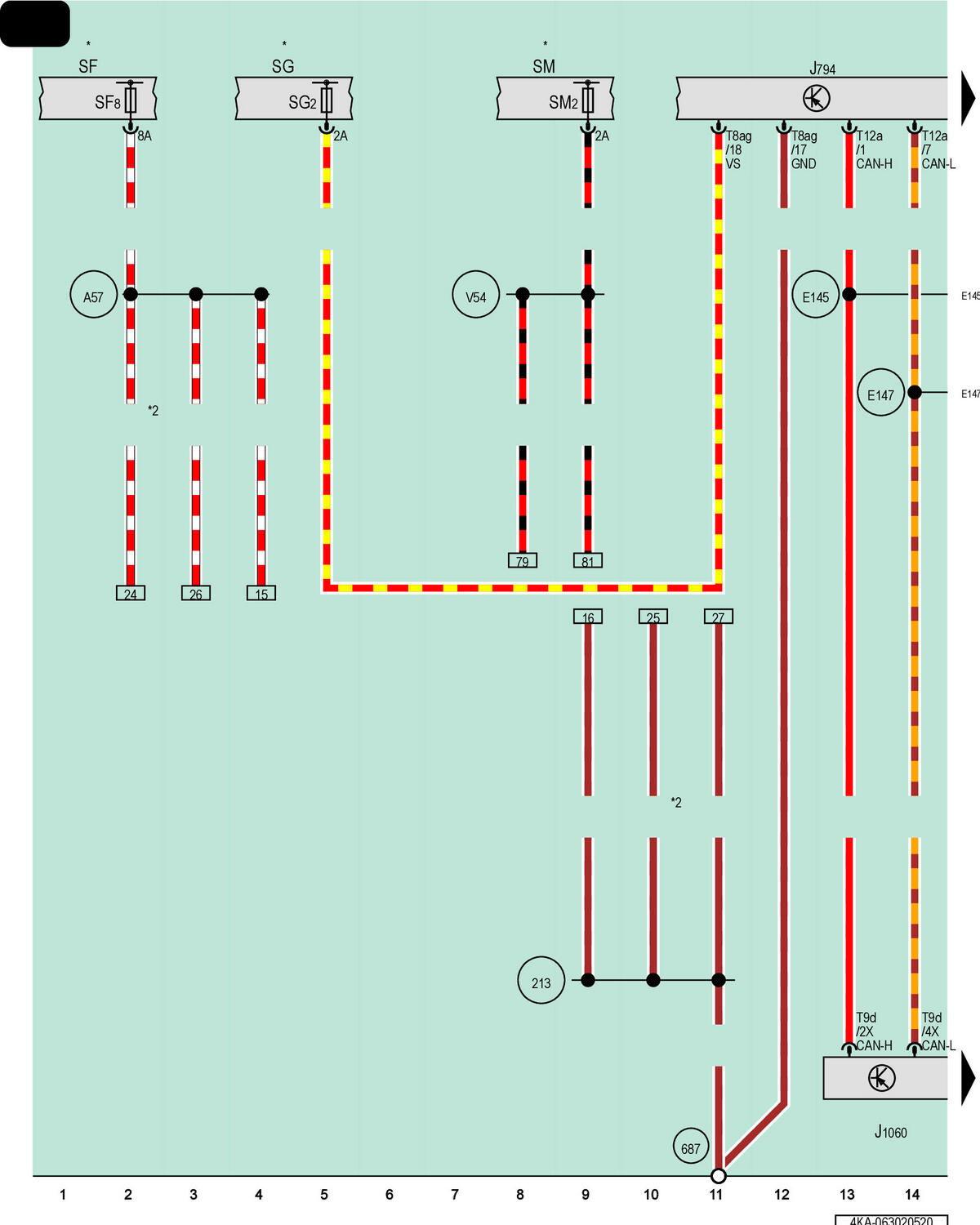

Information Electronics Control Module 1, Front Information Display Control Head 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J1060

Front Information Display Control Head 2

Fuse Panel F

SF8

Fuse 8 (On Fuse Panel F)

Fuse Panel G

SG2

Fuse 2 on Fuse Panel G

Fuse Panel M

SM2

Fuse 2 on Fuse Panel M

T8ag

8-Pin Connector, Black

T9d

9-Pin Connector, White

T12a

12-Pin Connector, Gray

213

Ground Connection (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

A57

Positive Connection 3 (30) (in Instrument Panel Wiring Harness)

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

V54

Telephone Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

For Vehicles with Highline Equipment
