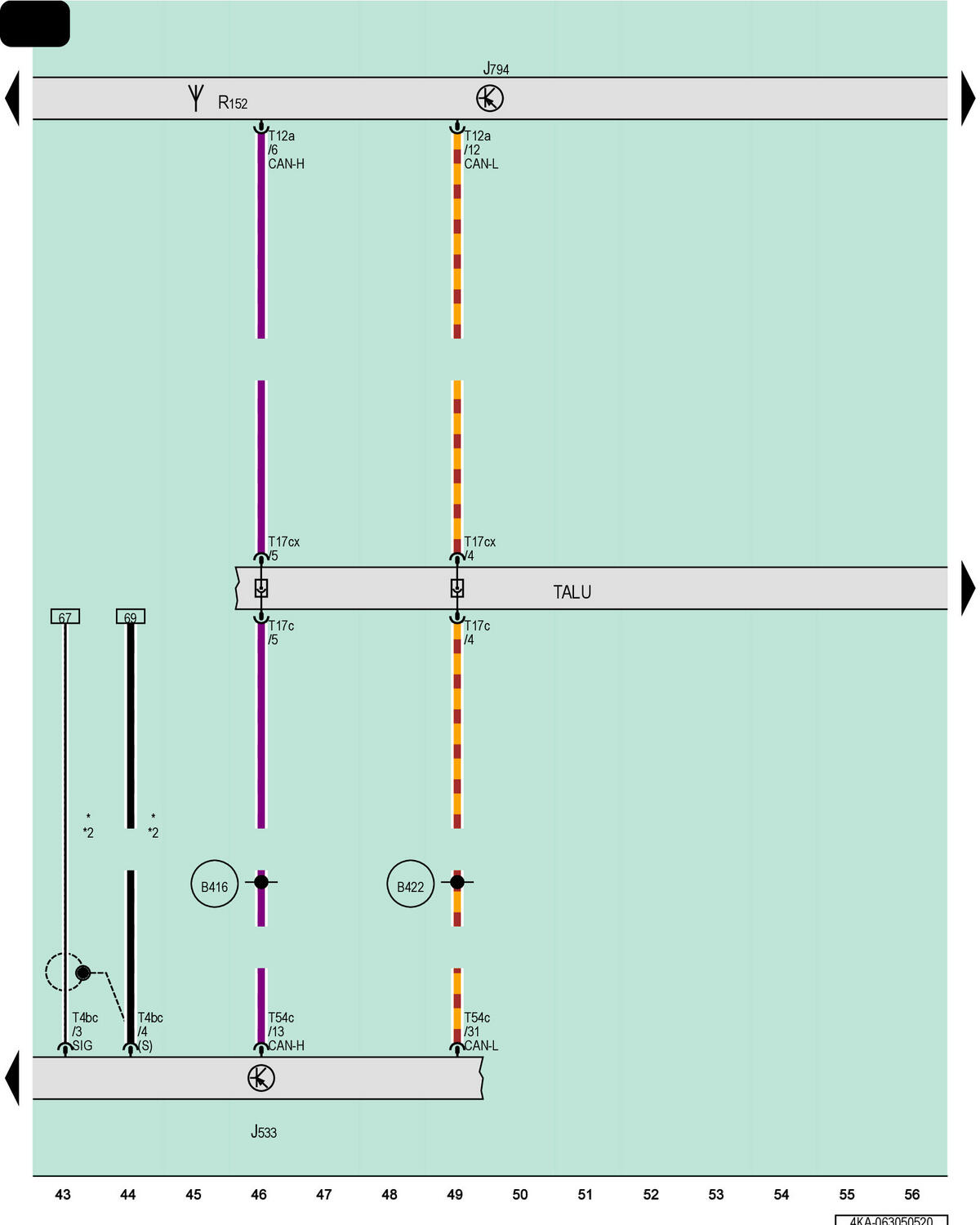

Information Electronics Control Module 1, BLUETOOTH Antenna

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

R152

Bluetooth Antenna

T4bc

4-Pin Connector, Purple

T12a

12-Pin Connector, Gray

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T54c

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

B416

Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)

B422

Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)

For Vehicles with Emergency Call Module

For Vehicles with Mobile Online Services
