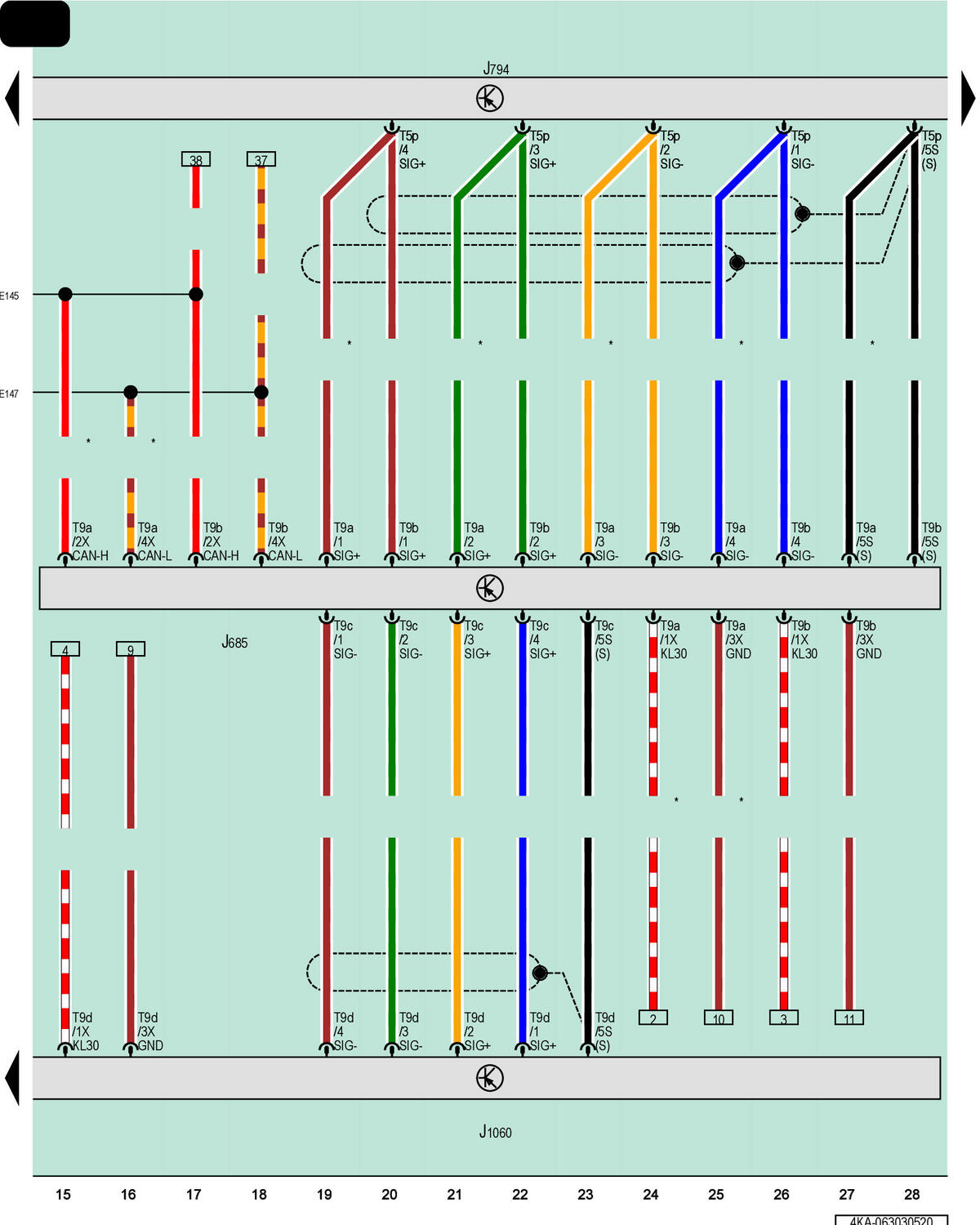

Front Information Display Control Head, Information Electronics Control Module 1, Front Information Display Control Head 2

Courtesy of AUDI OF AMERICA, LLC

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

J1060

Front Information Display Control Head 2

T5p

5-Pin Connector, Black

T9a

9-Pin Connector, Black

T9b

9-Pin Connector, Blue

T9c

9-Pin Connector, White

T9d

9-Pin Connector, White

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

*

For Vehicles with Highline Equipment
