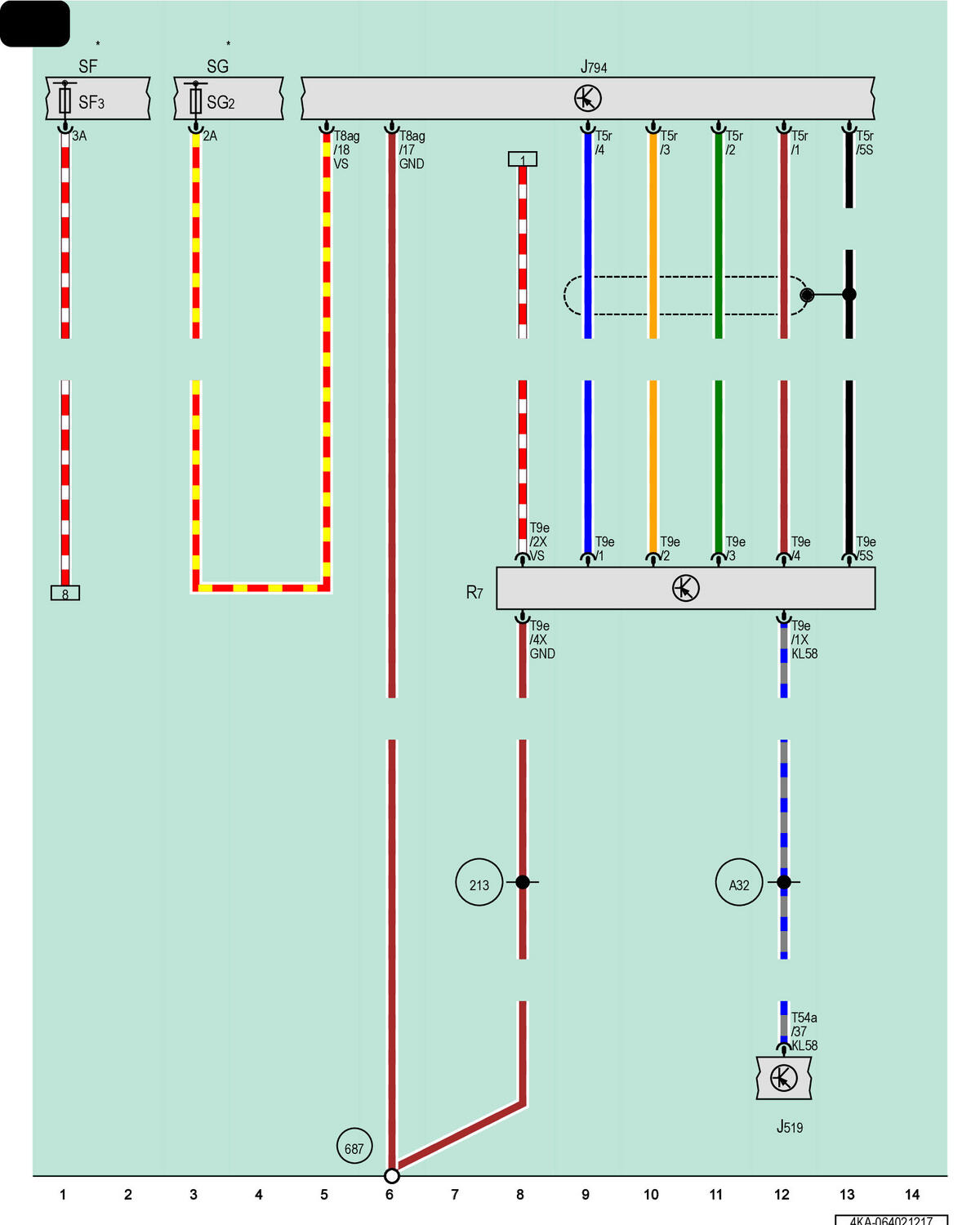

Vehicle Electrical System Control Module, Information Electronics Control Module 1, DVD Player

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J794

Information Electronics Control Module 1

R7

DVD Player

SF

Fuse Panel F

SG2

Fuse 2 on Fuse Panel G

SF3

Fuse 3 (On Fuse Panel F)

SG

Fuse Panel G

T5r

5-Pin Connector, Blue

T8ag

8-Pin Connector, Black

T9e

9-Pin Connector, Blue

T54a

54-Pin Connector, Black

213

Ground Connection (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

A32

Positive Connection (30) (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
