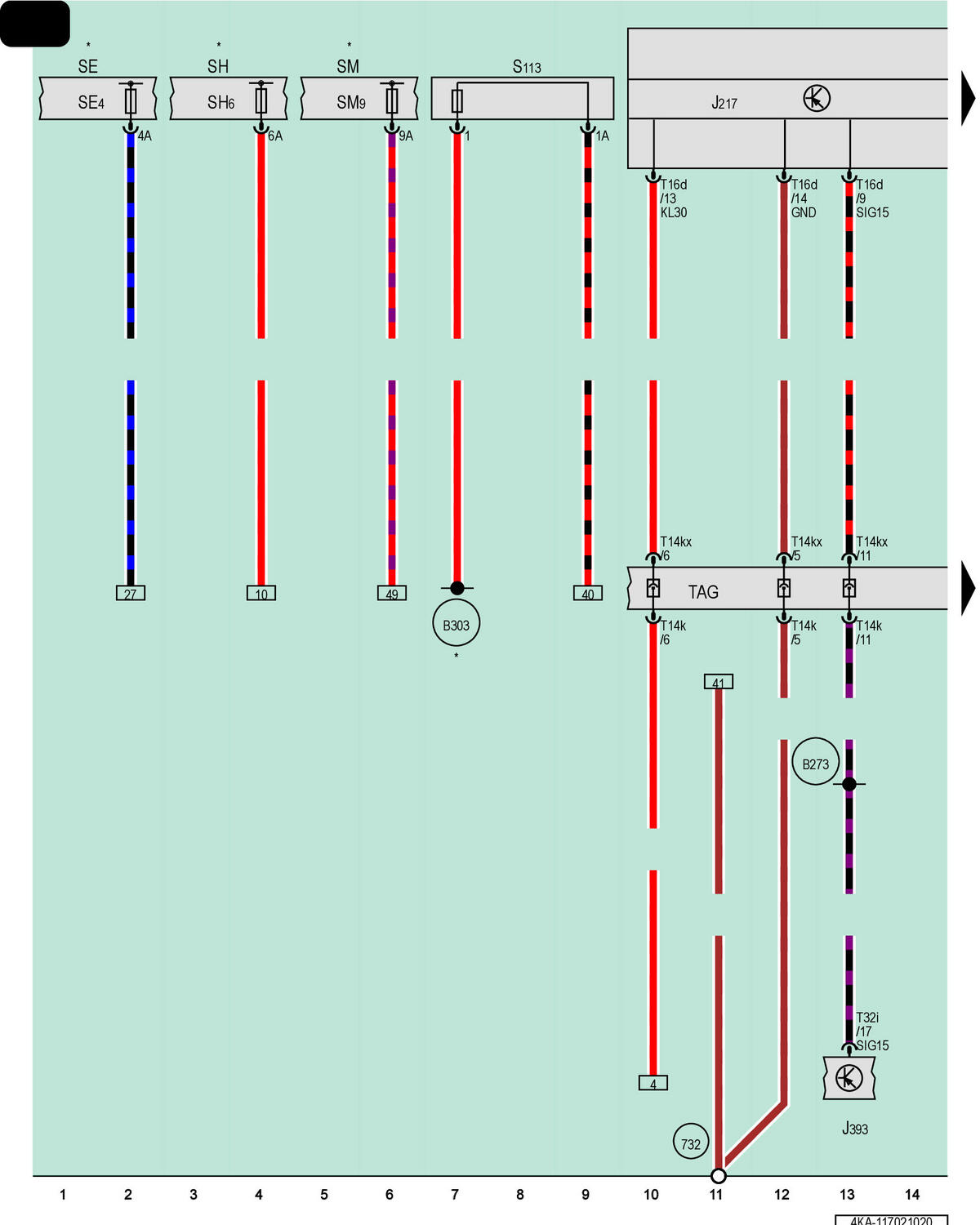

Transmission Control Module, Automatic Transmission Control Module Fuse

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J393

Comfort System Central Control Module

SE4

Fuse 4 on Fuse Panel E

SH6

Fuse 6 on Fuse Panel H

SM9

Fuse 9 on Fuse Panel M

S113

Automatic Transmission Control Module Fuse

SE

Fuse Panel E

SH

Fuse Panel H

SM

Fuse Panel M

T14k

14-Pin Connector, Black

T14kx

14-Pin Connector, Black

T16d

16-Pin Connector, Black

T32i

32-Pin Connector, Naturally Cloudy, Black

TAG

Automatic Transmission Coupling Point

732

Ground Connection 3 Under Driver Seat

B273

Positive Connection (15) (in Main Wiring Harness)

B303

Positive Connection 7 (30) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
