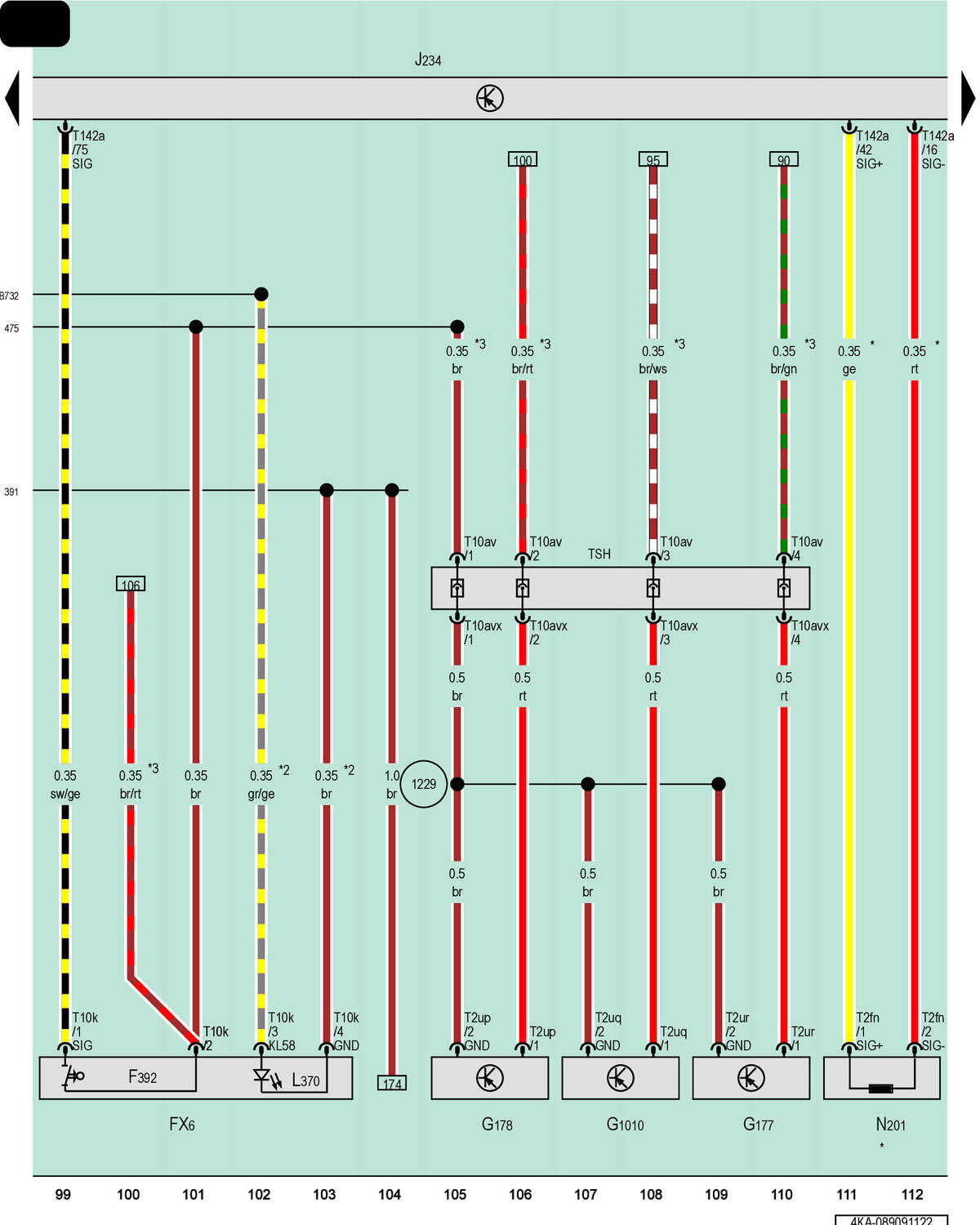

Passenger Side Second Row Seat Belt, Driver Side Rear Seat Occupant Detection Sensor, Passenger Side Rear Seat Occupant Detection Sensor, Rear Center Seat Occupant Detection Sensor, Airbag Control Module, Driver Side Rear Thorax Airbag Igniter
FX6
Passenger Side Second Row Seat Belt
F392
Passenger Side Second Row Seat Belt Switch
G177
Driver Side Rear Seat Occupant Detection Sensor
G178
Passenger Side Rear Seat Occupant Detection Sensor
G1010
Rear Center Seat Occupant Detection Sensor
J234
Airbag Control Module
L370
Passenger Side Rear Seat Belt Latch Lamp
N201
Driver Side Rear Thorax Airbag Igniter
T2fn
2-Pin Connector, Yellow
T2up
2-Pin Connector, White
T2uq
2-Pin Connector, White
T2ur
2-Pin Connector, White
T10av
10-Pin Connector, Black
T10avx
10-Pin Connector, Black
T10k
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TSH
Rear Seat Coupling Point
391
Ground Connection 26 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
1229
Ground Connection 3 (in Rear Seat Adjustment Wiring Harness)
B732
Connection 58s (in Main Wiring Harness) 2
*
For Vehicles with Rear Thorax Airbags
*2
Optional Equipment
*3
For Vehicles with a Seat Occupant Detection System
