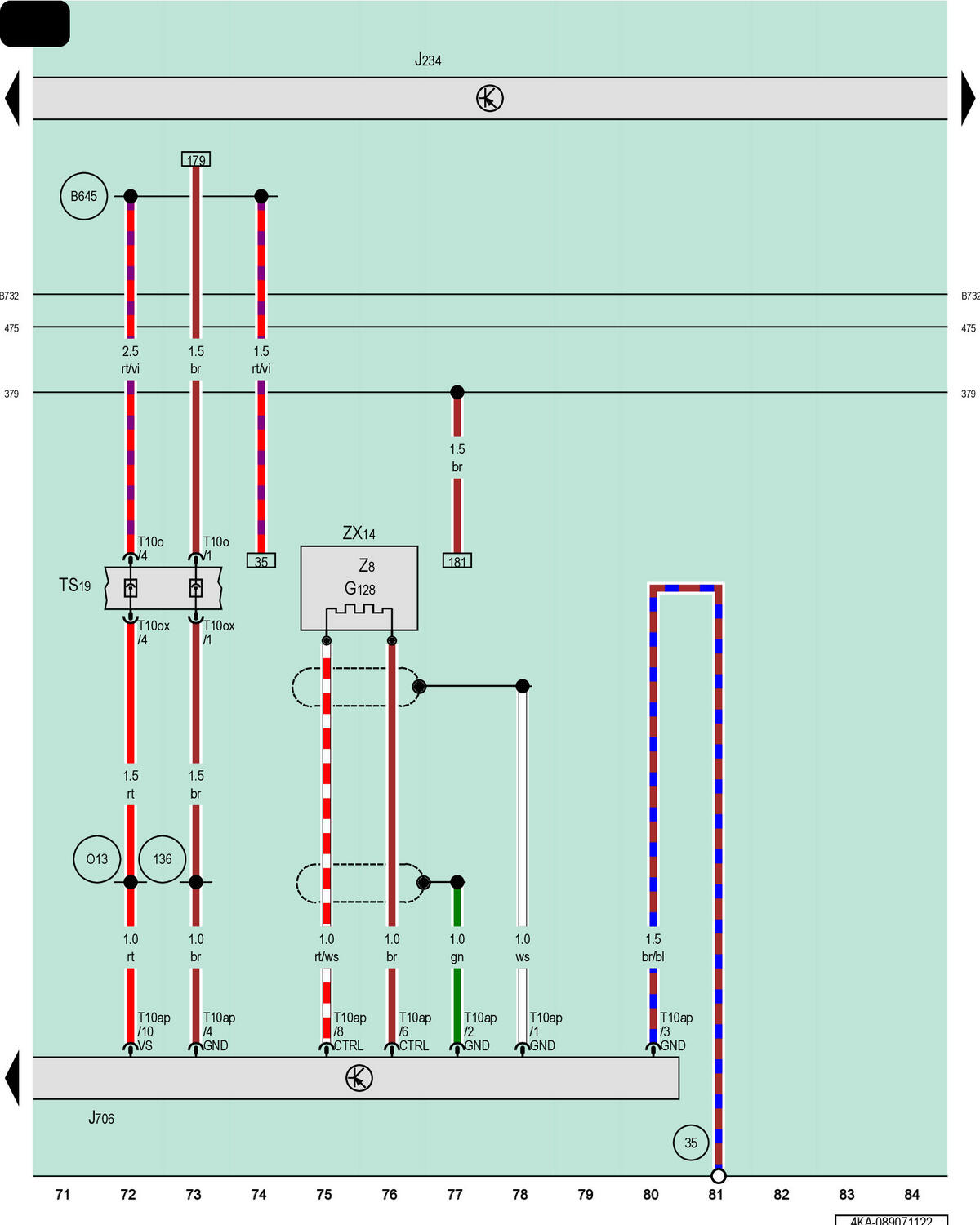

Passenger Seat Occupant Detection Sensor, Airbag Control Module, Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module
G128
Passenger Seat Occupant Detection Sensor
J234
Airbag Control Module
J706
Seat Occupant Detection System Control Module
T10ap
10-Pin Connector, Black
T10o
10-Pin Connector, White
T10ox
10-Pin Connector, White
TS19
Front Passenger Seat Coupling Point
Z8
Front Passenger Seat Heating Element
ZX14
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
35
Ground Connection Under Front Passenger Seat
136
Ground Connection 2 (in Heated Seats Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
B645
Heated Seat Connection 2 (in Main Wiring Harness)
B732
Connection 58s (in Main Wiring Harness) 2
O13
Connection 2 (in Heated Seats Wiring Harness)
