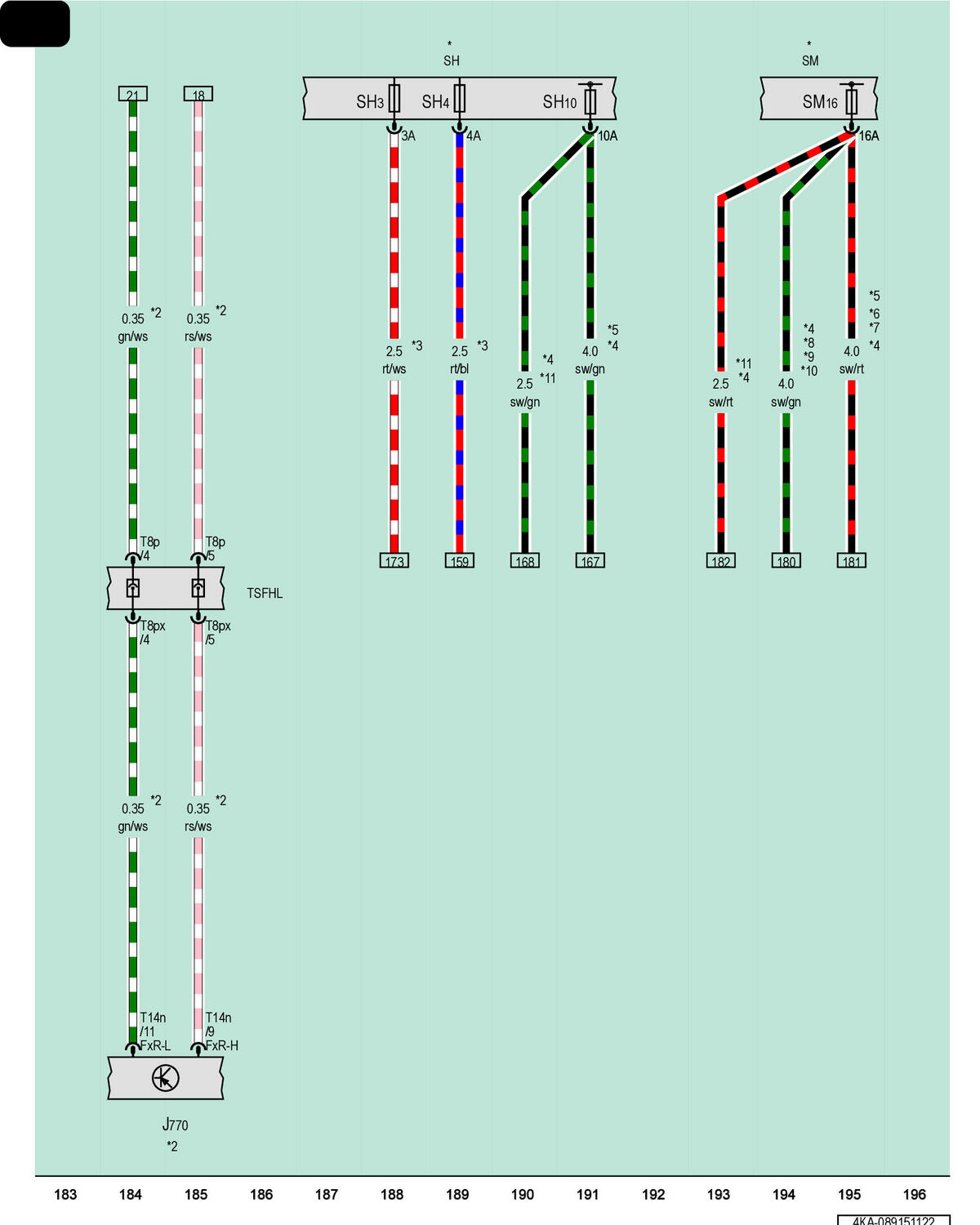

Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J770

Lane Change Assistance Control Module 2

SH

Fuse Panel H

SH3

Fuse 3 on Fuse Panel H

SH4

Fuse 4 on Fuse Panel H

SH10

Fuse 10 on Fuse Panel H

SM

Fuse Panel M

SM16

Fuse 16 on Fuse Panel M

T8p

8-Pin Connector, Black

T8px

8-Pin Connector, Black

T14n

14-Pin Connector, Black

TSFHL

Coupling Point on Left Rear Bumper

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Lane Change Assistance

*3

For Vehicles with Reversible Seat Belt Tensioners

*4

Optional Equipment

*5

Through August 2021

*6

Through November 2020

*7

From March 2021

*8

From November 2020

*9

Through March 2021

*10

For Vehicles Without China Equipment

*11

From August 2021
