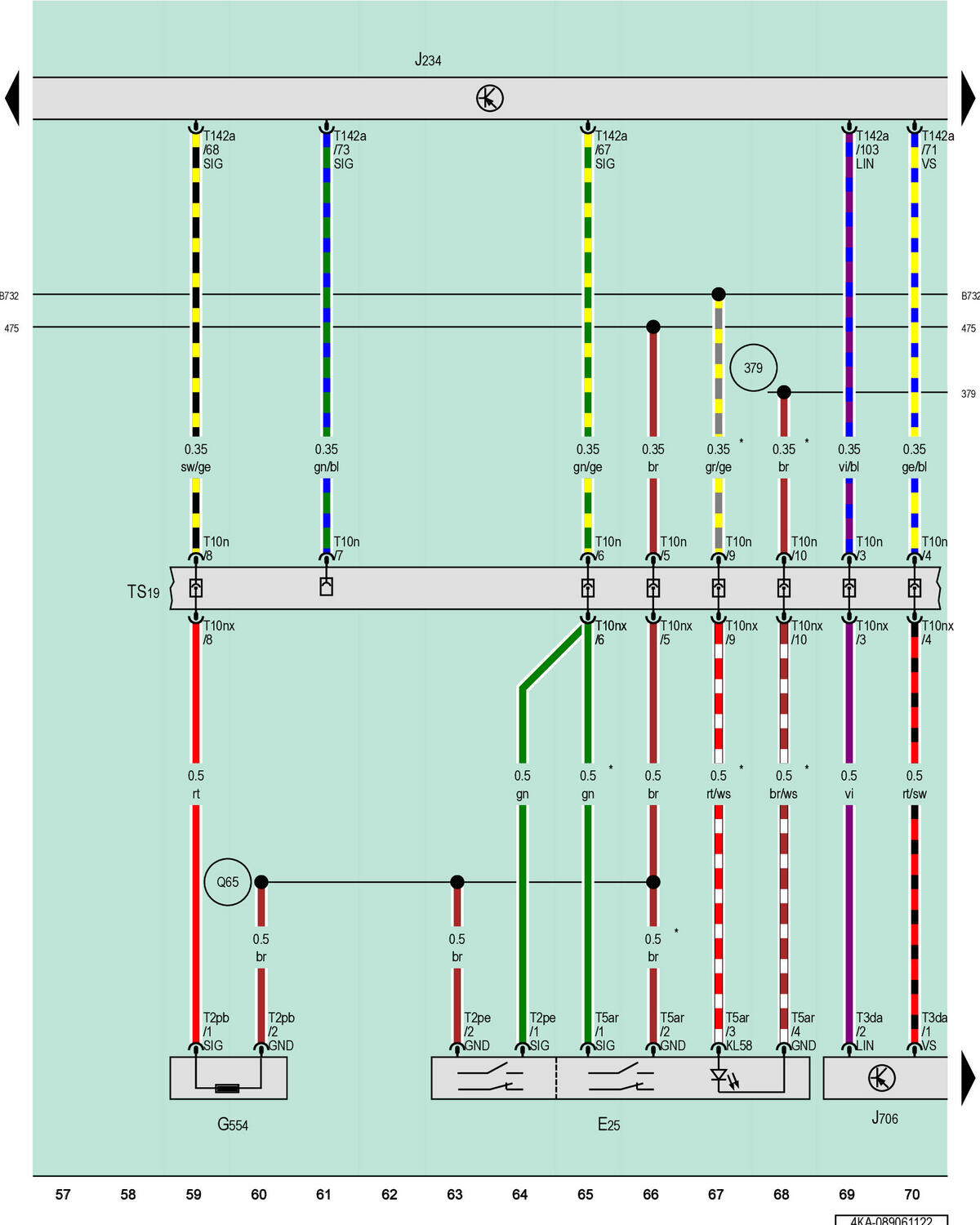

Front Passenger Seat Belt Switch, Front Passenger Seat Position Sensor, Airbag Control Module, Seat Occupant Detection System Control Module

Courtesy of AUDI OF AMERICA, LLC

E25

Front Passenger Seat Belt Switch

G554

Front Passenger Seat Position Sensor

J234

Airbag Control Module

J706

Seat Occupant Detection System Control Module

T2pb

2-Pin Connector

T2pe

2-Pin Connector, Black

T3da

3-Pin Connector, Black

T5ar

5-Pin Connector, Black

T10n

10-Pin Connector, Black

T10nx

10-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TS19

Front Passenger Seat Coupling Point

379

Ground Connection 14 (in Main Wiring Harness)

475

Airbag Ground Connection (in Main Wiring Harness)

B732

Connection 58s (in Main Wiring Harness) 2

Q65

Connection (in Seat Belt Warning System Wiring Harness)

*

Optional Equipment
