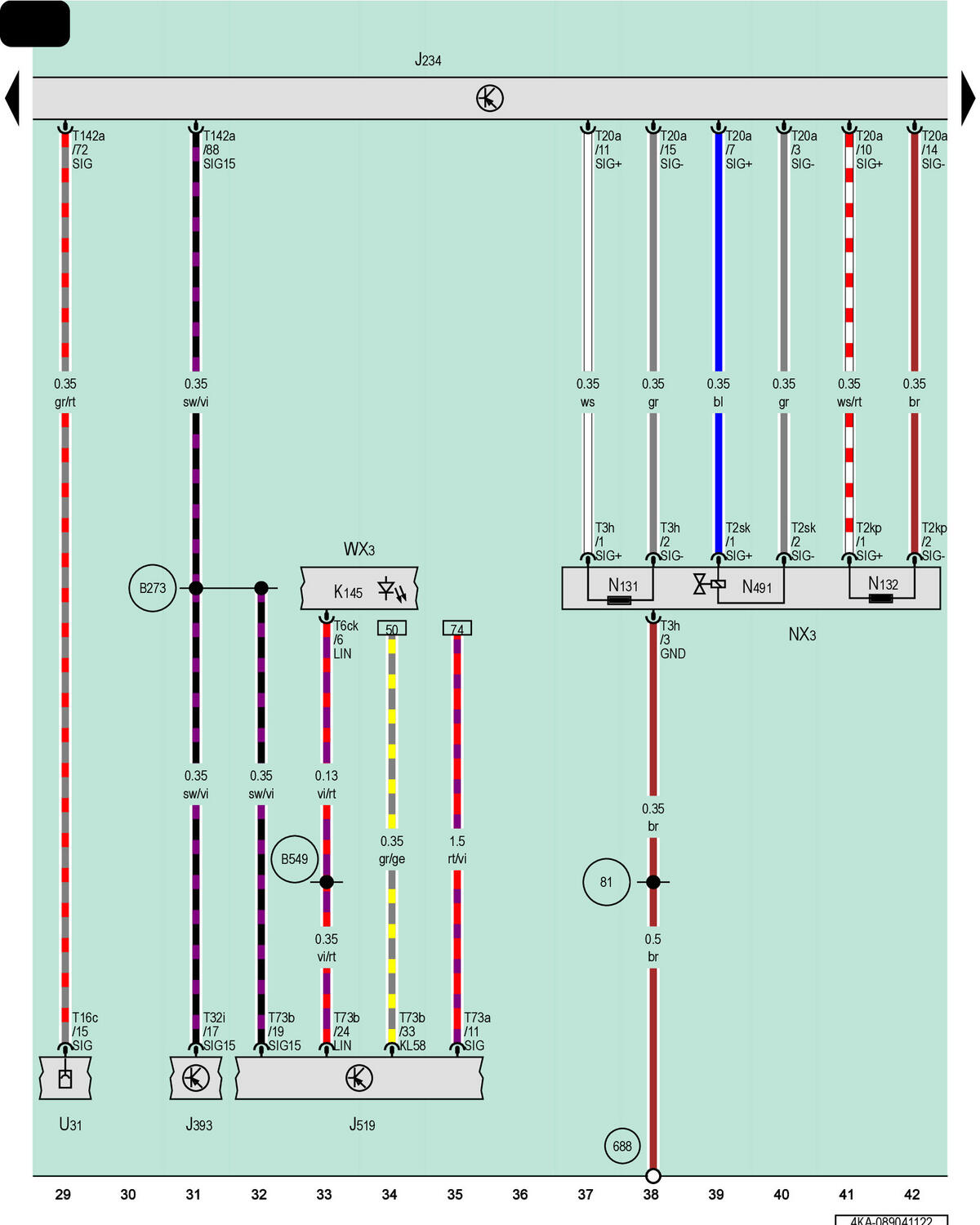

Airbag Control Module, Vehicle Electrical System Control Module, Front Passenger Airbag -Disabled- Indicator Lamp, Front Passenger Airbag Unit

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

K145

Front Passenger Airbag -Disabled- Indicator Lamp

NX3

Front Passenger Airbag Unit

N131

Front Passenger Airbag Igniter 1

N132

Front Passenger Airbag Igniter 2

N491

Front Passenger Airbag Release Valve Igniter

T2kp

2-Pin Connector, Yellow

T2sk

2-Pin Connector, Yellow

T3h

3-Pin Connector, Yellow

T6ck

6-Pin Connector, Black

T16c

16-Pin Connector

T20a

20-Pin Connector, Yellow

T32i

32-Pin Connector, Naturally Cloudy, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

T142a

142-Pin Connector, Yellow

U31

Diagnostic Connection

WX3

Front Roof Module

Ground Connection 1 (in Instrument Panel Wiring Harness)

688

Ground Connection 2 on Center Tunnel

B273

Positive Connection (15) (in Main Wiring Harness)

B549

LIN Bus Connection 2 (in Main Wiring Harness)
