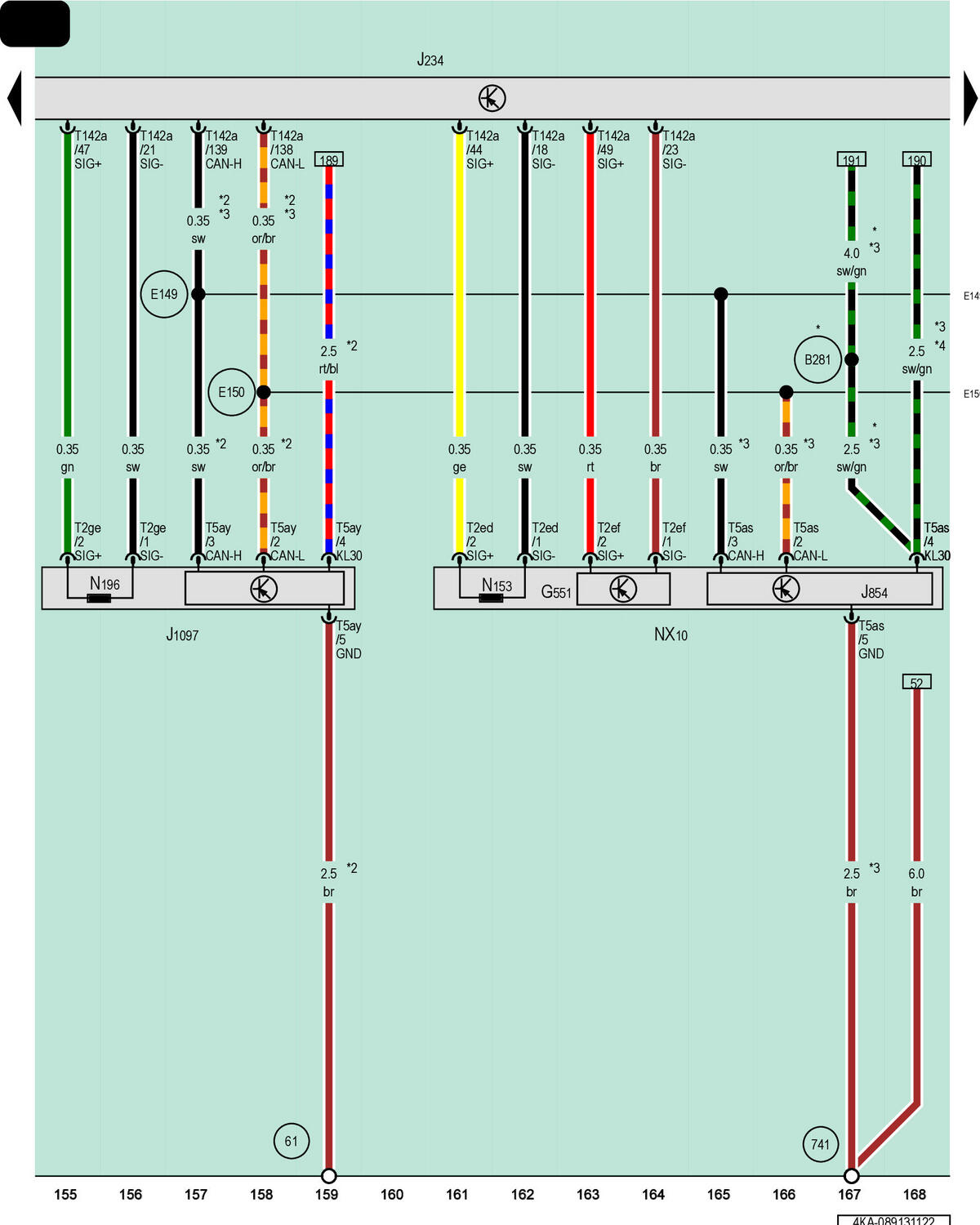

Airbag Control Module, Left Rear Seat Belt TENSIONER Control Module, Left Front Seat Belt
G551
Driver Belt Force Limiter
J234
Airbag Control Module
J854
Left Front Seat Belt Tensioner Control Module
J1097
Left Rear Seat Belt Tensioner Control Module
NX10
Left Front Seat Belt
N153
Driver Seat Belt Tensioner Igniter 1
N196
Driver Side Rear Seat Belt Tensioner Igniter
T2ed
2-Pin Connector, Yellow
T2ef
2-Pin Connector, Yellow
T2ge
2-Pin Connector, Yellow
T5as
5-Pin Connector, Naturally Cloudy
T5ay
5-Pin Connector, Naturally Cloudy
T142a
142-Pin Connector, Yellow
61
Ground Connection on Left C-Pillar
741
Ground Connection Under Left Front Seat
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
E149
Connection 1 (CAN Bus Airbag Control Module, High)
E150
Connection 1 (CAN Bus Airbag Control Module, Low)
*
Through August 2021
*2
For Vehicles with Reversible Seat Belt Tensioners
*3
Optional Equipment
*4
From August 2021
