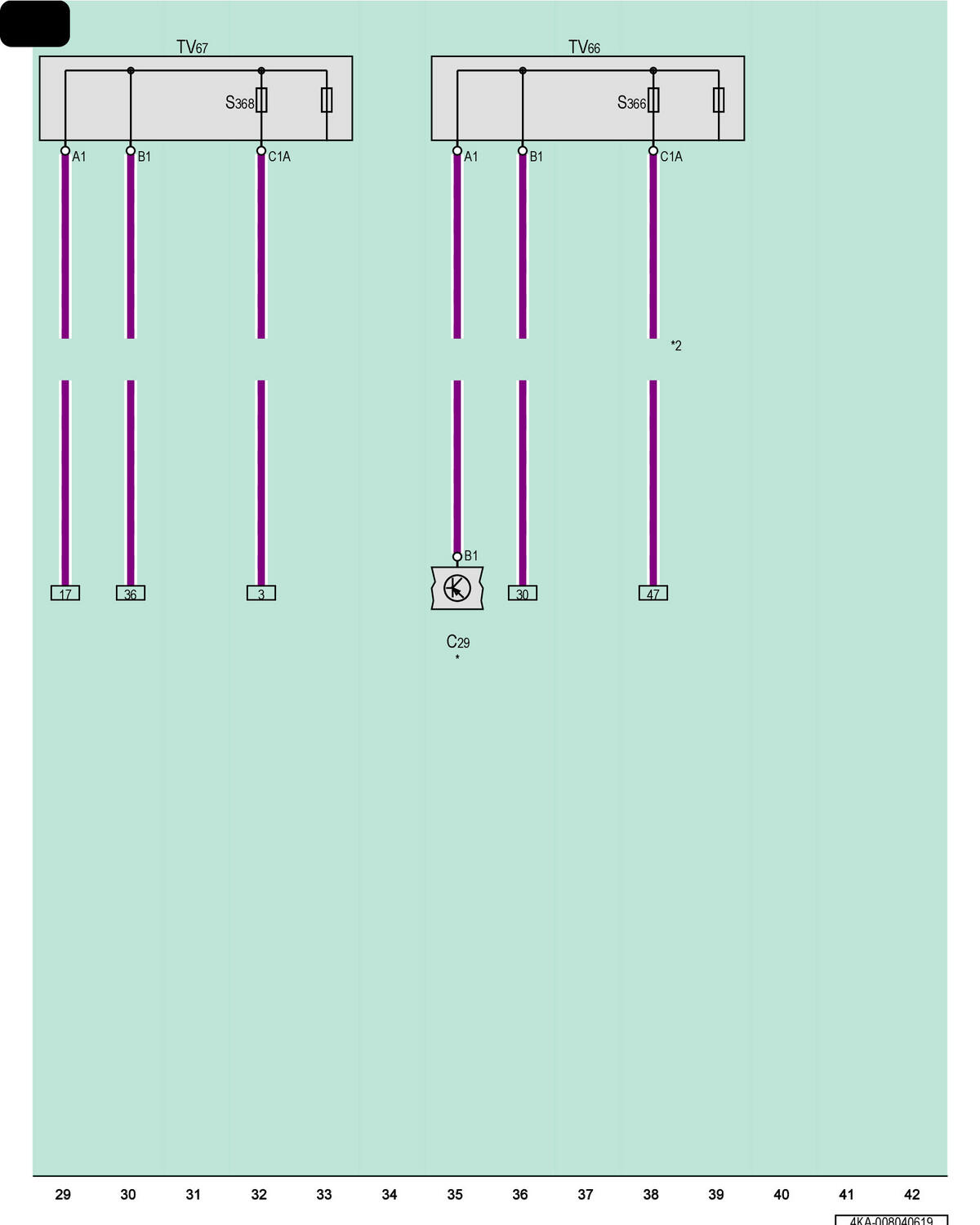

Starter Generator, Terminal 40 Wire Junction, Terminal 40 Wire Junction 2

Courtesy of AUDI OF AMERICA, LLC

C29

Starter Generator

S366

Terminal 40 Wire Junction Fuse 1

S368

Terminal 40 Wire Junction 2 Fuse 1

TV66

Terminal 40 Wire Junction

TV67

Terminal 40 Wire Junction 2

*

Refer to Applicable Battery Wiring Diagram

*2

Depending on Equipment
