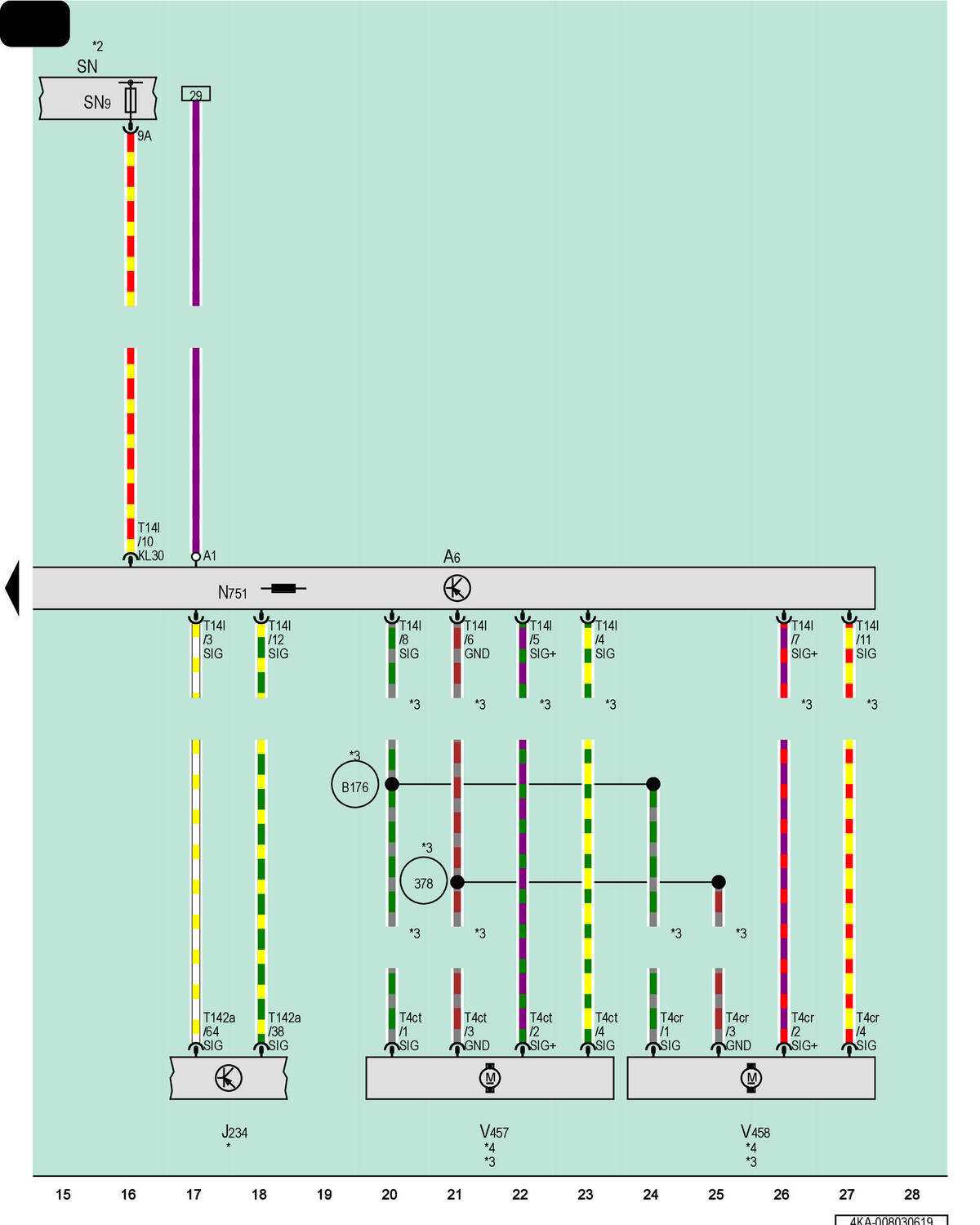

Battery, 48 V, Battery Fan 1, Battery Fan 2

Courtesy of AUDI OF AMERICA, LLC

A6

Battery, 48 V

J234

Airbag Control Module

N751

Battery Interrupt Igniter, 48 Volt

SN

Fuse Panel N

SN9

Fuse 9 on Fuse Panel N

T4cr

4-Pin Connector, Black

T4ct

4-Pin Connector, Black

T14l

14-Pin Connector, Black

T142a

142-Pin Connector, Yellow

V457

Battery Fan 1

V458

Battery Fan 2

378

Ground Connection 13 (in Main Wiring Harness)

B176

Fresh Air Blower Positive Connection (in Interior Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Depending on Equipment

*4

Pre-Wired Component
