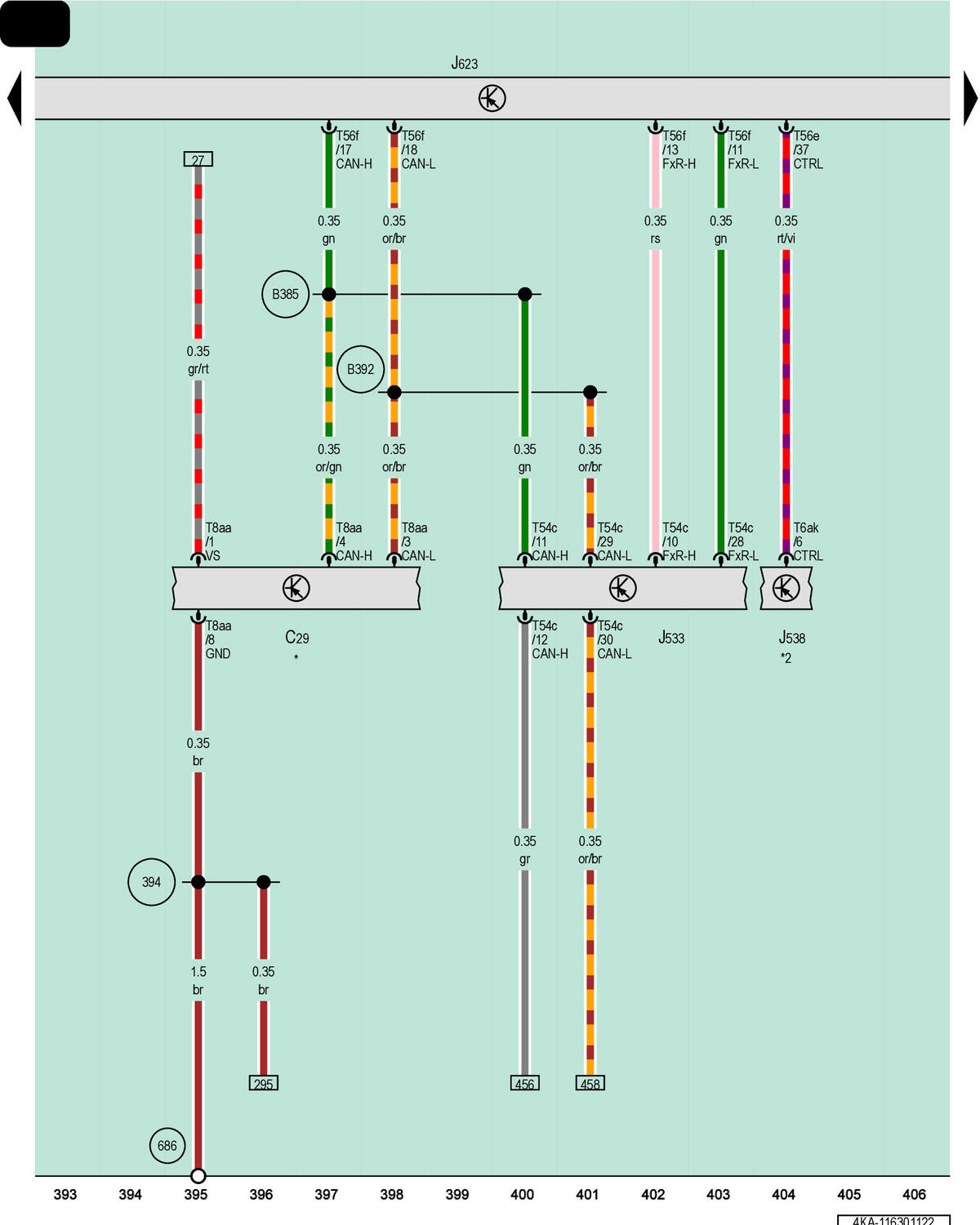

Starter Generator, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

C29

Starter Generator

J533

Data Bus on Board Diagnostic Interface

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

T6ak

6-Pin Connector, Black

T8aa

8-Pin Connector, Black

T54c

54-Pin Connector, Black

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

394

Ground Connection 29 (in Main Wiring Harness)

686

Ground Connection 2 on Right Front Longitudinal Member

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram

*2

Refer to Applicable Fuel System Wiring Diagram
