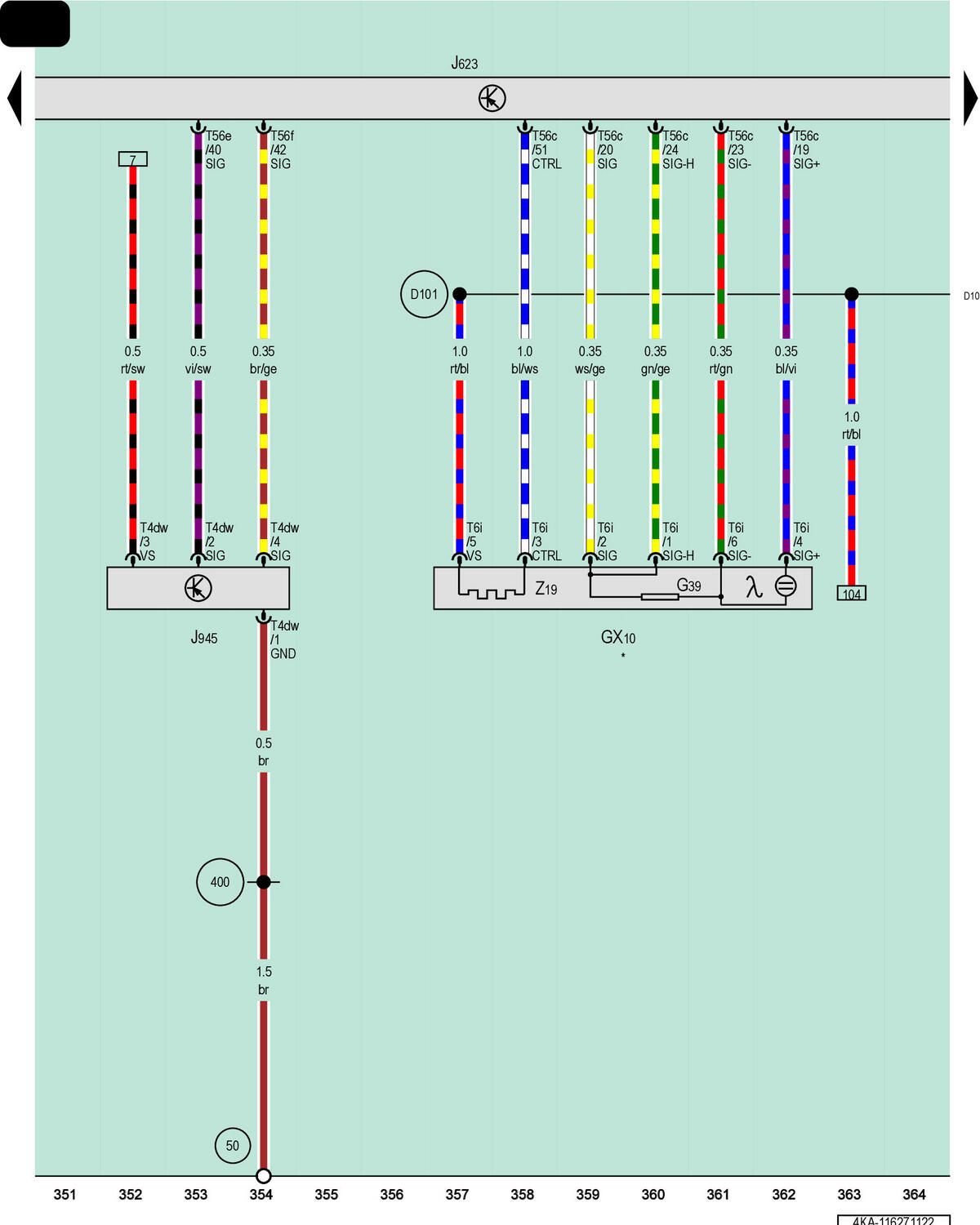

Oxygen Sensor 1 Before Catalytic Converter, Engine/Motor Control Module, Exhaust Door Control Unit 2

Courtesy of AUDI OF AMERICA, LLC

GX10

Oxygen Sensor 1 Before Catalytic Converter

G39

Heated Oxygen Sensor

J623

Engine/Motor Control Module

J945

Exhaust Door Control Unit 2

T4dw

4-Pin Connector, Black

T6i

6-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

Z19

Oxygen Sensor Heater

50

Ground Connection in Luggage Compartment, Left

400

Ground Connection 35 (in Main Wiring Harness)

D101

Connection 1 (in Engine/Motor Compartment Wiring Harness)

*

Pre-Wired Component
