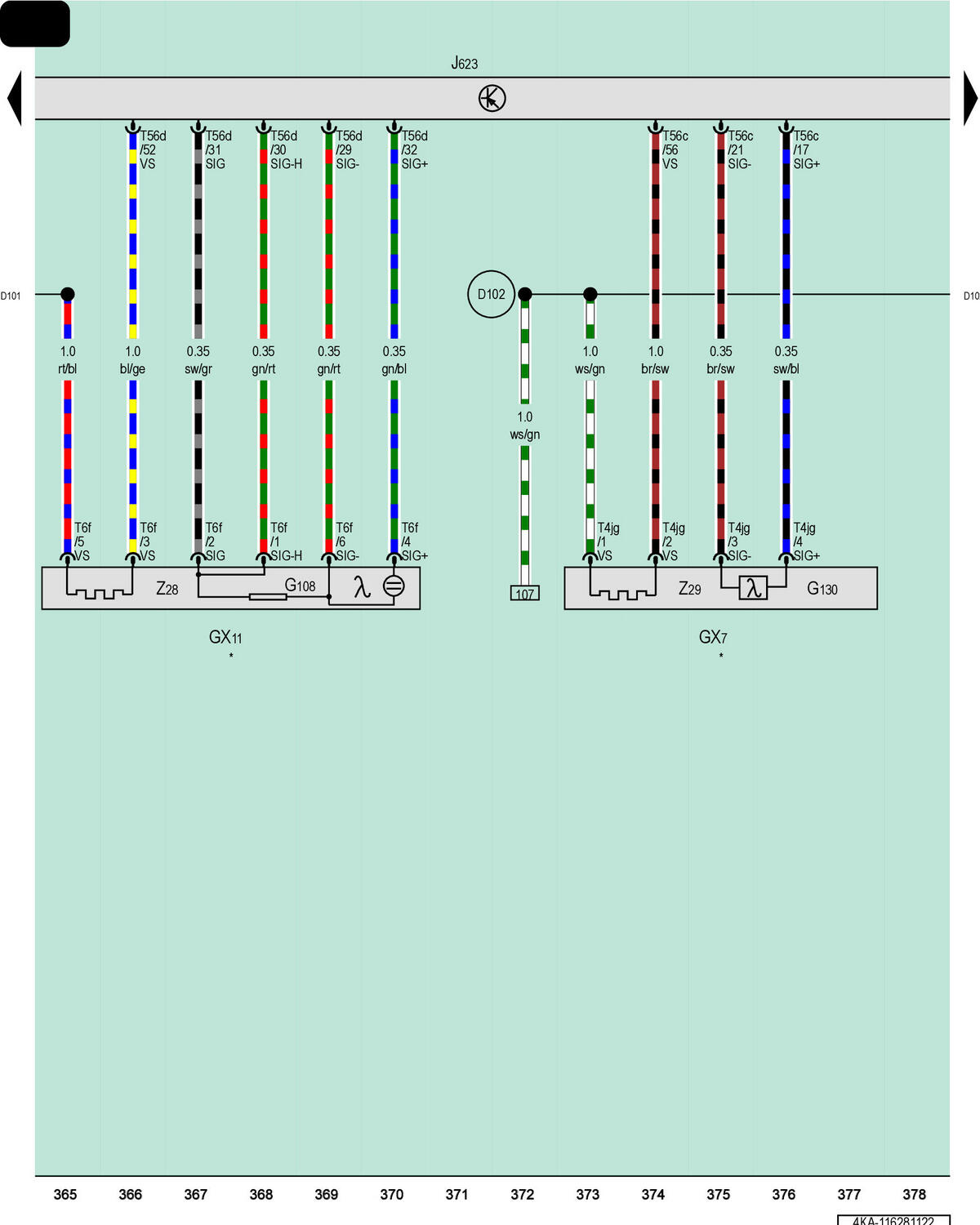

Oxygen Sensor 1 After Catalytic Converter, Oxygen Sensor 2 Before Catalytic Converter, Engine/Motor Control Module
GX7
Oxygen Sensor 1 After Catalytic Converter
GX11
Oxygen Sensor 2 Before Catalytic Converter
G108
Heated Oxygen Sensor 2
G130
Oxygen Sensor After Catalytic Converter
J623
Engine/Motor Control Module
T4jg
4-Pin Connector, Black
T6f
6-Pin Connector, Brown
T56c
56-Pin Connector, Black, Blue
T56d
56-Pin Connector, Black, Purple
Z28
Oxygen Sensor 2 Heater
Z29
Heater for Oxygen Sensor 1 After Catalytic Converter
D101
Connection 1 (in Engine/Motor Compartment Wiring Harness)
D102
Connection 2 (in Engine/Motor Compartment Wiring Harness)
*
Pre-Wired Component
