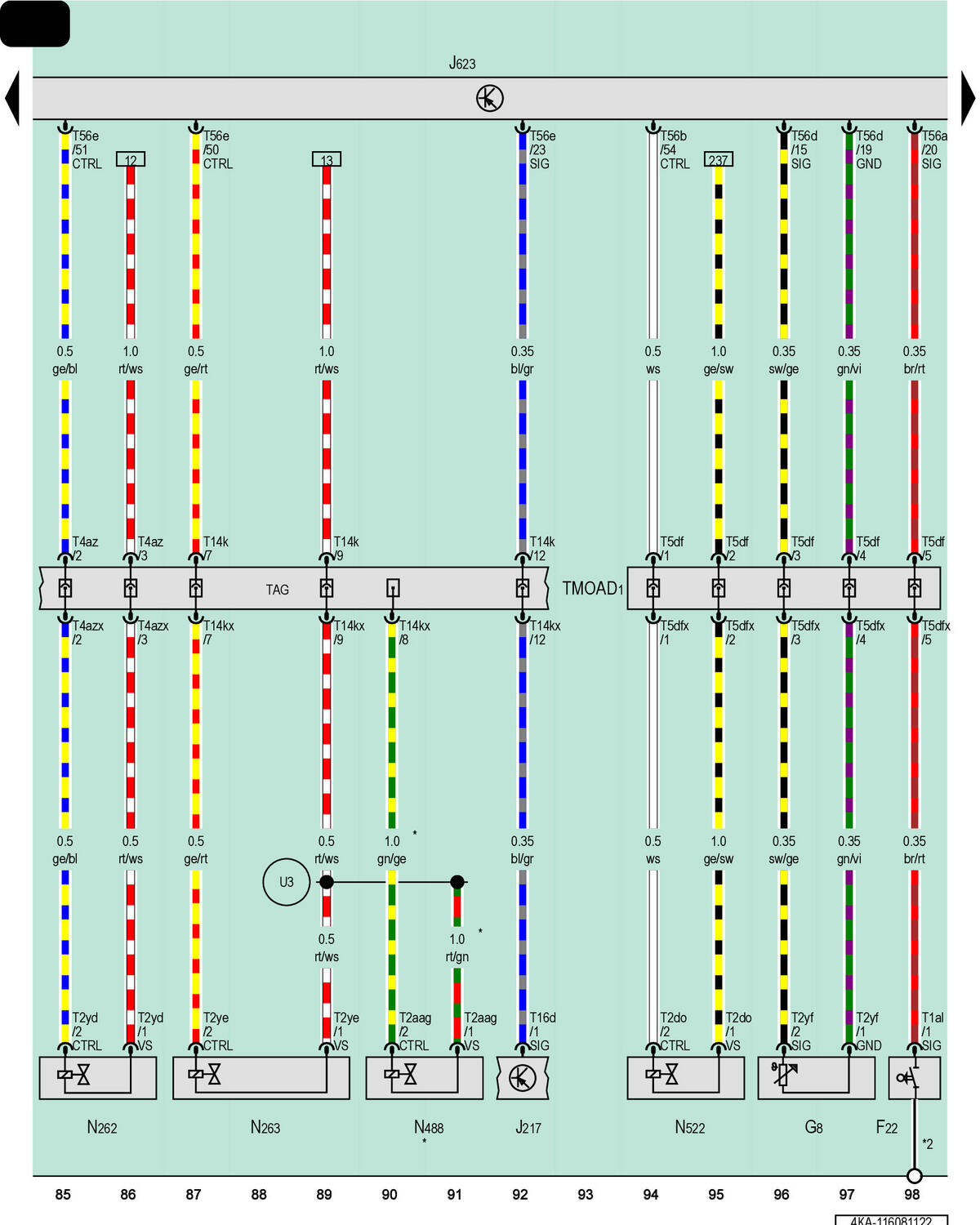

Oil Pressure Switch, Oil Temperature Sensor, Transmission Control Module, Engine/Motor Control Module, Transmission Mount Valve 1, Transmission Mount Valve 2, Transmission Coolant Valve, Piston Cooling Nozzle Control Valve

Courtesy of AUDI OF AMERICA, LLC

F22

Oil Pressure Switch

G8

Oil Temperature Sensor

J217

Transmission Control Module

J623

Engine/Motor Control Module

N262

Transmission Mount Valve 1

N263

Transmission Mount Valve 2

N488

Transmission Coolant Valve

N522

Piston Cooling Nozzle Control Valve

T1al

1-Pin Connector, Black

T2aag

2-Pin Connector, Brown

T2do

2-Pin Connector, Black

T2yd

2-Pin Connector, Naturally Cloudy

T2ye

2-Pin Connector, Naturally Cloudy

T2yf

2-Pin Connector, Black

T4az

4-Pin Connector, Black

T4azx

4-Pin Connector, Black

T5df

5-Pin Connector, Black

T5dfx

5-Pin Connector, Black

T14k

14-Pin Connector, Black

T14kx

14-Pin Connector, Black

T16d

16-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green

TAG

Automatic Transmission Coupling Point

TMOAD1

Engine Pre-Wiring Coupling Point 1, Adapter Cable

U3

Connection 1 (in Automatic Transmission Wiring Harness)

*

From September 2019

*2

Ground Supply via the Housing
