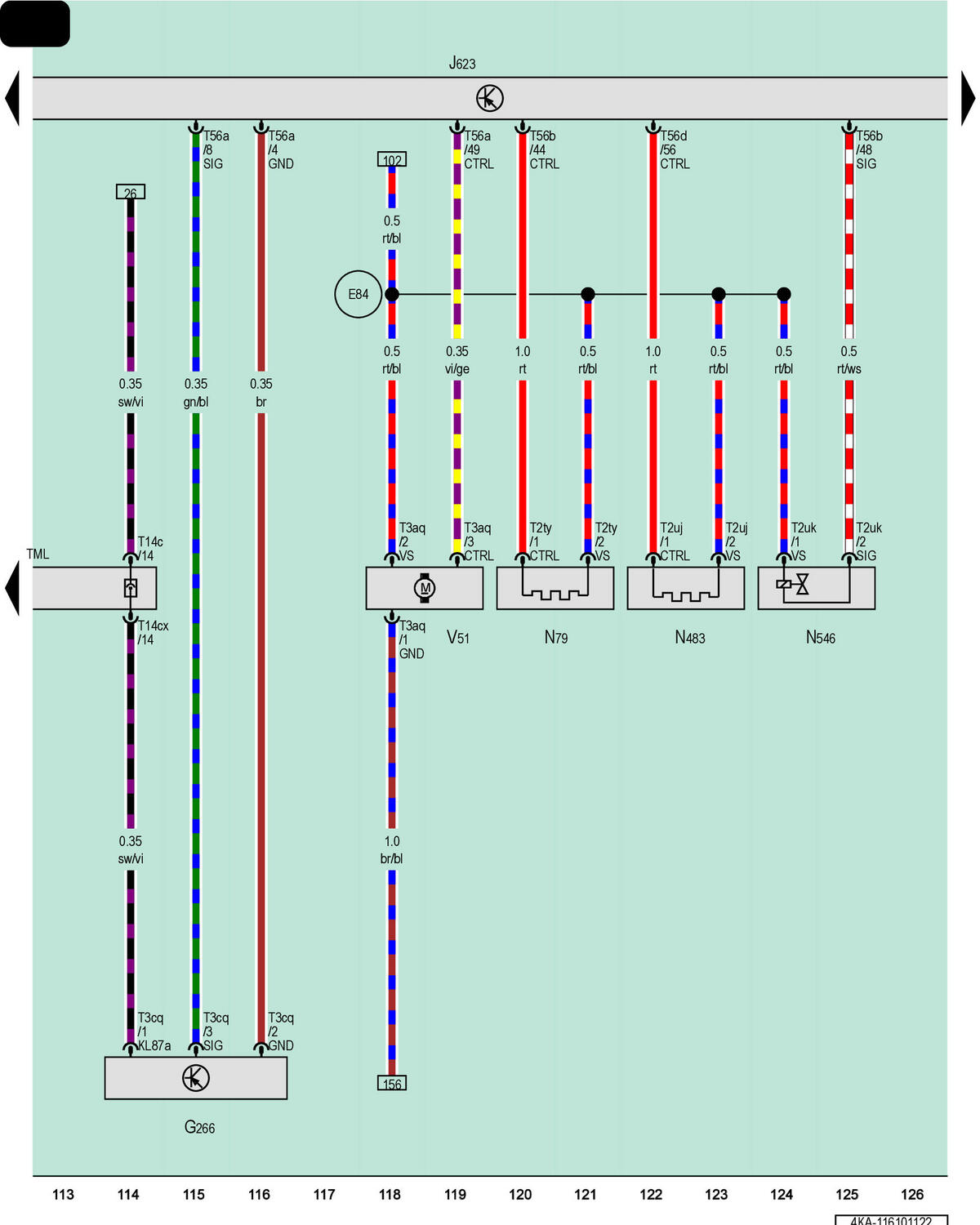

Oil Level Thermal Sensor, Engine/Motor Control Module, Positive Crankcase Ventilation Heating Element, Crankcase Ventilation Thermal Resistor 2, Crankcase Ventilation Valve, After-Run Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

G266

Oil Level Thermal Sensor

J623

Engine/Motor Control Module

N79

Positive Crankcase Ventilation Heating Element

N483

Crankcase Ventilation Thermal Resistor 2

N546

Crankcase Ventilation Valve

T2ty

2-Pin Connector, Black

T2uj

2-Pin Connector, Black

T2uk

2-Pin Connector, Black

T3aq

3-Pin Connector, Black

T3cq

3-Pin Connector, Black

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

TML

Coupling Point in Engine/Motor Compartment, Left

V51

After-Run Coolant Pump

E84

Connection 87a (in Engine Wiring Harness) 8
