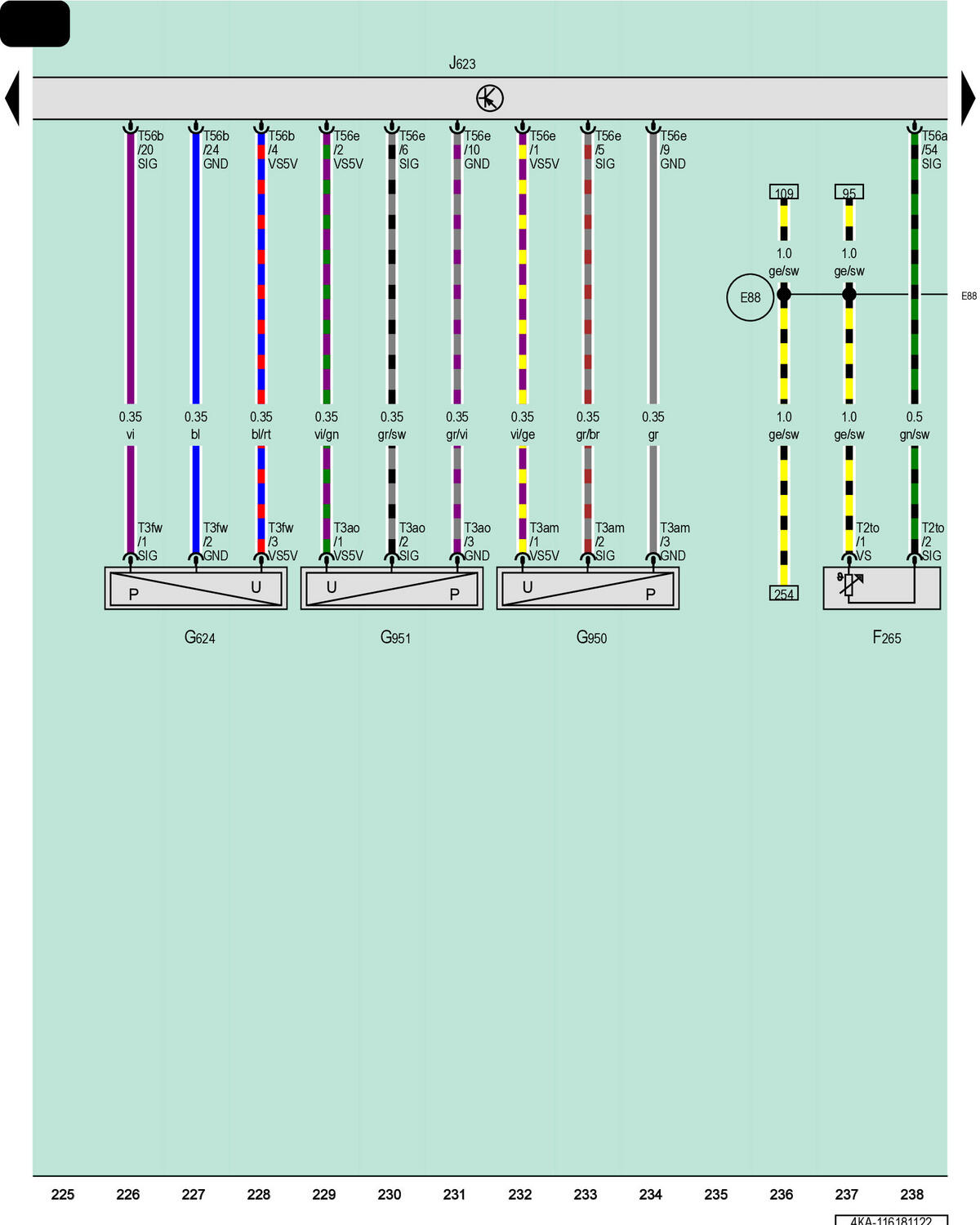

Map Controlled Engine Cooling Thermostat, Fuel Pressure Sensor 2, Tank Ventilation Pressure Sensor 1, Tank Ventilation Pressure Sensor 2, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F265

Map Controlled Engine Cooling Thermostat

G624

Fuel Pressure Sensor 2

G950

Tank Ventilation Pressure Sensor 1

G951

Tank Ventilation Pressure Sensor 2

J623

Engine/Motor Control Module

T2to

2-Pin Connector, Black

T3am

3-Pin Connector, Black

T3ao

3-Pin Connector, Black

T3fw

3-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

T56b

56-Pin Connector, Black, White

T56e

56-Pin Connector, Black, Green

E88

Connection 87a (in Engine Wiring Harness) 12
