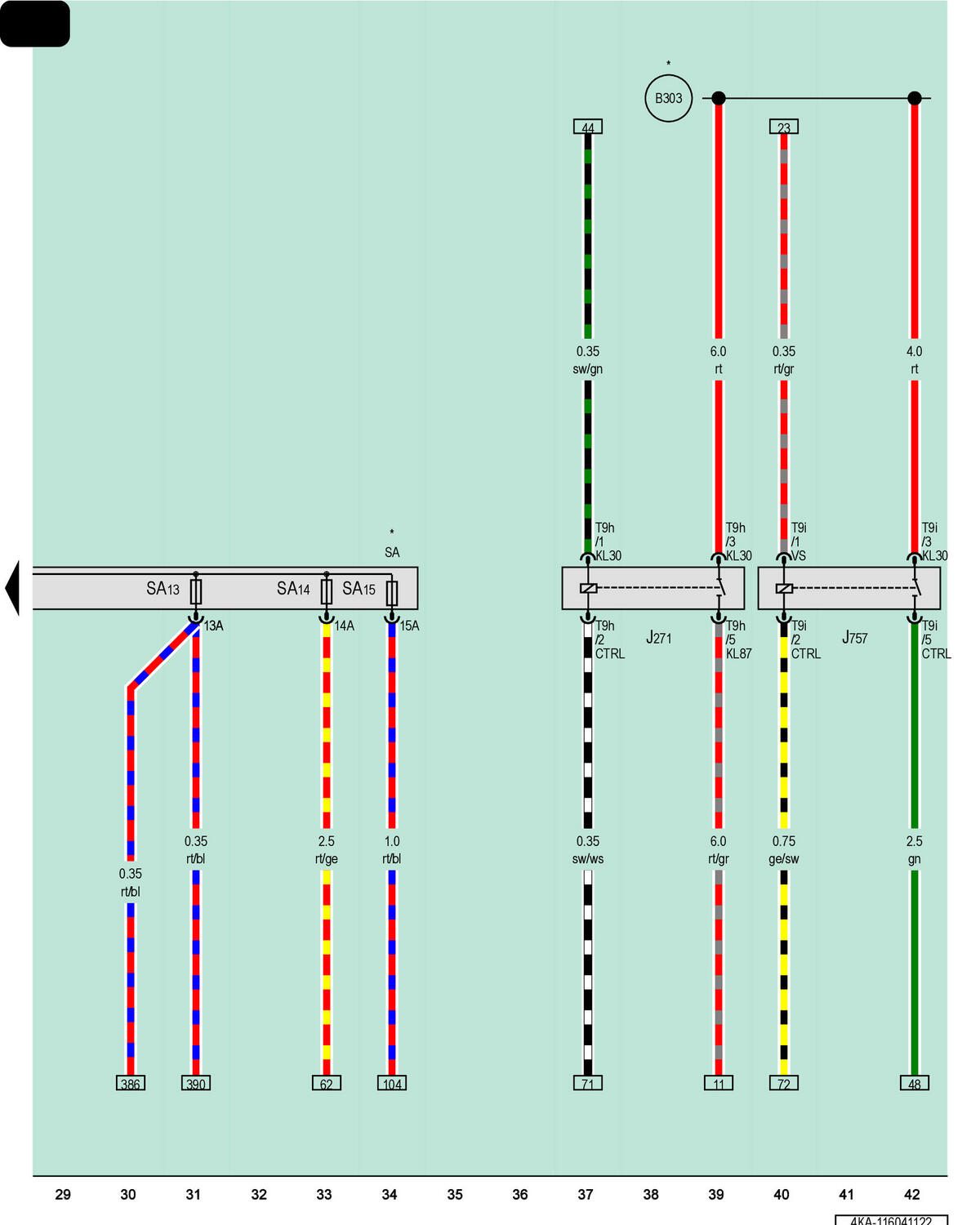

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay, Fuse Panel A

Courtesy of AUDI OF AMERICA, LLC

J271

Motronic Engine Control Module Power Supply Relay

J757

Engine Component Power Supply Relay

Fuse Panel A

SA13

Fuse 13 (On Fuse Panel A)

SA14

Fuse 14 (On Fuse Panel A)

SA15

Fuse 15 (On Fuse Panel A)

T9h

9-Pin Connector, Brown

T9i

9-Pin Connector, Red

B303

Positive Connection 7 (30) (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions
