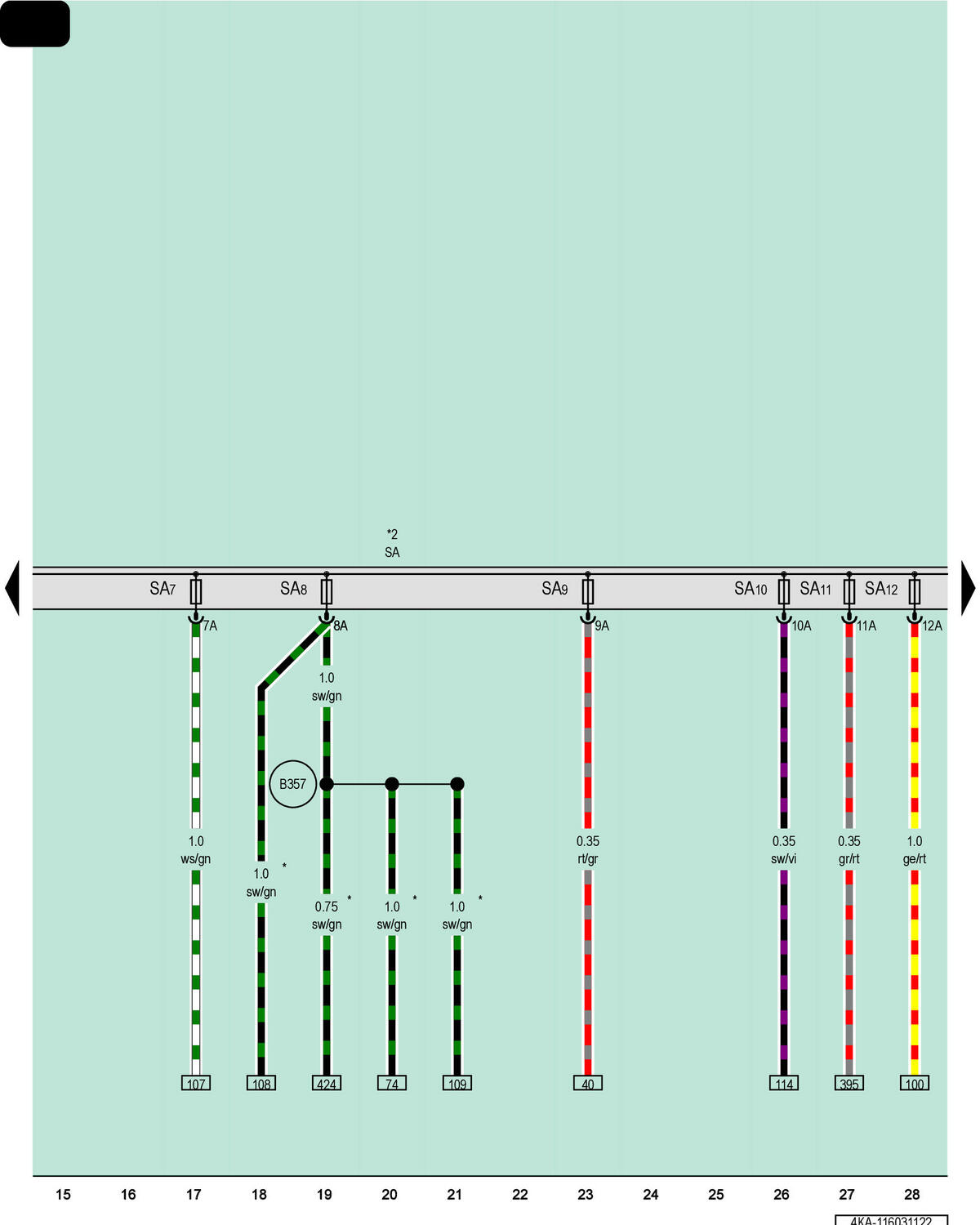

Fuse Panel A

Courtesy of AUDI OF AMERICA, LLC

SA

Fuse Panel A

SA7

Fuse 7 (On Fuse Panel A)

SA8

Fuse 8 (On Fuse Panel A)

SA9

Fuse 9 (On Fuse Panel A)

SA10

Fuse 10 (On Fuse Panel A)

SA11

Fuse 11 (On Fuse Panel A)

SA12

Fuse 12 (On Fuse Panel A)

B357

Positive Connection 8 (87a) (in Main Wiring Harness)

*

Depending on Equipment

*2

Refer to Applicable Wiring Diagram for Fuse Positions
