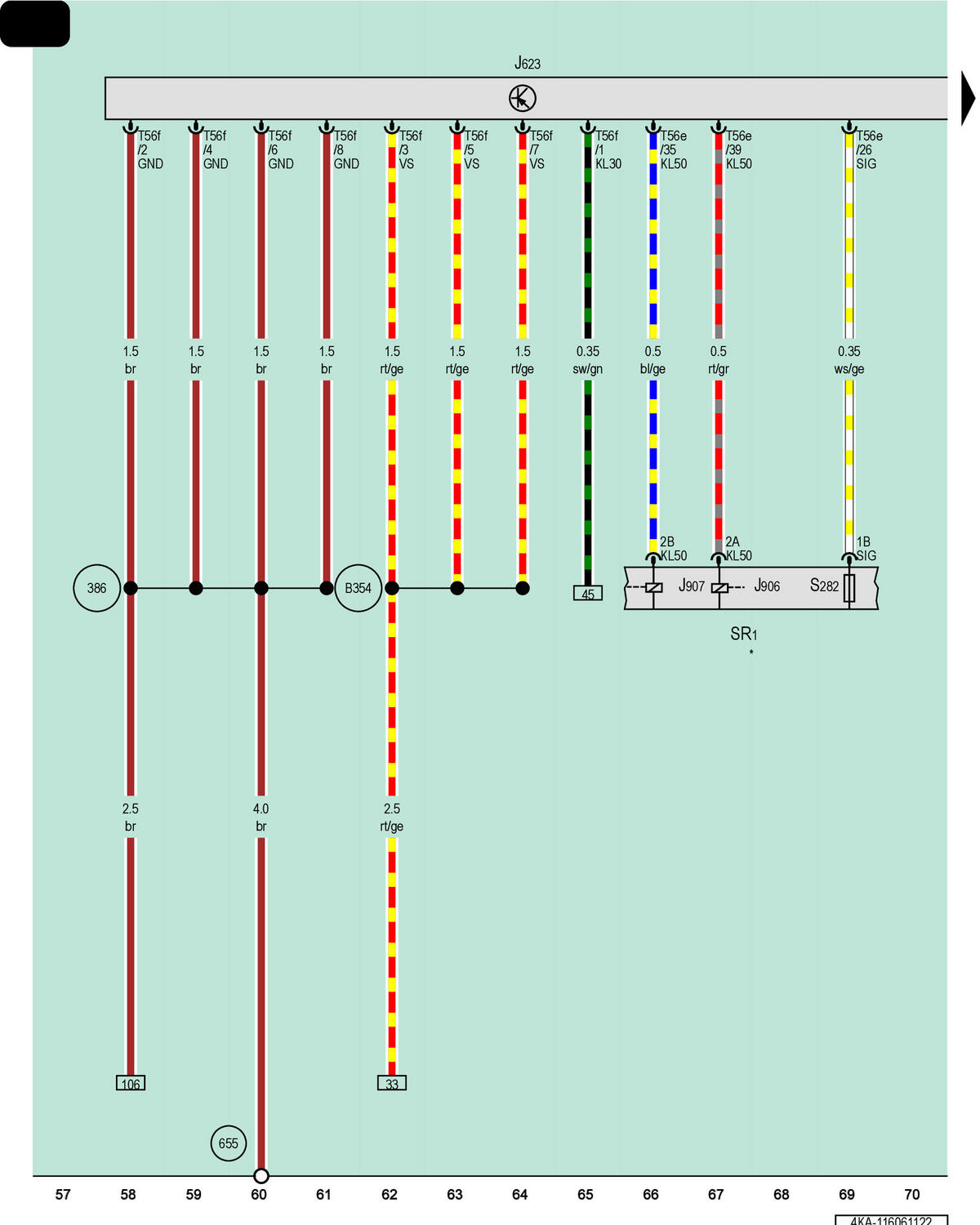

Engine/Motor Control Module, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SR1

Relay and Fuse Panel 1

S282

Engine Electronics Fuse

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

386

Ground Connection 21 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

B354

Positive Connection 5 (87a) (in Main Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram
