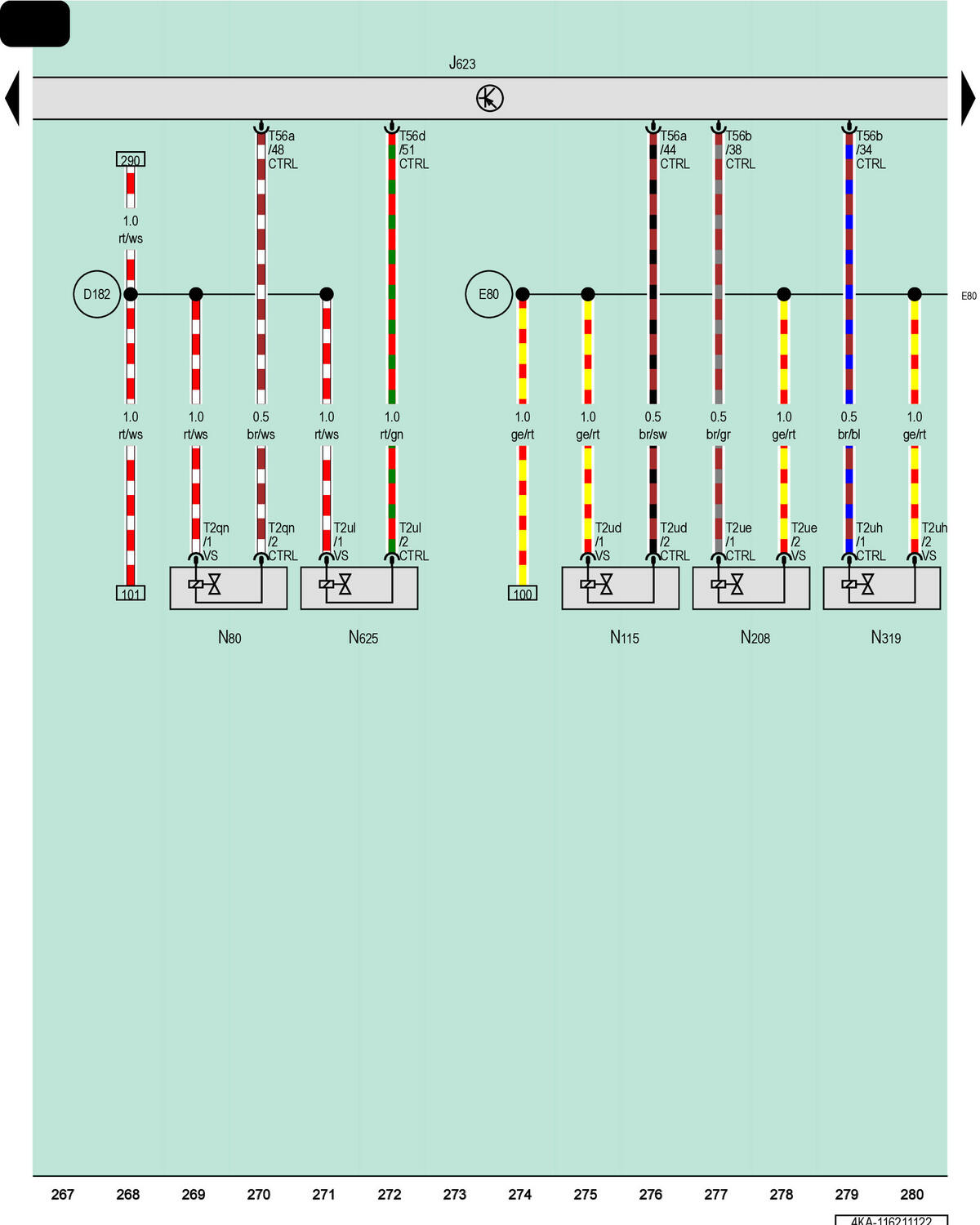

Engine/Motor Control Module, EVAP Canister Purge Regulator Valve 1, EVAP Canister Purge Regulator Valve 2, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 2, RECIRCULATION Valve, Bank 1

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

N80

EVAP Canister Purge Regulator Valve 1

N115

EVAP Canister Purge Regulator Valve 2

N208

Camshaft Adjustment Valve 2

N319

Exhaust Camshaft Adjustment Valve 2

N625

Recirculation Valve, Bank 1

T2qn

2-Pin Connector, Black

T2ud

2-Pin Connector, Black

T2ue

2-Pin Connector, Black

T2uh

2-Pin Connector, Black

T2ul

2-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

D182

Connection 3 (87A) (in Engine/Motor Compartment Wiring Harness)

E80

Connection 87a (in Engine Wiring Harness) 4
