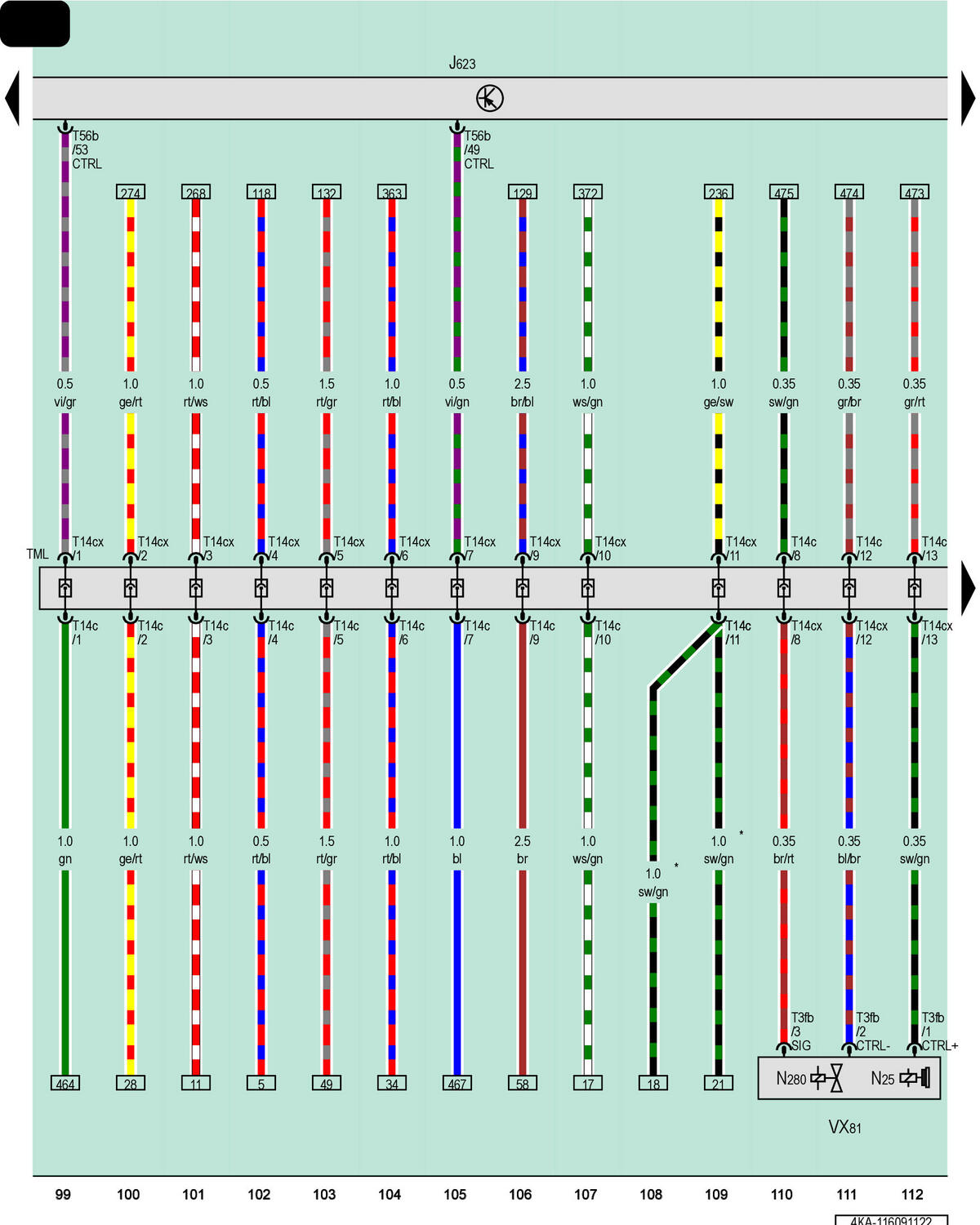

Engine/Motor Control Module, A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

N25

A/C Clutch

N280

A/C Compressor Regulator Valve

T3fb

3-Pin Connector, Black

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T56b

56-Pin Connector, Black, White

TML

Coupling Point in Engine/Motor Compartment, Left

VX81

A/C Compressor

*

Depending on Equipment
