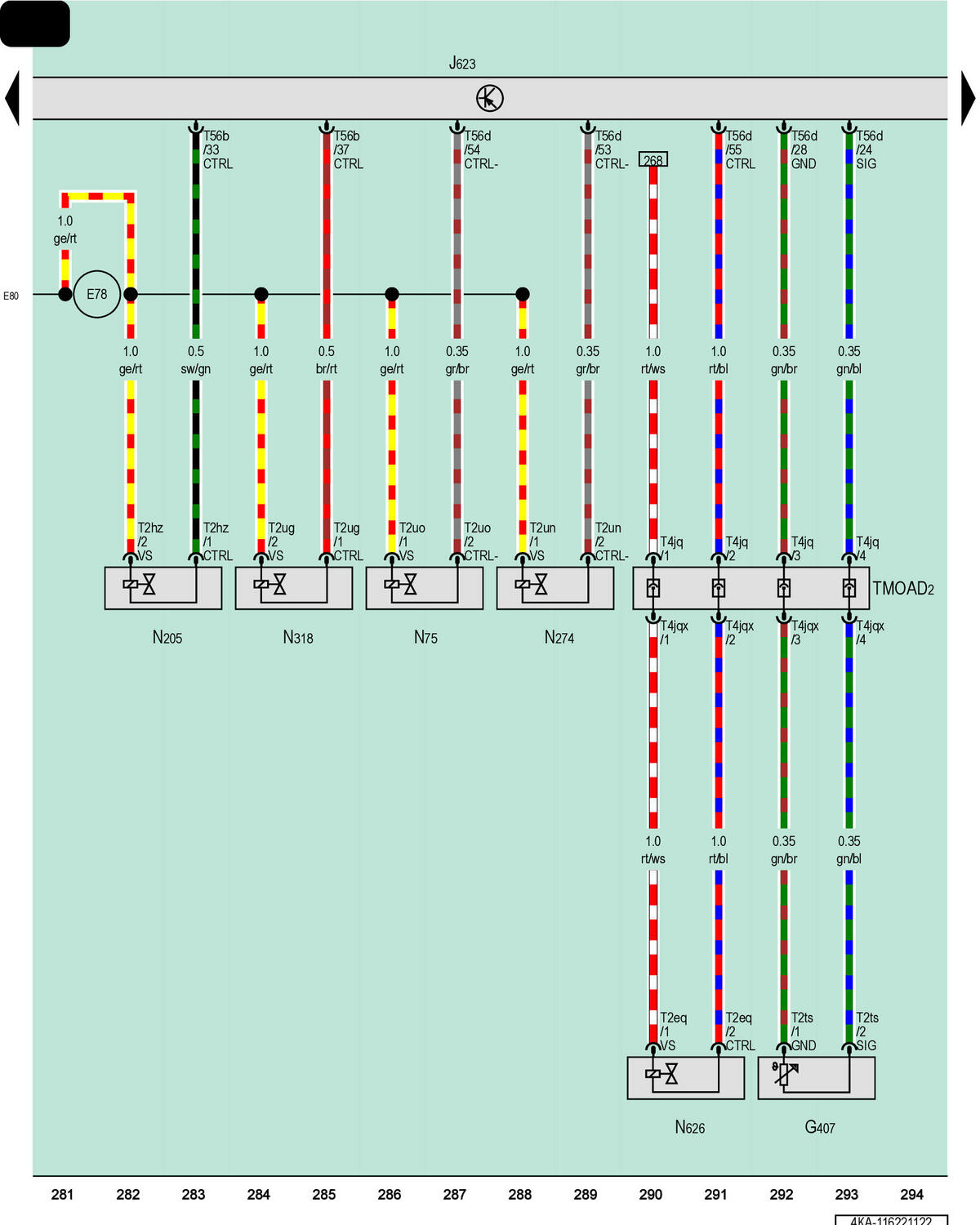

Engine Temperature Sensor, Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Camshaft Adjustment Valve 1, WASTEGATE Bypass Regulator Valve 2, Exhaust Camshaft Adjustment Valve 1, RECIRCULATION Valve, Bank 2

Courtesy of AUDI OF AMERICA, LLC

G407

Engine Temperature Sensor

J623

Engine/Motor Control Module

N75

Wastegate Bypass Regulator Valve

N205

Camshaft Adjustment Valve 1

N274

Wastegate Bypass Regulator Valve 2

N318

Exhaust Camshaft Adjustment Valve 1

N626

Recirculation Valve, Bank 2

T2eq

2-Pin Connector, Black

T2hz

2-Pin Connector, Black

T2ts

2-Pin Connector, Black

T2ug

2-Pin Connector, Black

T2un

2-Pin Connector, Black

T2uo

2-Pin Connector, Black

T4jq

4-Pin Connector, Black

T4jqx

4-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

TMOAD2

Engine Pre-Wiring Coupling Point 2, Adapter Cable

E78

Connection 87a (in Engine Wiring Harness) 2

E80

Connection 87a (in Engine Wiring Harness) 4
