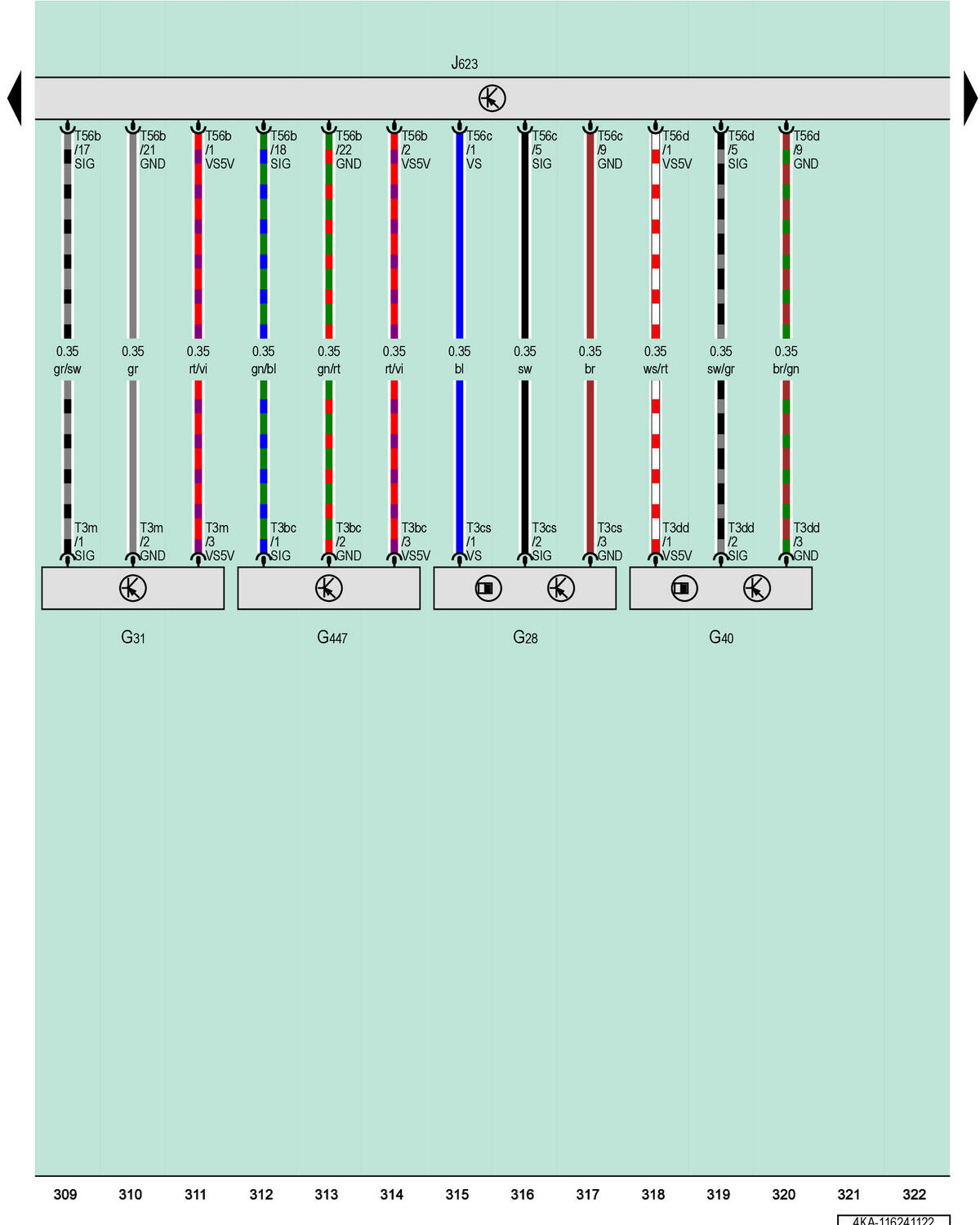

Engine Speed Sensor, Charge Air Pressure Sensor, Camshaft Position Sensor, Charge Air Pressure Sensor 2, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G28

Engine Speed Sensor

G31

Charge Air Pressure Sensor

G40

Camshaft Position Sensor

G447

Charge Air Pressure Sensor 2

J623

Engine/Motor Control Module

T3bc

3-Pin Connector, Black

T3cs

3-Pin Connector, Black

T3dd

3-Pin Connector, Black

T3m

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple
