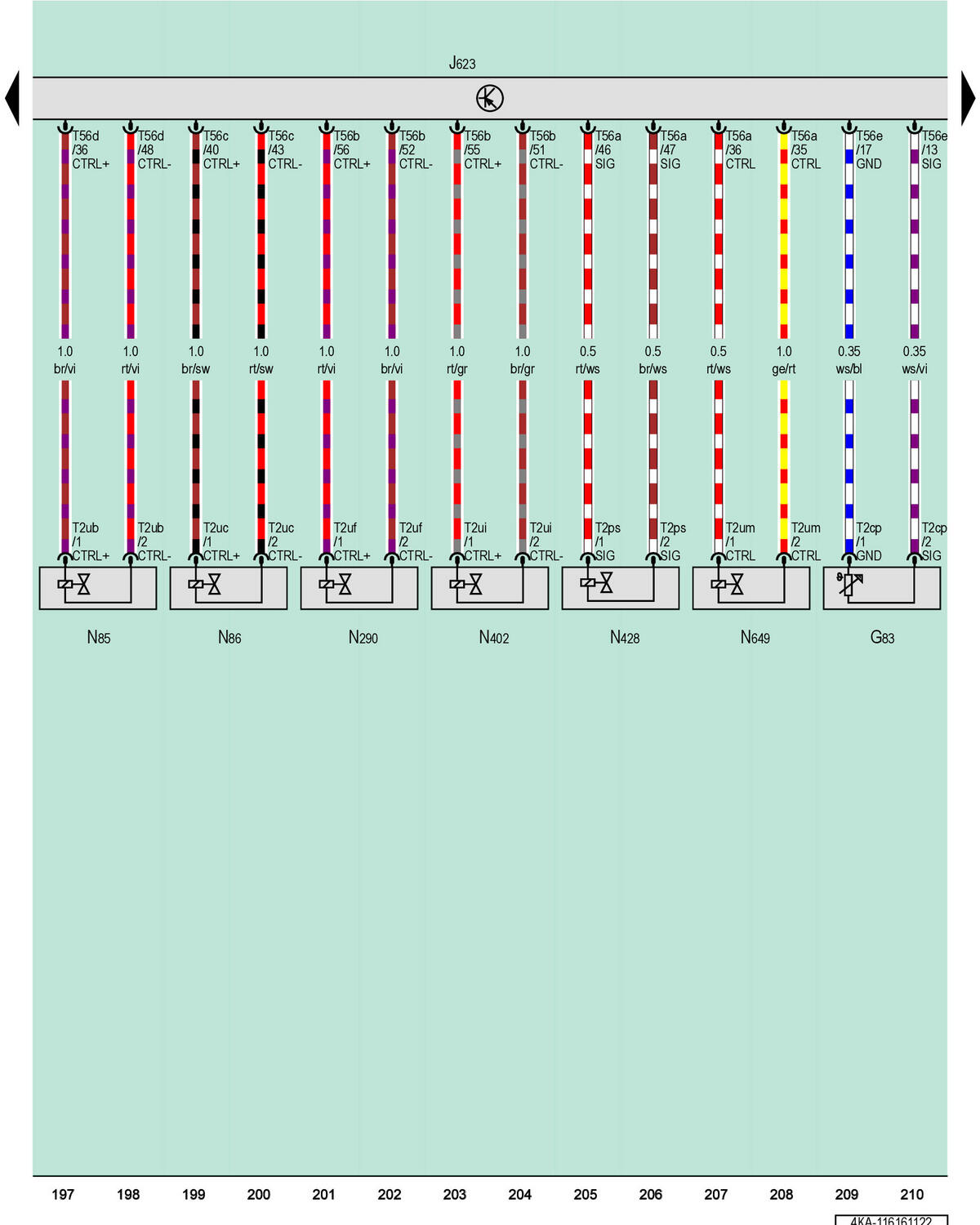

Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module, Cylinder 7 Fuel Injector, Cylinder 8 Fuel Injector, Fuel Metering Valve, Fuel Metering Valve 2, Oil Pressure Regulation Valve, Mechanical Coolant Pump Switch Valve

Courtesy of AUDI OF AMERICA, LLC

G83

Engine Coolant Temperature Sensor on Radiator Outlet

J623

Engine/Motor Control Module

N85

Cylinder 7 Fuel Injector

N86

Cylinder 8 Fuel Injector

N290

Fuel Metering Valve

N402

Fuel Metering Valve 2

N428

Oil Pressure Regulation Valve

N649

Mechanical Coolant Pump Switch Valve

T2cp

2-Pin Connector, Black

T2ps

2-Pin Connector, Black

T2ub

2-Pin Connector, Black

T2uc

2-Pin Connector, Black

T2uf

2-Pin Connector, Black

T2ui

2-Pin Connector, Black

T2um

2-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green
