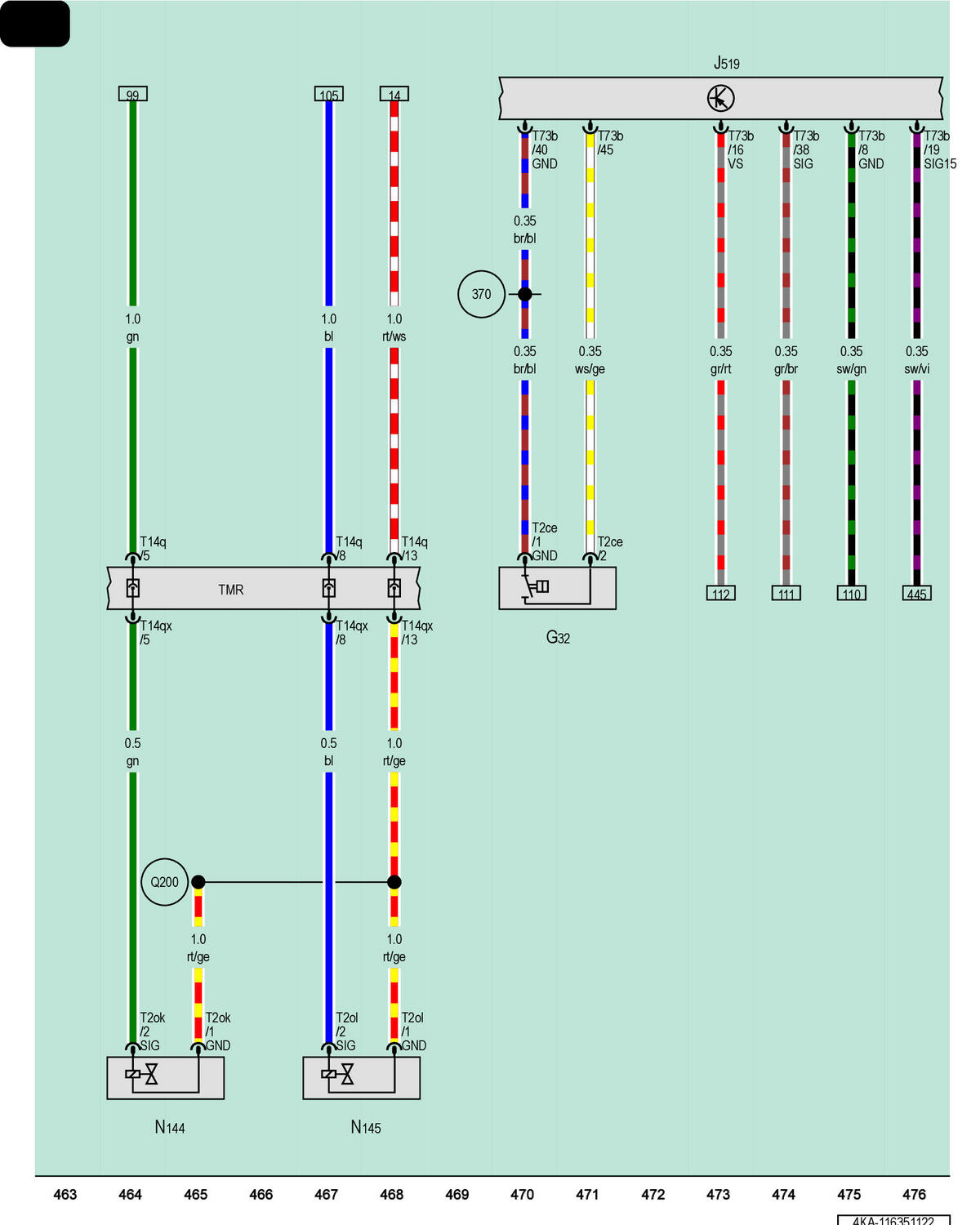

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

G32

Engine Coolant Level Sensor

J519

Vehicle Electrical System Control Module

N144

Left Electrohydraulic Engine Mount Solenoid Valve

N145

Right Electrohydraulic Engine Mount Solenoid Valve

T2ce

2-Pin Connector, Black

T2ok

2-Pin Connector, Naturally Cloudy

T2ol

2-Pin Connector, Naturally Cloudy

T14q

14-Pin Connector, Black

T14qx

14-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

370

Ground Connection 5 (in Main Wiring Harness)

Q200

Connection in Electromechanical Steering Wiring Harness
