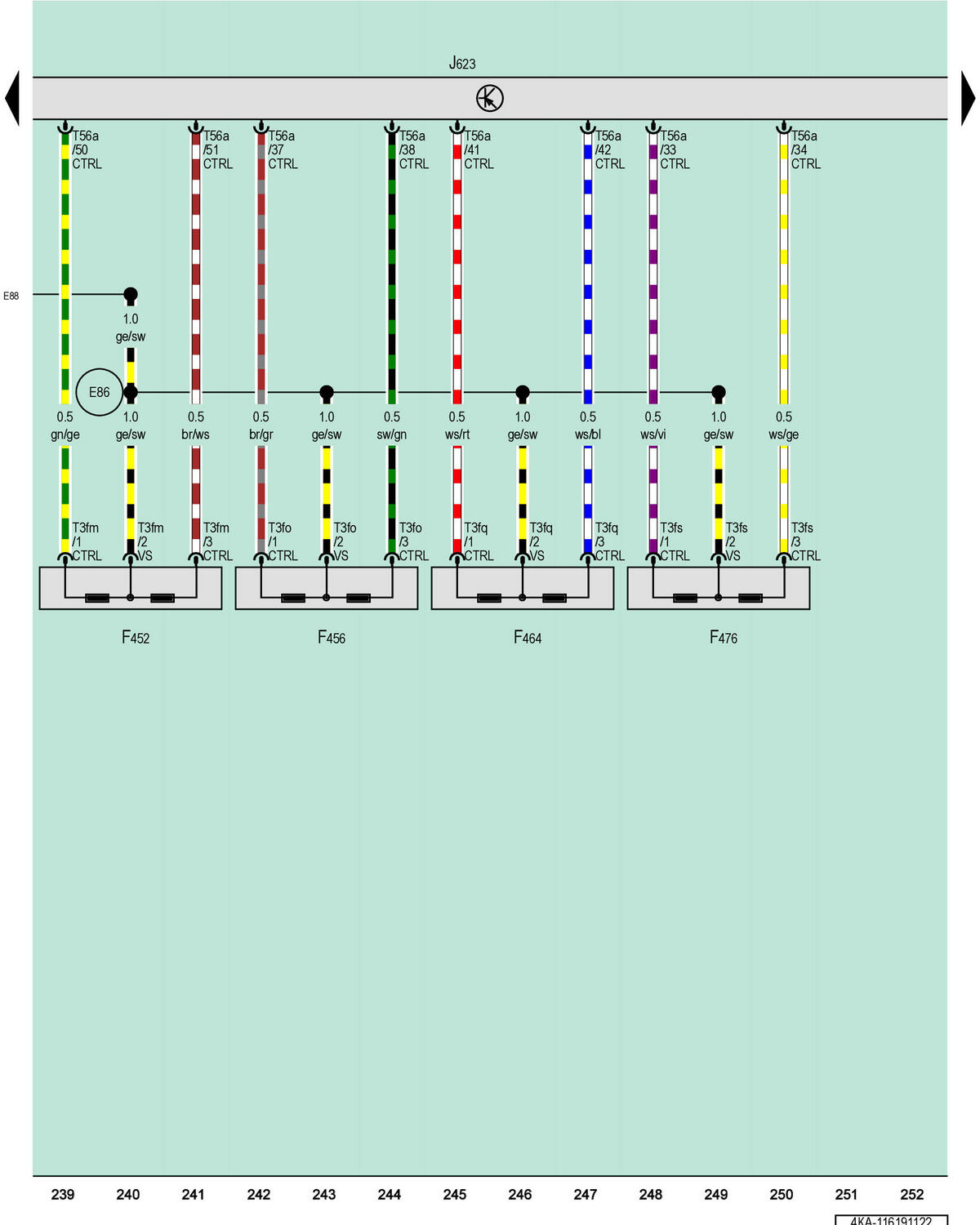

Cylinder 2 Intake Cam Actuator 1, Cylinder 3 Intake Cam Actuator 1, Cylinder 5 Intake Cam Actuator 1, Cylinder 8 Intake Cam Actuator 1, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F452

Cylinder 2 Intake Cam Actuator 1

F456

Cylinder 3 Intake Cam Actuator 1

F464

Cylinder 5 Intake Cam Actuator 1

F476

Cylinder 8 Intake Cam Actuator 1

J623

Engine/Motor Control Module

T3fm

3-Pin Connector, Black

T3fo

3-Pin Connector, Black

T3fq

3-Pin Connector, Black

T3fs

3-Pin Connector, Black

T56a

56-Pin Connector, Black, Black

E86

Connection 87a (in Engine Wiring Harness) 10

E88

Connection 87a (in Engine Wiring Harness) 12
