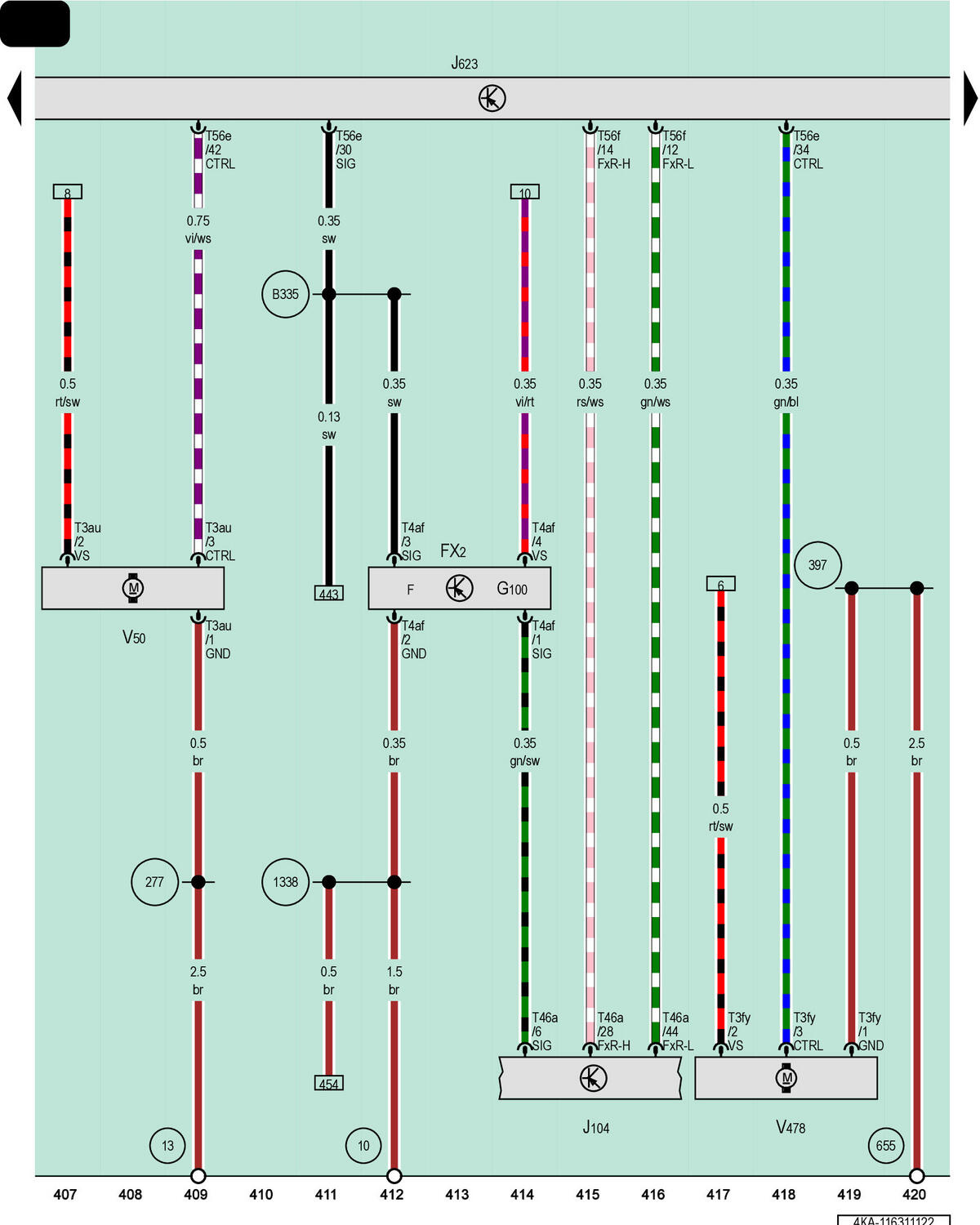

Brake Pedal Switch, Abs Control Module, Engine/Motor Control Module, Coolant RECIRCULATION Pump, Transmission Fluid Cooling Pump

Courtesy of AUDI OF AMERICA, LLC

Brake Lamp Switch

FX2

Brake Pedal Switch

G100

Brake Pedal Position Sensor

J104

ABS Control Module

J623

Engine/Motor Control Module

T3au

3-Pin Connector, Black

T3fy

3-Pin Connector, Black

T4af

4-Pin Connector, Black

T46a

46-Pin Connector, Black

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

V50

Coolant Recirculation Pump

V478

Transmission Fluid Cooling Pump

Ground Connection in Plenum Chamber

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

397

Ground Connection 32 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

1338

Ground Connection 40 (in Main Wiring Harness)

B335

Connection 54 (in Main Wiring Harness) 1
